SECTION 3 - CHASSIS & TURNTABLE

3-62

– JLG Lift –

3121616

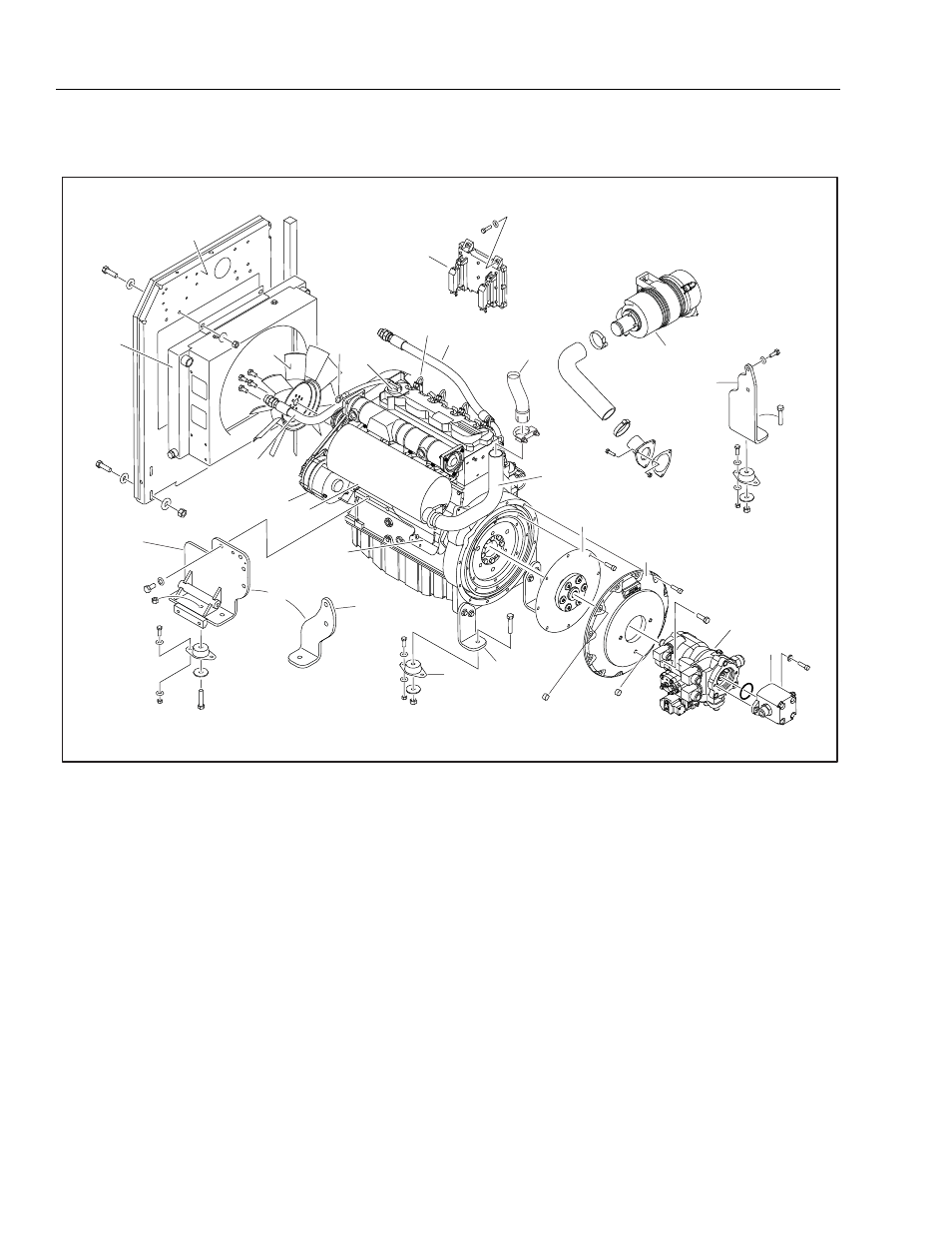

Figure 3-78. Deutz Engine Installation - Sheet 1 of 2

106. Gear Pump
112. Piston Pump
218. Fan
220. Oil Cooler Hose
224. Engine Mount
230. Radiator

245. Air Cleaner
254. Radiator Mounting Plate
248. Right Rear Engine Mounting Plate
249. Left Rear Engine Mounting Plate
255. Exhaust Pipe
301.Coupling

302. Pump Adapter Plate
401. Dipstick
402. Oil Filler Cap
405. Fuel Injector
411. Alternator
412. Starter

421. Control Module
428. Muffler
511. Right Front Engine Support
611. Exhaust Pipe Extension
