Section 3 - Controls and Indicators
3-2 31200753
3.2 CONTROLS
1. Park Brake: See page 3-11.
2. Accelerator Pedal: Pressing down the pedal increases engine and hydraulic
speed.
3. Service Brake Pedal: The further the pedal is depressed, the slower the travel
speed.
4. Ignition Switch: Key Activated. See page 3-10.
5. Front Console Switches: See page 3-24.
6. Transmission Control Lever (if equipped): See page 3-12.
7. Steering Column Adjuster: See page 3-16.
8. Steering Wheel: Turning the steering wheel to the left or right steers the
machine in the corresponding direction. Three steering modes are available.
See “Steer Modes” on page 3-30.
9. Instrument Panel: See page 3-4.

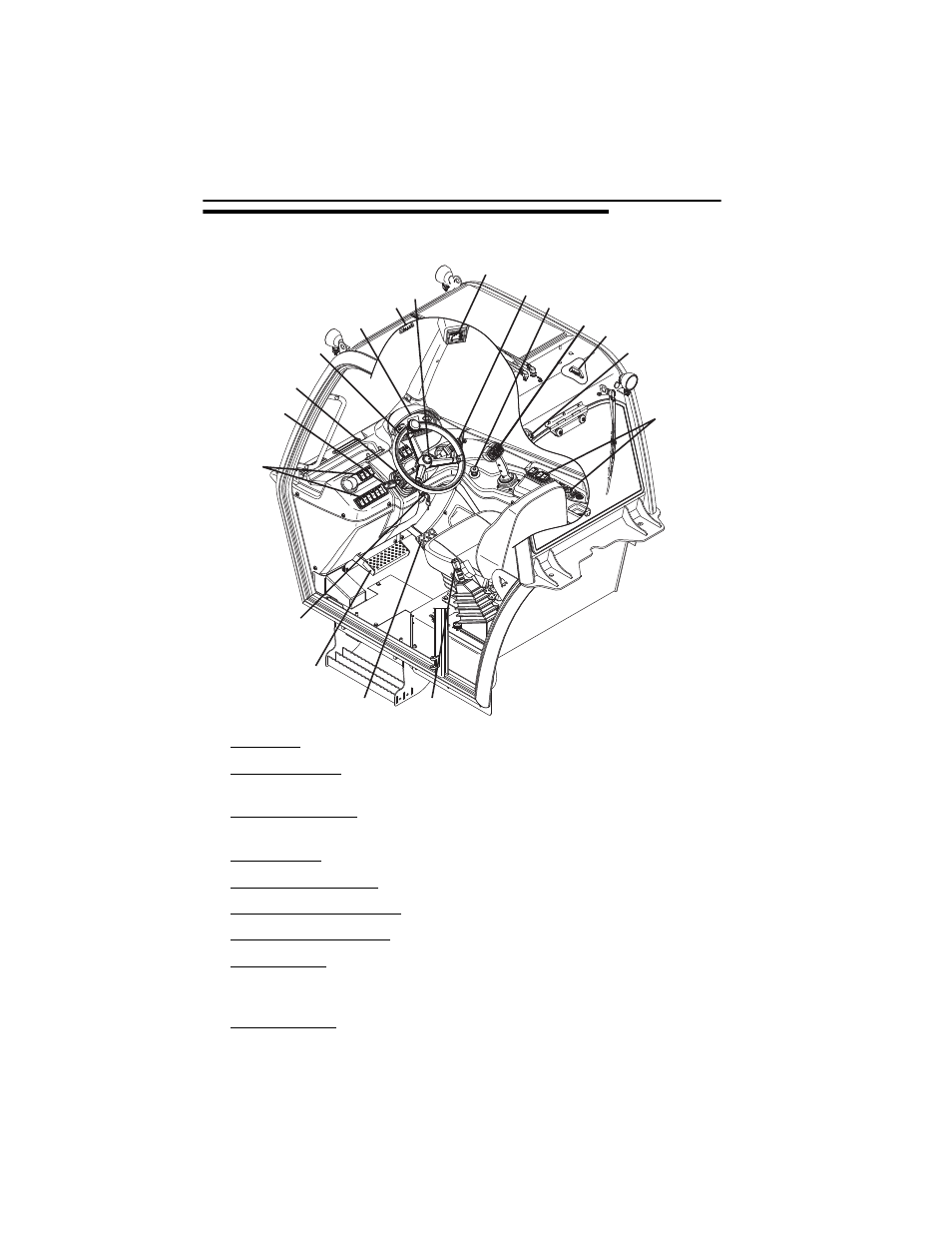

OZ3811
