Operating controls and function
New Brunswick
™
Excella
®
E-24 Shaker
English (EN)
23
6
Operating controls and function
6.1
Control panel
The control panel consists of the status indicators, LED display, function indicators, and the user interface
keys.

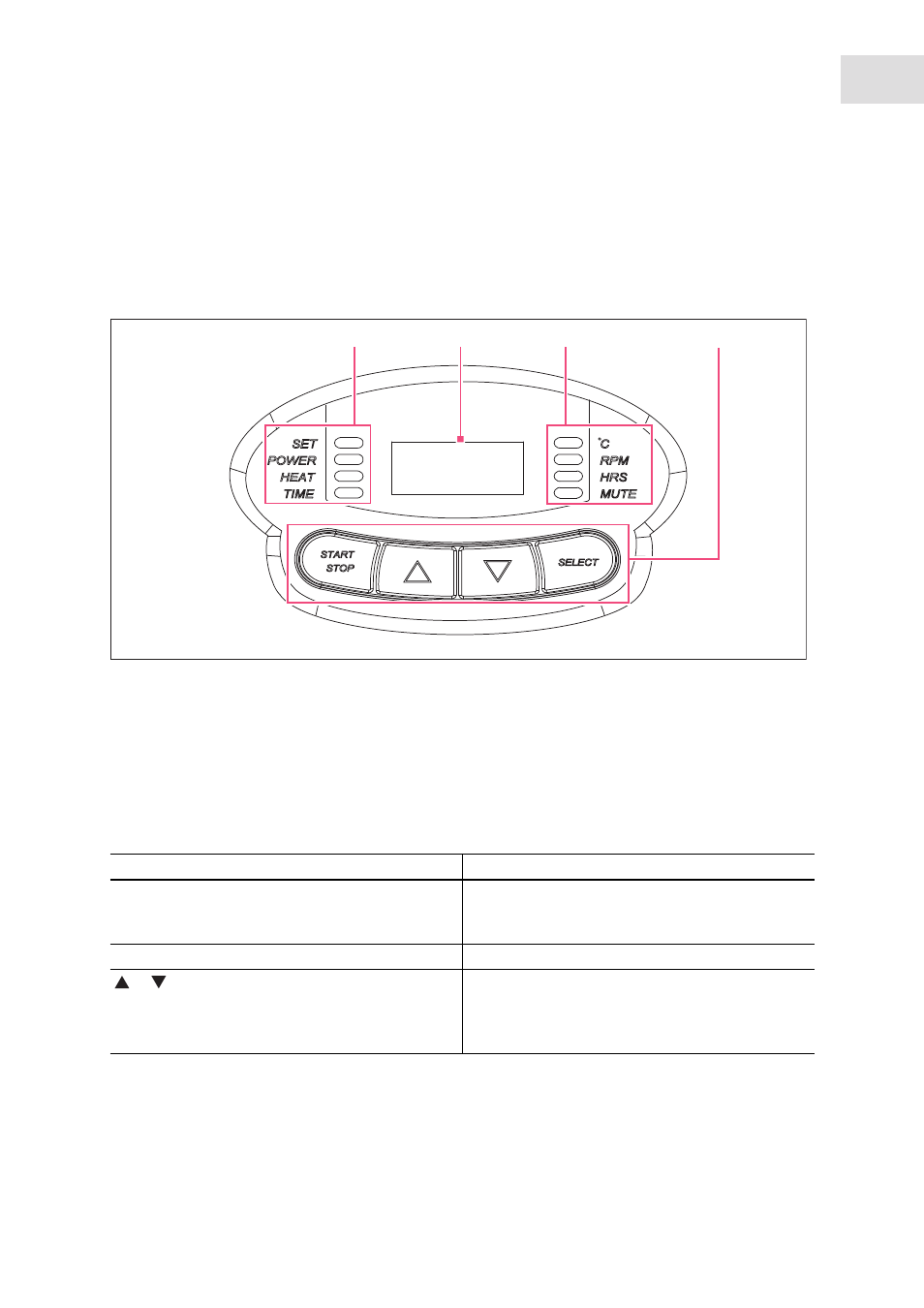

Abb. 6-1: Control panel
Fig. 6-1:
Control panel
6.1.1
User interface keys
1
Status indicators
2
LED display
3
Function indicators
4
User interface keys
Key
Description
START/STOP
• Starts and stops the shaker
• Starts and stops the timer when a timed run is
desired.
SELECT
• Used to change the displayed parameter
or
• Used to adjust the setpoint of a displayed
parameter up or down
• They also allow the user to enter the SET mode
for setpoint changes
4
1
2
3
