Installation
New Brunswick
™
Excella
®
E-24 Shaker
English (EN)
14
4.4
Installation of platform
The shaker is shipped with 4 Allen head platform screws (circled in red, (see Fig. 4-1 on p. 14)) installed in
the 4 bearing housing uprights. The screws must be removed before a platform can be installed.

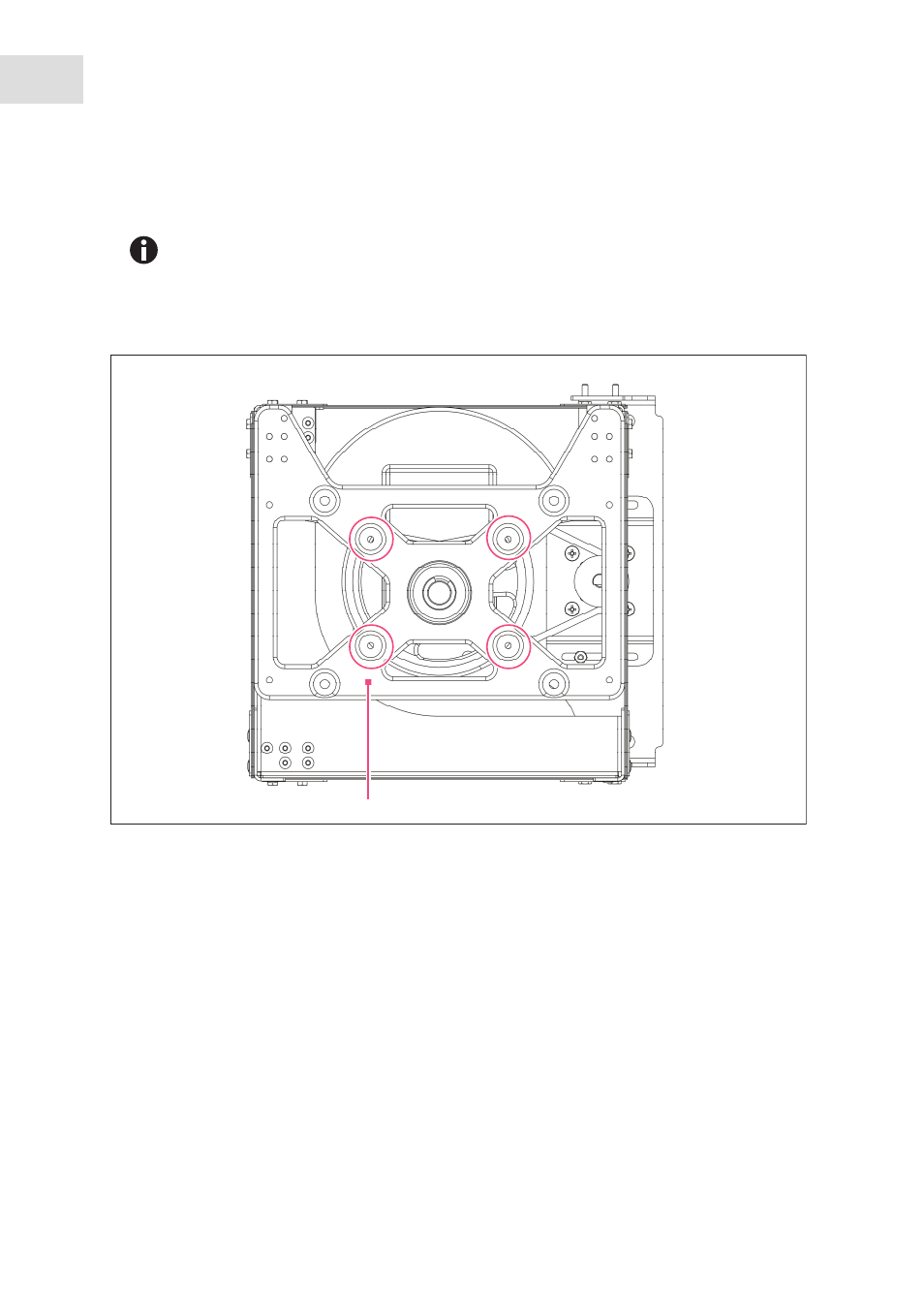

Abb. 4-1: Platform screw locations
Fig. 4-1:
Platform screw locations
1. Remove the 2 small plastic straps that secure the bearing housing in place for shipping.
2. Using the 7/32 in hex key provided, remove the 4 Allen head platform screws (circled in red, (see
Fig. 4-1 on p. 14)) from the subplatform.
Save the screws for later use.
3. Place the selected platform on the subplatform. Align the mounting holes of the platform with the
platform screw locations in the subplatform.
4. Insert the 4 Allen head platform screws removed in step 2. Tighten them with the 7/32 in hex key to
secure the platform.
A platform must be installed prior to use.
