Page 16

Installation
New Brunswick
™
Excella
®
E-24 Shaker
English (EN)
16

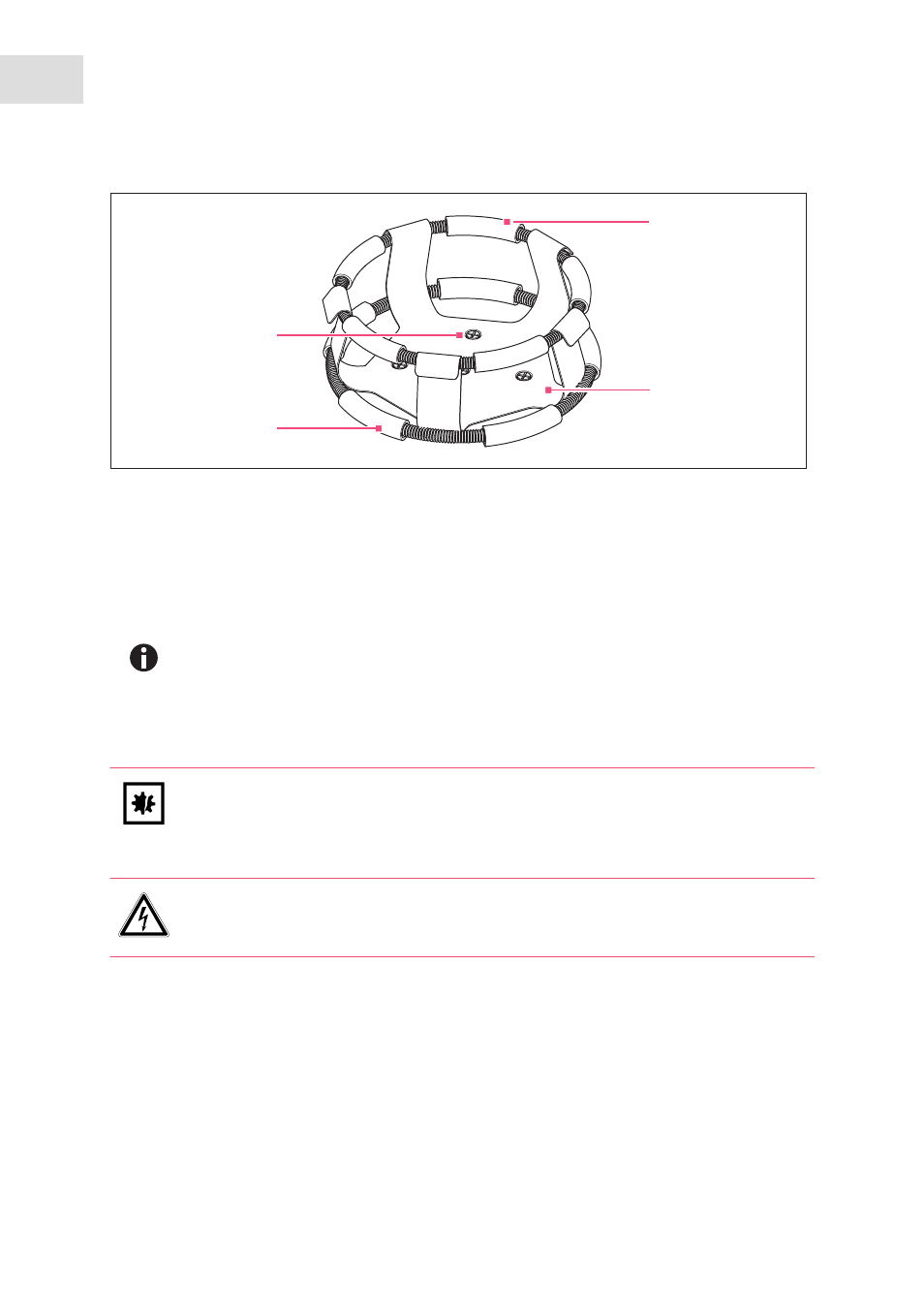

Abb. 4-3: Double girdle clamp installation
Fig. 4-3:
Double girdle clamp installation
4.6
Electrical connections
1. If you have not already done so, check that the voltage and frequency of your incubator shaker are
compatible with your mains/electric supply.
2. Remove the caution label from the rear of the unit.
3. Set the on/off switch to the off position.
ONLY THEN:
4. Plug the mains/power cord into an earthed/grounded electrical outlet.
1
Upper girdle with girdle tubes
2
Clamp body (legs and base)
3
Lower girdle with girdle tubes
4
Clamp mounting holes
Quantity: 5
The upper girdle secures the flask within the clamp, and the bottom girdle keeps the flask
from spinning.
NOTICE! Risk of material damage
An earthed/grounded electrical outlet is necessary for the safe operation of this
instrument.
CAUTION! Risk of electrical hazard
Before making electrical connections, be sure to check the following list.
1
4
2
3
