KIT CONSISTS OF:
No. Qty Part No. Description
ADVANCE ADAPTERS INC. P/N: 50-5040
P.O. Box 247, 4320 Aerotech Center Way New Item: (06/05)
Paso Robles, CA 93447 PAGE 1 OF 5
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 06-05-13
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to
any of the components will void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be
required to complete your conversion, we strongly recommend that you contact our sales department for more information. This instruction sheet
is only to be used for the assembly of Advance Adapter components. We recommend that a service manual pertaining to your vehicle be obtained
for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive dealerships and parts
stores.
1. 1 300619 RELUCTOR SENSOR
2. 3 300386 SET SCREWS
3. 1 300476 YOKE NUT
4. 1 300502 SEAL
5. 1 716380 VSS TAILHOUSING RING
6. 1 716381 VSS MOUNTING BLOCK
7. 1 716383 PIGTAIL FOR VSS SENSOR
8. 2 721401 8-32 x 1.5" S.H.C.S.
9. 1 721402 8-32 x .625 S.H.C.S.
THE FOLLOWING ASSEMBLED BY AA:
10. 1 716382 MODIFIED RELUCTOR RING
11. 1 716385 MODIFIED YOKE

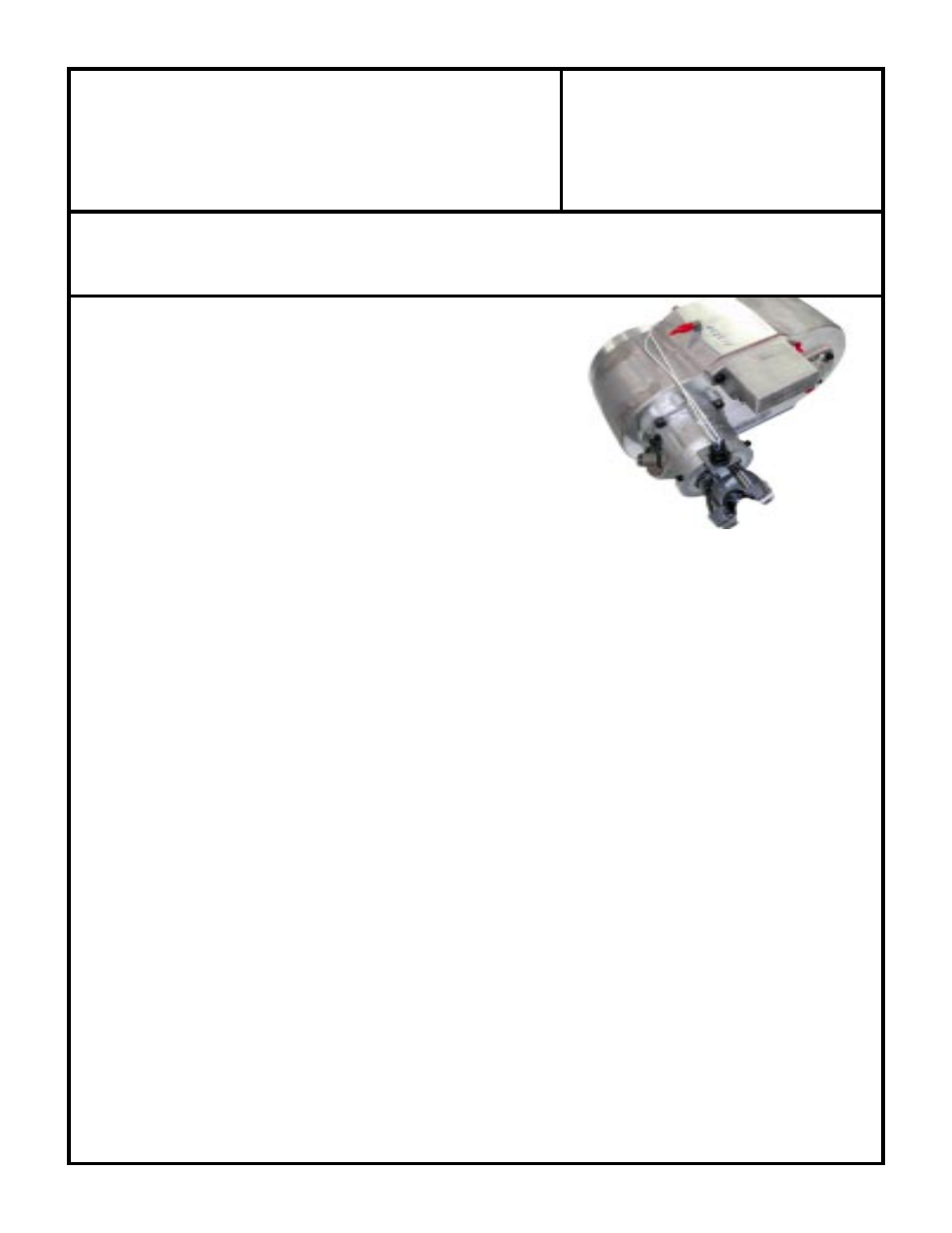

1310 NON CV VSS
TAILHOUSING RELUCTOR KIT
WARNING:
Please read all instructions carefully. If the instructions are not followed, damage to powertrain parts and supplied kit
parts will occur. Please also note: This kit is intended to fit only Advance Adapters 32 spline output shaft upgrade kits.
Please do not try to fit onto any components other than specified. This kit should only be used with non-computer
controlled transmissions. When retrofitting a 4L60E/4L80E, the VSS should be located between the transmission and
the transfer case, otherwise shifting problems will exist when in low range. Feel free to contact Advance Adapters at
any point or if you have difficulties (1-800-350-2223).
GENERAL INFORMATION:
This kit is intended to retrofit a stock GM VSS sensor onto a powertrain when a '93 through current GM engine is used.
When a computer controlled engine is swapped into a vehicle, there are a variety of transmissions which can be used.
Regardless of which transmission is used, this kit will retrofit the sensor to the transfer case tailhousing. When fitted
with an Advance Adapters output shaft, the specific transfer cases include the Dana 20, Dana 300, New Process 231,
and the Atlas transfer case. Since this kit is a true retrofit, the stock speedometers found in these tailhousings will remain
functional; this allows both the stock gauge and the late model VSS be functional on the same vehicle. This also allows
the tire size and gear ratio to be compensated so that the gauge reads correctly and the computer for the engine also
reads correctly.
With the VSS operational, the engine can determine how fast the vehicle is traveling. The late model engines can take
the VSS signal and use it to adjust for freeway driving, apply corrected fuel economy, and calculate the best performance
NP231 WARNING: The seal provided in the kit
will not work in an S.Y.E. kit. If using an S.Y.E. kit,
please retain the existing seal (if originally a CV),
contact Advance Adapters for P/N 716751, or use
P/N CR 18662 for a local replacement.
