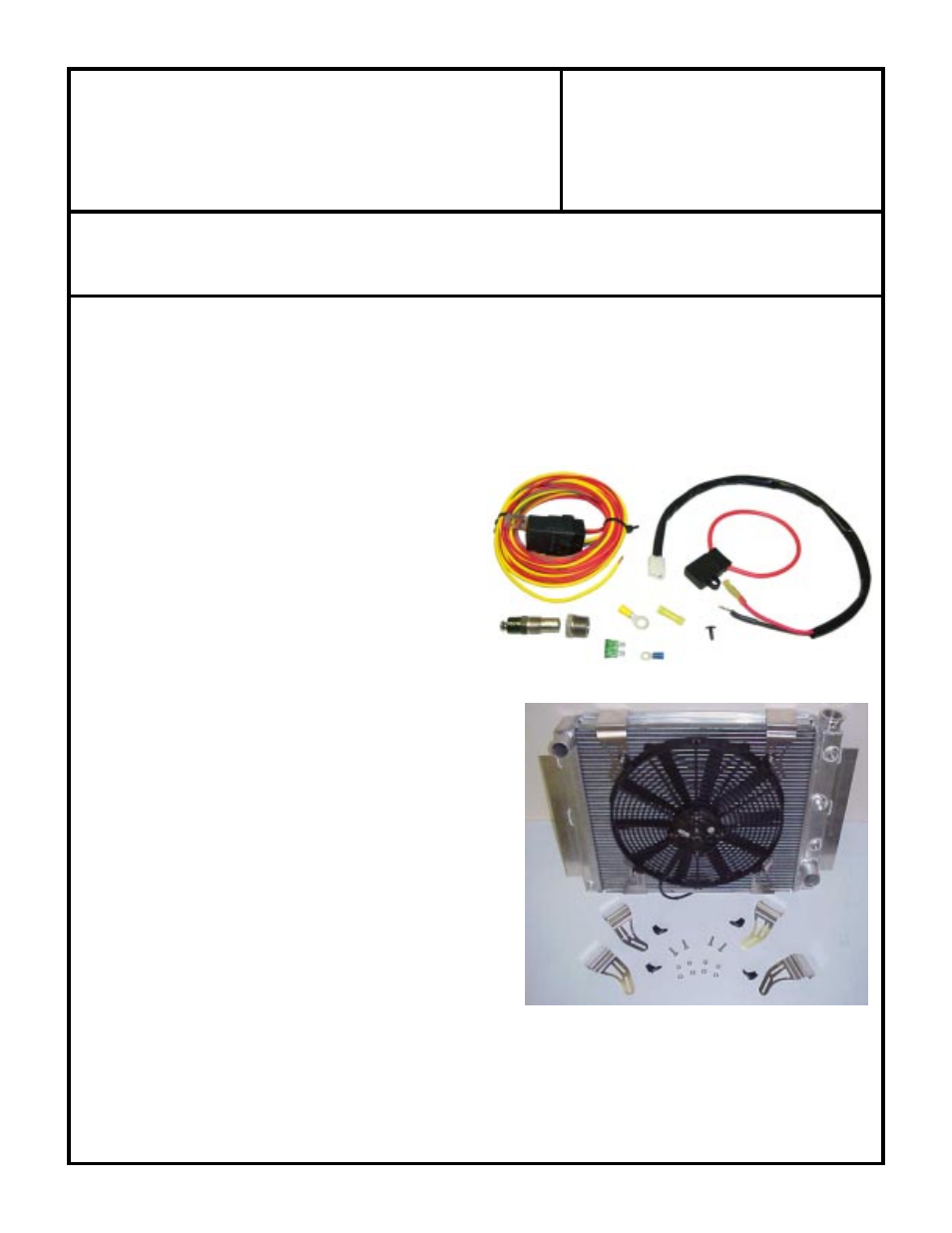

WIRE HARNESS- Part # 716678
SPAL THERMOSTAT WIRING HARNESS
The SPAL fan wiring harness was designed to allow for simple installation with all SPAL performance fans. It is compatible with both
positive and negative ground vehicles without requiring modifications. The 3/8" pipe thread sending unit is designed to turn the fan on at
185° and off at 170°.
Kit Includes:
Fan Relay Harness (FRH) consisting of a high-quality wiring harness with labeled cables
185° OE-type thermostat with a Packard Weather Pack connector
Installation instructions
Hella 40-Amp relay
Fuse holder
All necessary hardware
ADVANCE ADAPTERS INC. P/N: 716670
P.O. Box 247, 4320 Aerotech Center Way
Paso Robles, CA 93447
PAGE 2 OF 4
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 08-09-13
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components
will void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we
strongly recommend that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter
components. We recommend that a service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment.
These manuals are normally available at automotive dealerships and parts stores.
MOUNTING BRACKET KIT- Part # 716677
Kit contents: 4 rubber grommets
4 carriage bolts, nuts, and washers
4 Spal fan clips
4 aluminum mounting brackets
*Mounting brackets can be used for copper/brass radiators upon
request. This universal set requires the customer to bend the brackets
themselves to fit over the tanks or core plate for fitment. These
brackets are designed to fit the 16” Spal fan only.
Please note: The Toyota truck aluminum radiator does require
a special mounting bracket.
SPAL 16" PULLER FAN KIT
