4.

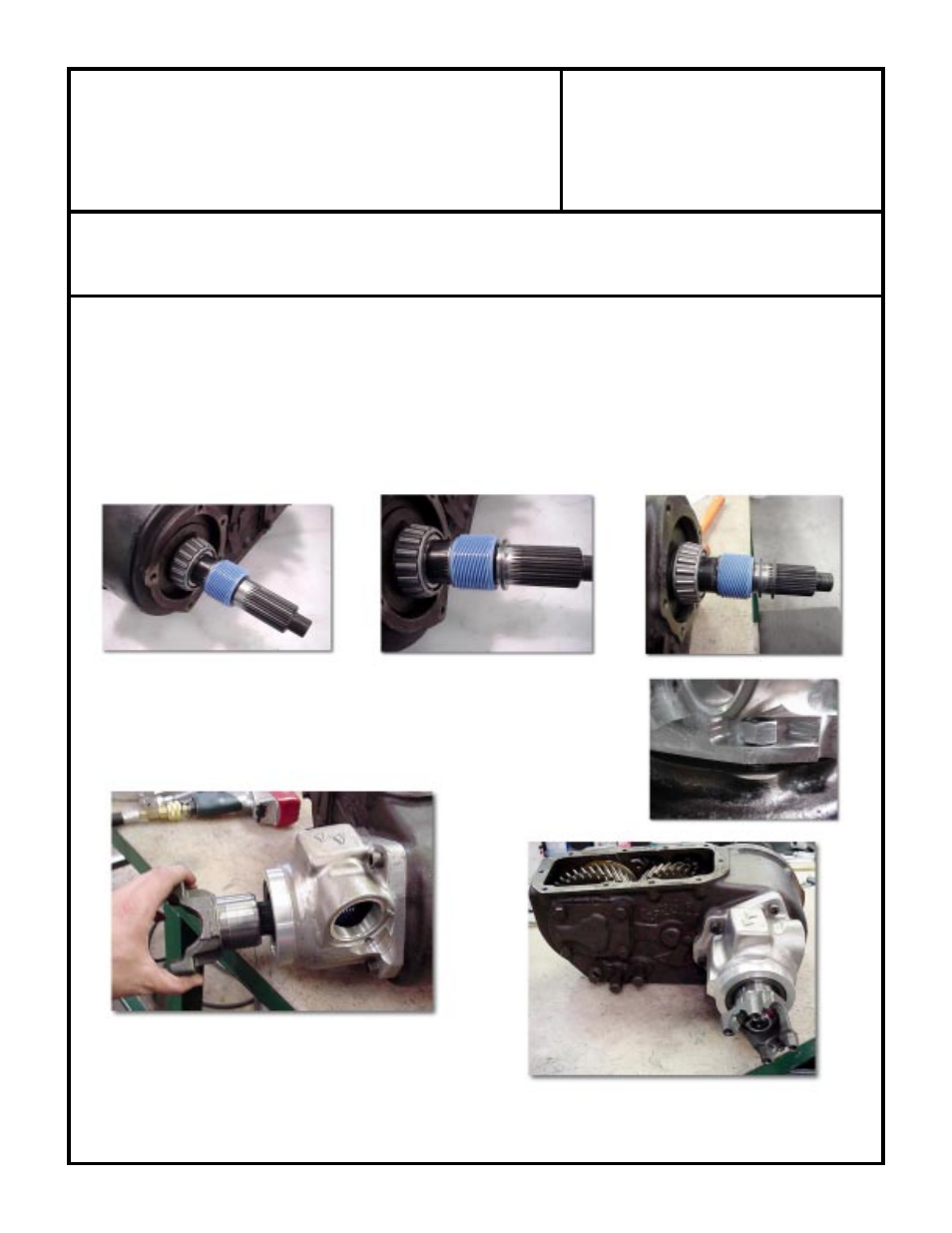

Once the bearing is in place, install the speedometer snap ring and blue speedometer gear. Install the shim race provided
in this kit ONLY. This kit's shim race has been matched for this specific output shaft & tailhousing. The shim has
a small internal chamfer which fits up against the shoulder of the shaft. Make sure this is installed properly. A stud
bolt must be installed and locktite into the bottom left tailhousing hole of the transfer case. Make sure the bolt does
not go to far into the case and interfere with the Dana 300 gear. Let the locktite dry before installing the new tailhousing.
As the tailhousing is being installed the 3/8-16 nut must be set into the clearance pocket on our tailhousing and installed
onto the stud bolt as the tailhousing is put onto the Dana 300 case. Install the other 4 bolts to secure the tailhousing
onto the Dana 300 case.
5.
A very small amount of RTV blue silicone should be used on the tailhousing mating surface to the Dana 300 case.
6.
Reinstall the front retainer assembly onto the Dana 300.
7.
Install the 1310 non-C.V. yoke, silicone on the yoke splines and nut.
Torque to 150 ft./lbs.
8.
Turn the yoke to make sure the unit is not bound up or is not binding.
ADVANCE ADAPTERS INC.
P/N: 50-3034A
P.O. Box 247, 4320 Aerotech Center Way
New Item: (01-02)
Paso Robles, CA 93447
PAGE 4 OF 6
Telephone: (800) 350-2223
Fax: (805) 238-4201
Page Rev. Date:
01-17-02
SPECIAL NOTE:
The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will
void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend
that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a
service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive
dealerships and parts stores.
EEP & SCOUT D300 T/C SHORT TAILHOUSING 32
SPLINE OUTPUT WITHOUT A YOKE
