ADVANCE ADAPTERS INC. P/N: 715572
P.O. Box 247, 4320 Aerotech Center Way New Item: (8/02)
Paso Robles, CA 93447 PAGE 1 OF 4
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 03-17-11
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will
void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend
that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a
service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive
dealerships and parts stores.
KIT CONSITS OF:
No: Qty Part No. Description
TOYOTA L/C TRANSFER CASE TWIN STICK
1. 1 Kit 715570M MODE SHIFTER HANDLE
(Kit Consists of 715586A, 715577, 715588)
2. 1 Kit 715570R RANGE SHIFTER HANDLE
(Kit Consists of 715586A, 715575)
3. 1 715576 T/C HIGH LOW SHIFTER LEVER
4. 1 715579 PIVOT SHAFT
5. 2 715580 3/8"-24 BALL JOINT (High/Low linkage)
6. 1 715581 5/16"-24 BALL JOINT (Mode shift handle)
7. 1 715582 5/16"-24 MALE HEIM JOINT
8. 2 715583 SHIFT KNOB
9. 1 715585 TRANSFER CASE MODE SHAFT
10. 1 715589 CLEVIS PIN
11. 1 715590 COTTER PIN
12. 4 **715591 (FJ4404) PIVOT BUSHING
13. 1 723101 5/16"-18 NUT (Pivot pin)
14. 1 723103 5/16" LOCK WASHER
15. 1 723122 5/16" FLAT WASHER (Pivot pin)
16. 1 723131 5/16"-24 JAM NUT (Mode link)
17. 2 723719 3/8"-24 JAM NUT(High/Low link)
18. 1 723769 3/8"-24 SET SCREW (High/Low shift lever)
19. 1 723770 3/8"-24 x 7.5" ALL THREAD (High/Low link)
20. 1 302060 TWIN STICK BOOT
21. 1 302063 BOOT RING
22. 2 303121 1/2"-13 JAM NUT (Shift Knobs)
**715591 IS A PRESS FIT INTO THE PIVOT BLOCK
NOTES:
This assembly will require the installation of a new mode
shaft into the transfer case. Refer to the exploded assembly
view on the following pages for part identification and part
assembly.
APPLICATIONS:
1) Stock 6 cylinder with stock 4 speed
transmission.

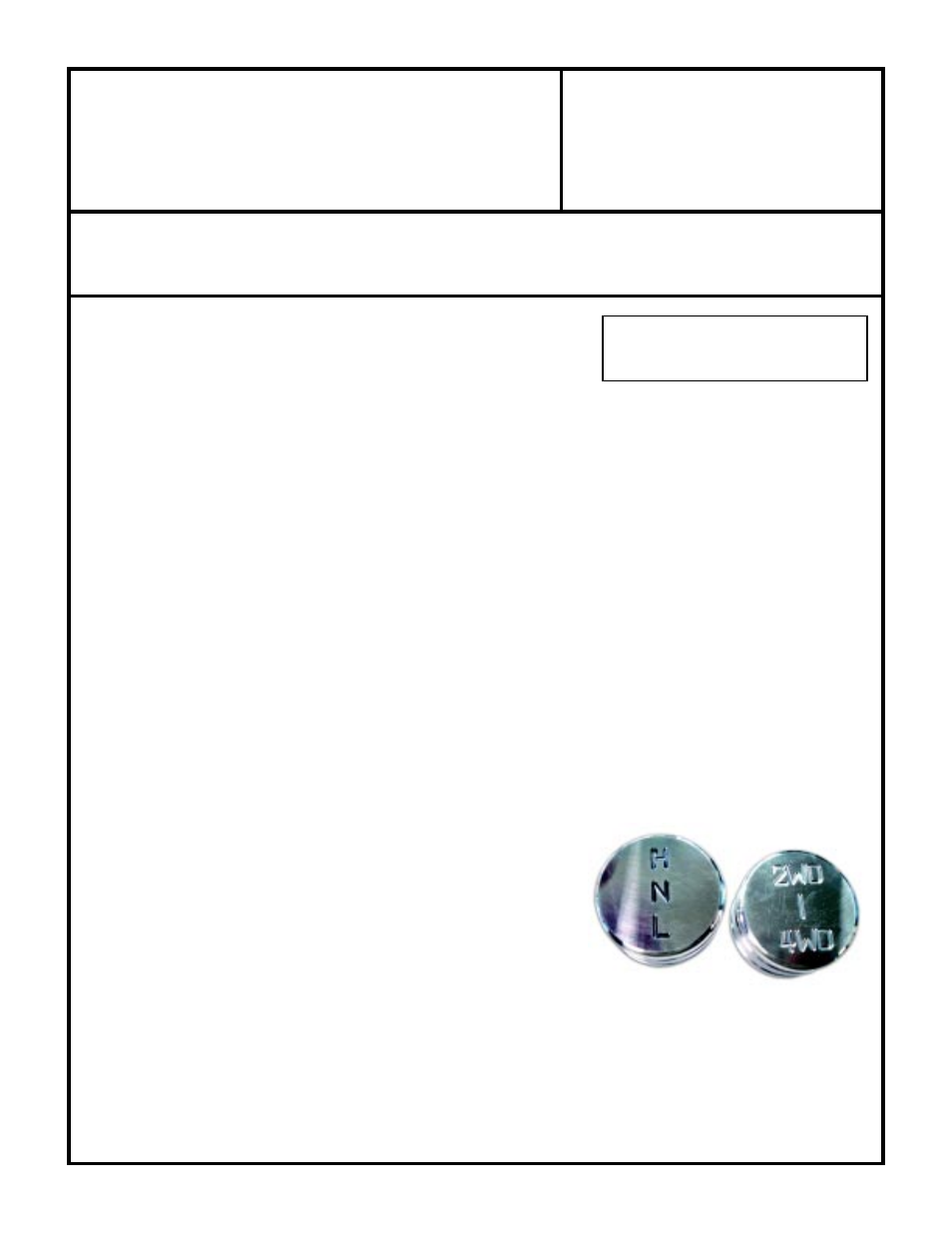

We do offer aluminum shifter knobs for the
Toyota twin stick kits. These knobs are
sold separately under Part No. 715584 at a
price of $42.95
