ADVANCE ADAPTERS INC. P/N: 715569
P.O. Box 247, 4320 Aerotech Center Way New Item: (8/02)
Paso Robles, CA 93447 PAGE 1 OF 4
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 11-14-14
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will
void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend
that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a
service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive
dealerships and parts stores.
KIT CONSITS OF:
No: Qty Part No. Description
TOYOTA L/C FJ60/62TRANSFER CASE
TWIN STICK UNIVERSAL KIT
1. 1KITS 715568M MODE SHIFTER HANDLE (WELDED) FJ60
(Kit Consists of 715586A, 715577, 715588E)
2. 1 Kit 715570R RANGE SHIFTER HANDLE
(Kit Consists of 715586A, 715575)
3. 1EACH 302060 BOOT- TWIN STICK
4. 1EACH 302063 BOOT RING- ATLAS TWIN STICK
5. 1EACH 302203 ROD END-FEMALE 5/16" RH
6. 2EACH 303121 NUT-1/2-13 HX JAM BLACK ZINC
7. 1EACH 715576 T-CASE HI/LOW SHIFT LEVER
8. 1EACH 715579 TLC TWIN STICK PIVOT SHAFT
9. 2EACH 715580 ROD END-FEMALE 3/8"-24 W/STUD HIGH/LOW SHIFT
10. 1EACH 715582 ROD END-MALE 5/16"-24 RH PTFE
11. 1EACH 715583 KNOB-BLACK SHIFT HIGH/LOW
12. 1EACH 715583A KNOB-BLACK SHIFT 2WD/4WD
13. 1EACH 715585A SHAFT- TOYOTA SPLIT CASE TWIN STICK MODE
14. 1EACH 715589 CLEVIS PIN 5/16" x 1-1/8" LONG
15. 1EACH 715590 COTTER PIN 3/32" X 1"
16. 4EACH 715591 BUSHING-TWIN STICK PIVOT
17. 1EACH 723101 NUT 5/16"-18 PLATED
18. 1EACH 723103 LOCK WASHER 5/16" PLATED
19. 1EACH 723122 USS PLATED 5/16 FLAT WASHER
20. 1EACH 723131 5/16"-24 HEX JAM NUT zinc
21. 2EACH 723719 HEX JAM NUT 3/8"-24 PLATED
22. 1EACH 723769 3/8"-24 X 3/8" CUP POINT Socket Set Screw
23. 1EACH 723771 STUD BOLT- 3/8"-24 X 9"
24. 1EACH 723136 5/16"-24 X 1" H.H.C.S. GRD8 NO PLATE
**715591 IS A PRESS FIT INTO THE PIVOT BLOCK
NOTES:
This assembly will require the installation of a new mode
shaft into the transfer case. Refer to the exploded assembly
view on the following pages for part identification and part
assembly.

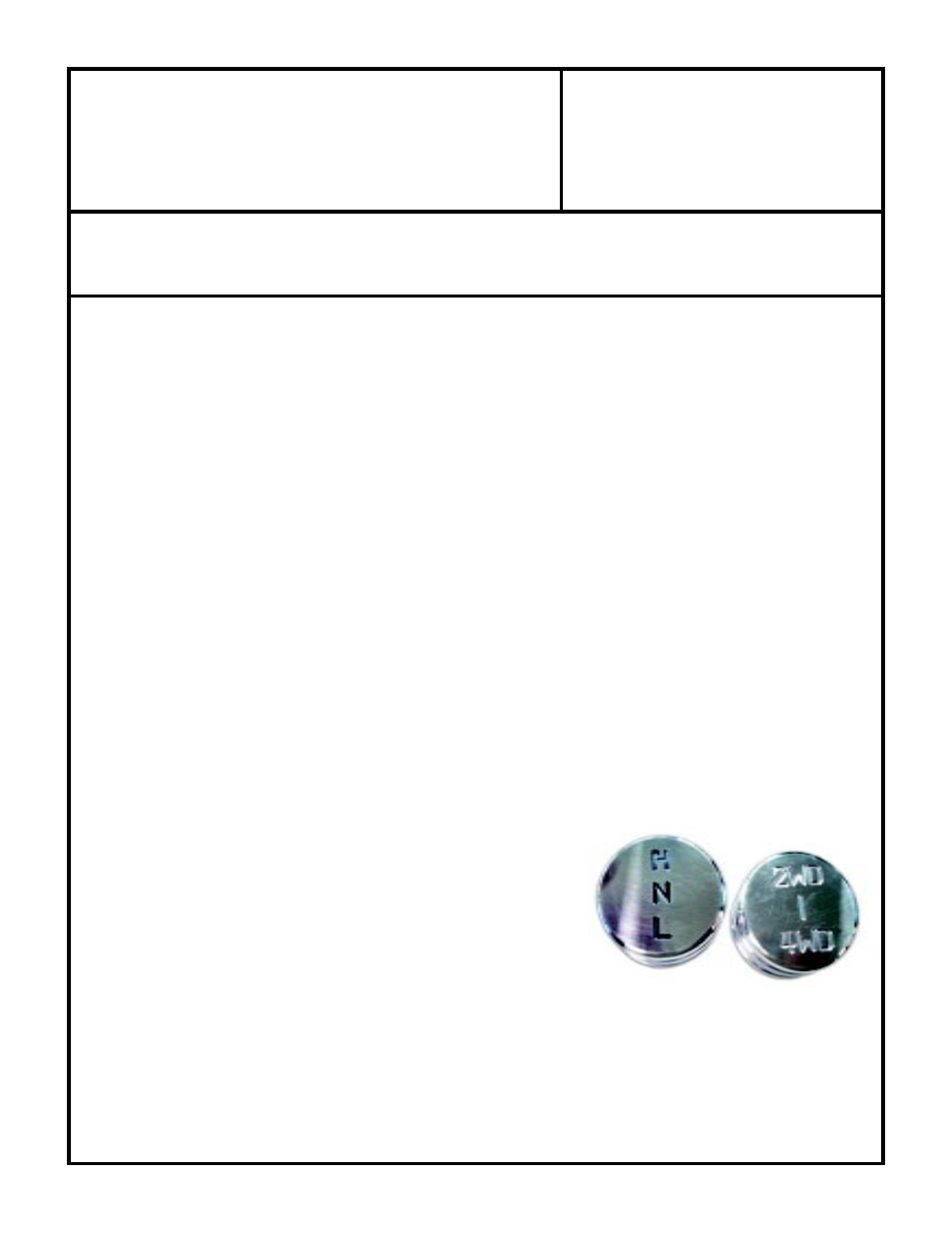

We do offer aluminum shifter knobs for the
Toyota twin stick kits. These knobs are
sold separately under Part No. 715584 at a
price of $42.95
