Advance Adapters 50-5710 - Manual

ADVANCE ADAPTERS, INC. P/N: 50-5710
P.O. BOX 247, 4320 Aerotech Center Way
Paso Robles, CA 93447 PAGE 1 OF 3
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 04-16-12
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the compo-
nents will void any possible warranty or return privileges. If you do not fully understand modifications or changed that will be required to complete your conversion,
we strongly recommend that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter
components. We recommend that a service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment.
These manual are normally available at automotive dealerships and parts stores.
KIT CONSISTS OF:
No. Qty. Part No. Description
1. 1 51-5710 3/8" STEEL ADAPTER PLATE
2. 1 52-5710 TOY. 23 SPL. x JEEP 23 SPLINE SPUD SHAFT
3. 1 716178 SPUD SHAFT SPRING
4. 1 716189 SEAL ADAPTER
5. 1 716756 NATIONAL SEAL #474269
6. 8 720066 8mm-1.25-S.H.C.S. x 35mm LONG
7. 6 723722 3/8"-16 H.H.C.S x 1.25" LONG
Notes: This kit is designed to adapt the Atlas transfer case to a Toyota Tacoma transmission. This adapter plate works
with both the 5 speed manual transmission as well as the automatic. The adapter will allow either a right or left hand
front output drop. The left hand drop (driver's side) is the same as stock. The left hand drop transfer case does require
a special longer shift rod to allow clearance on the stock Toyota transmission tailhousing. This shift rod extension is P/N
300379 . The right hand transfer case allows for nearly a zero degree rotation and does not have any shift rod clearance
issues. This adapter plate does not work with a Dana 300 transfer case.

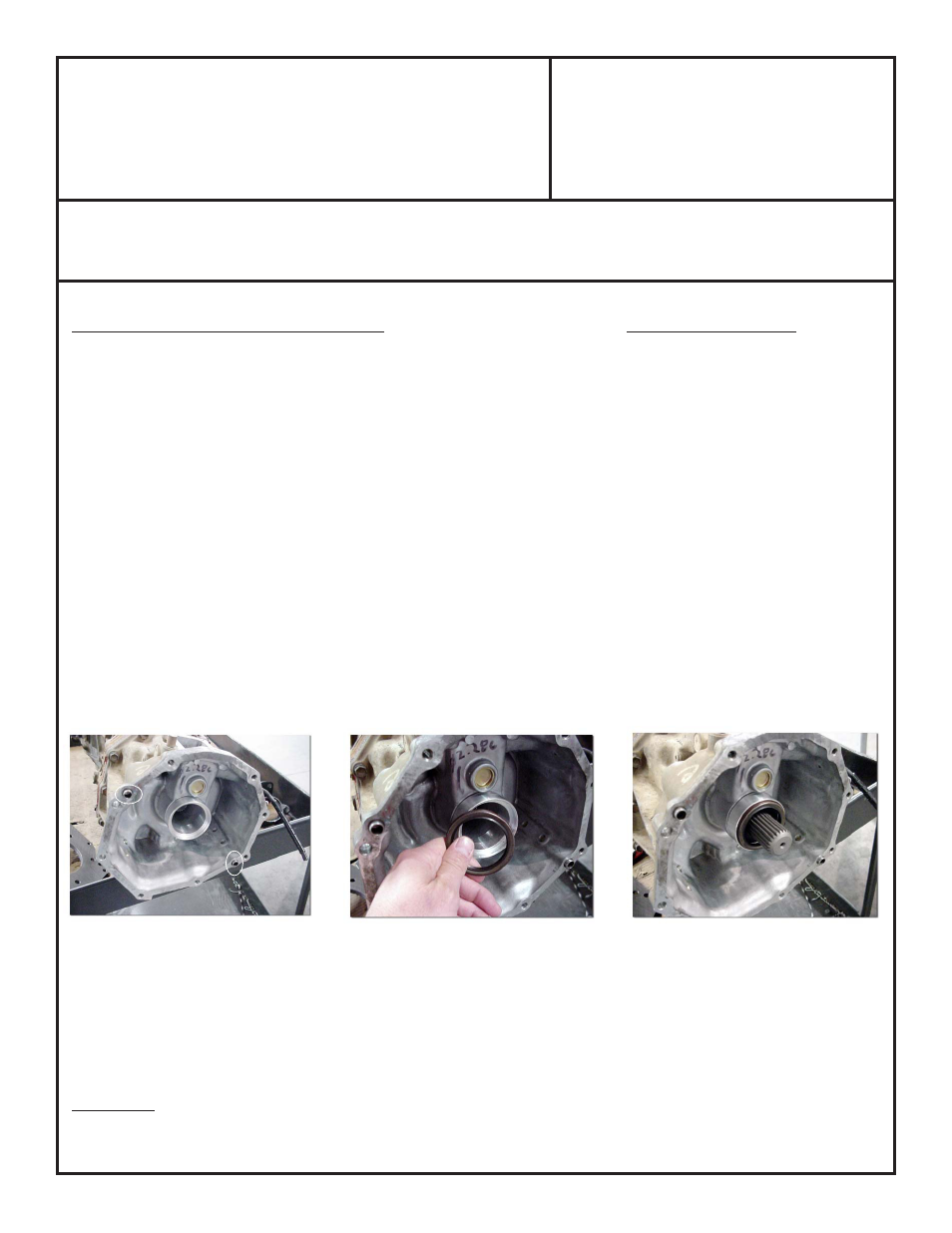

Installation: Remove the stock transfer case from the stock tailhousing adapter. The stock tailhousing is retained
along with the stock rubber crossmember support. Once the transfer case is removed, you'll see a seal located in the
stock tailhousing. This seal must be removed and discarded. Some tailhousings also had a bearing which also must
be removed. Install the new oil seal into the large end of the seal adapter. The sealing lip should be facing down. The
small end of the seal adapter has the same O.D. (outside diameter) as the old seal that was just removed from the stock
tailhousing. The seal adapter is a press-fit into the stock tail and should now be installed.
The kit comes with a new spud shaft which fits over the stock Toyota transmission output shaft. This spud shaft has a
Jeep 23 male spline on the opposite side which fits into a standard 23 spline Atlas case. When installing the spud shaft
into the Toyota transmission, the spud shaft does not seal onto the new seal just previously installed. The seal contacts
seal off of the Atlas input shaft.
The adapter plate should now be installed onto the Atlas transfer case. The adapter plate indexes off of the Atlas front
Additional items required
left hand transfer cases:
P/N 300379
P/N 300605 Atlas VSS Adapter
P/N 300613 Atlas speedo cable
adapter
Both speedometer options require
P/N 301506 plus a speedo gear.
Short Atlas input
Make sure the dowel pins are in the stock
tailhousing.
TOYOTA TACOMA TRANS TO ATLAS
(95-1/2 to 04 3.4L V6 Manual & Auto, 4.7L auto's)
