ADVANCE ADAPTERS INC. P/N: 50-0214
P.O. Box 247, 4320 Aerotech Center Way New Item: (05/95)
Paso Robles, CA 93447 PAGE 1 OF 3
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 07-14-14
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components
will void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly
recommend that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We
recommend that a service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally
available at automotive dealerships and parts stores.
KIT CONSISTS OF:
No. Qty Part No. Description
1. 1 51-0224 ADAPTER CASTING 6.375" LONG
2. 1 52-0214A 19 SPLINE SPUD SHAFT (31T INTERNAL)
3. 2 715539-1 SHIFT SPACER
4. 1 715539-2 SHIFT BRACKET FJ60
5. 1 716142 SPECIAL BUSHING
6. 1 716247 BEARING RETAINER FOR 716310
7. 1 716310 BEARING
8. 1 716321 SPECIAL SNAP RING
9. 1 716462 SET COLLAR
10. 1 716571 T/C GASKET FJ60
11. 8 720046 S.H.C.S. 10mm 1.5 THR x 40mm
12. 2 723704 LOCK WASHER 3/8" PLT
13. 2 723739 3/8"-16 x 7/8" H.H.C.S.
14. 7 724303 7/16" LOCKWASHERS
15. 3 724311 7/16"-14 x 3-1/2" H.H.C.S.
16. 4 724349 7/16"-14 x 1-1/2" H.H.C.S.
17. 1 724351 SET SCREW, 7/16"-14 x 1/2"
NEW VENTURE MODEL 4500 5 SPEED
TO TOYOTA L/C 19 SPLINE (Short Design)
NOTE:
This adapter kit has an overall transmission assembled length of 18.250". This
transmission kit must be used with a 4WD GM transmission.

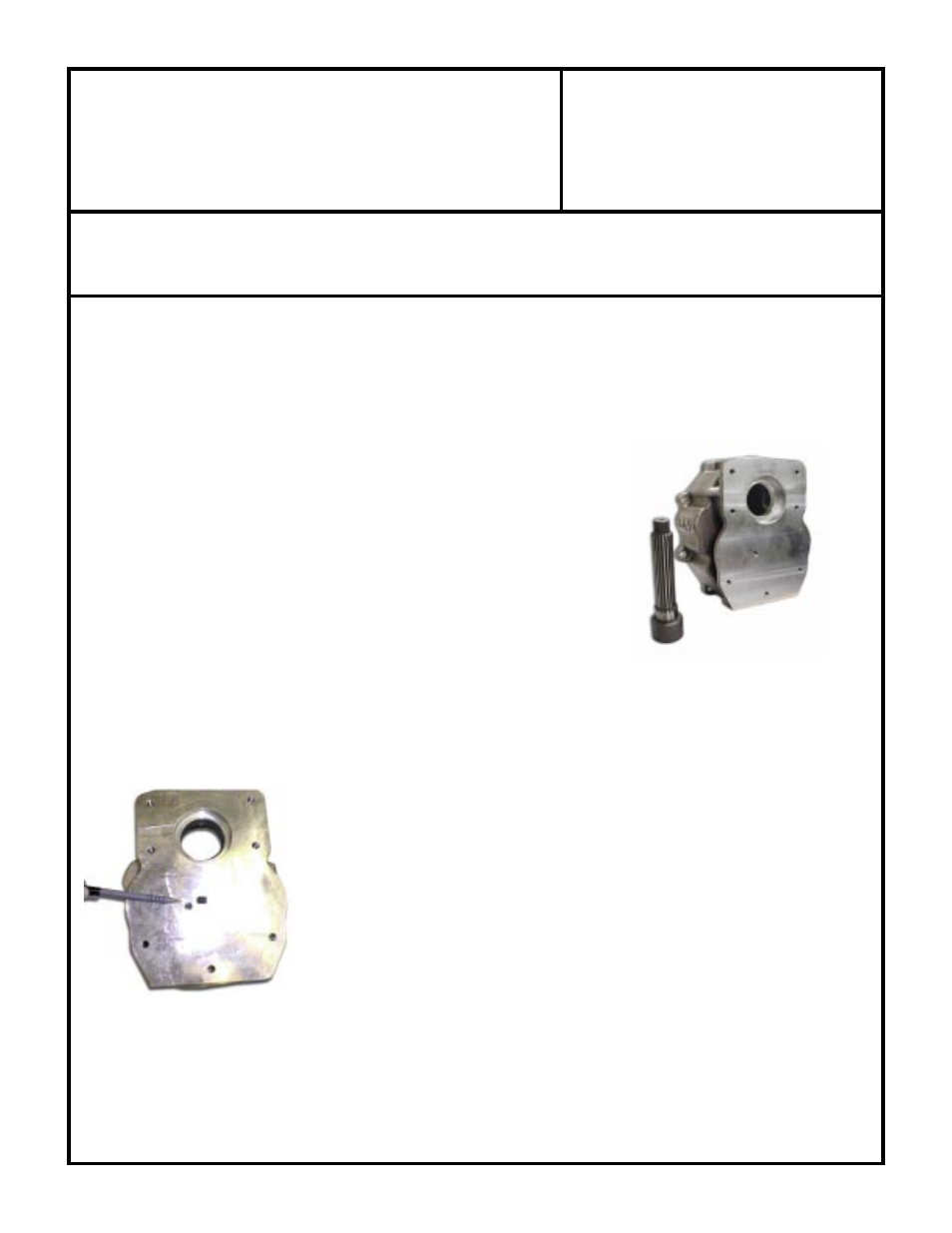

P/N 724351 must be installed (using silicone) into the casting as shown. This set screw
will prevent fluid from leaking out of the casting.
CAUTION:
There are two 3/8" holes located on the side of the adapter for the mechanical
shifter linkage. If these holes are not going to be used. They will need to be
plugged with the hardware provided and small amount of silicone.
SPECIAL NOTE: You may be required to change out the snap ring on the 308 bearing. The split-style
transfer case used two different diameter snap ring groves in the case. We have included both snap rings
to fit both styles of transfer cases.
If your transfer case was coupled to a manual transmission, Toyota used a single lip seal in the front of the transfer case.
We recommend changing the seal with a double lip seal that was used on the stock automatic applications.
Toyota # 90316-48003
