Transporting the Work Platform
060570-028 MX15 / MX19 - Operation Manual
Page 11
T
RANSPORTING
THE
W
ORK
P
LATFORM
B
Y
C
R A N E
Secure the straps to Tie Down/Lift Points only.
B
Y
F
O R K L I F T
D A N G E R
!
!
Forklifting is for transport only.
See specifications for weight of work platform and be certain that forklift is of adequate capacity to lift
the work platform.
Both the MX15 and MX19 may be forklifted from the rear end of the machine between the wheels.They
may also be forklifted from the side using the forklift pockets shown in the diagram.

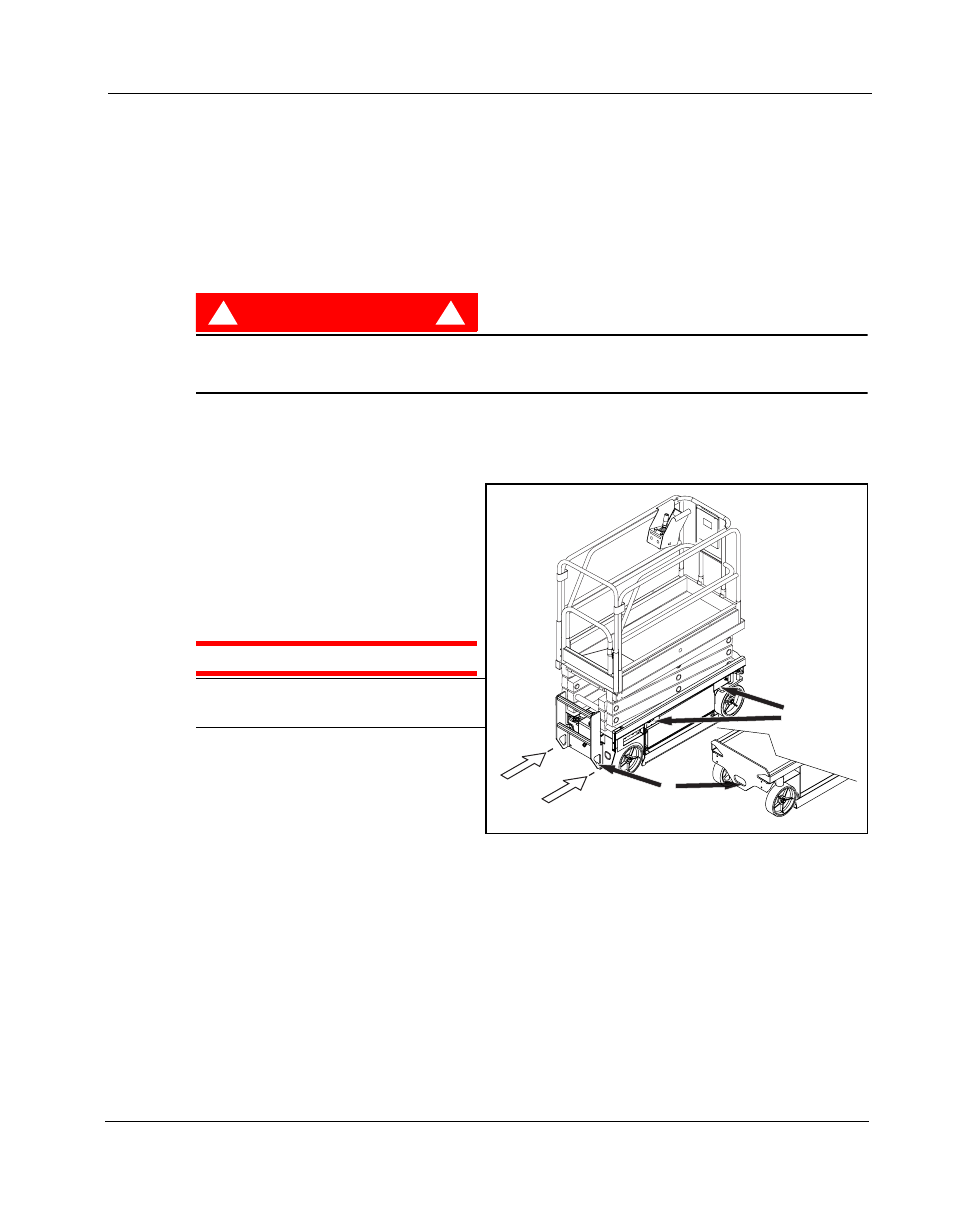

Figure 8: Transporting the Work Platform
B
Y
T
R U C K
Maneuver the work platform into transport
position and chock the wheels. Secure the
work platform to the transport vehicle by
attaching chains or straps of adequate
load capacity to the Tie Down/Lift Points.
C A U T I O N
Overtightening of the chains or straps
attached to the Tie Down/Lift Points may
result in damage to work platform.
Forklift
Tie Down/Lift Points
Forklift
Pockets
