Page 18 Operation Manual
060570-027 MX 15/19 Specifications
S
PECIFICATIONS
*Specifications are subject to change without notice. Hot weather or heavy use may affect performance.
Refer to the Service Manual for complete parts and service information.
The MX15/19 meets or exceeds all applicable CE and GS machinery directive requirements.
ITEM MX15 MX19
Platform Size (Inside minimum)
Standard w/Deck 0,57 m x 2,5 m (22.5 in. x 98.5 in.) 0,57 m x 2,5 m (22.5 in. x 98.5 in.)
Maximum Platform Capacity
Standard w/Deck Extension 250 kg (550 lbs.) 227 kg (500 lbs.)
Maximum Number of Occupants
Standard w/Deck Extension 2 People indoors/1 person outdoors 2 People indoors/1 person outdoors
on Extension 1 Person 1 Person
Height
Working Height 6,57 m (21 ft. 7 in.) 7,8 m (25 ft. 6 in.)
Maximum Platform Height 4,57 m (14 ft. 11 in.) 5,8 m (19 ft.)
Maximum Drivable Height 4,57 m (14 ft. 11 in.) 5,8 m (19 ft.)
Dimensions
Weight 1043 kg (2300 lbs.) 1365 kg (3010 lbs.)
Overall Width 760 mm (30 in.) 760 mm (30 in.)
Overall Height (Lowered) 1,93 m (76 in.) 2,02 m (79.5 in.)
Overall Length (Deck in) 1,60 m (63 in.) 1,60 m (63 in.)
Drive Speed
Platform Lowered 3,7 km/h (2.3 mph) 3,7 km/h (2.3 mph)
Platform Raised 1,0 km/h (0.62 mph) 1,0 km/h (0.62 mph)
Energy Source
24 V battery pack (4-220 A hour, 6 V
batteries, min. wt. 26,3 kg [58 lbs.] each),
4 HP DC electric motor
24 V battery pack (4-220 A hour, 6 V
batteries, min. wt. 26,3 kg [58 lbs.] each),
4 HP DC electric motor
System Voltage 24 V DC 24 V DC
Battery Charger 20 A, 240 V AC 50 Hz, Automatic 20 A, 240 V AC 50 Hz, Automatic
Hydraulic Tank Capacity 12,9 L (3.4 US gal.) 12,9 L (3.4 US gal.)
Maximum Hydraulic System Pressure 207 bar (3000 psi) 207 bar (3000 psi)
Hydraulic Fluid
Normal above 32° F [0° C] ISO #46 ISO #46
Low Temp. below 32° F [0° C] ISO #32 ISO #32
below 0° F [-17° C] ISO #15 ISO #15
Lift System One Single Stage Lift Cylinder One Single Stage Lift Cylinder
Drive Control Motor Control Motor Control
Control System
Control Handle with Interlock Switch,
Rotary Drive/Lift Switch, and Red
Mushroom Emergency Stop Switch
Control Handle with Interlock Switch,
Rotary Drive/Lift Switch, and Red
Mushroom Emergency Stop Switch
Drive System Dual Front Wheel Hydraulic Motors Dual Front Wheel Hydraulic Motors
Tires
30,5 cm (12 in.) diameter solid rubber,
Non-marking
30,5 cm (12 in.) diameter solid rubber,
Non-marking
Parking Brake Dual, Spring Applied, Hydraulic Release Dual, Spring Applied, Hydraulic Release
Turning Radius (inside) 25 mm (1 in.) Inside 25 mm (1 in.) Inside
Maximum Gradeability 25% (14°) 25% (14°)
Wheel Base 1,23 m (48.5 in.) 1,23 m (48.5 in.)
Guardrails 1,10 m (43 in.) 1,10 m (43 in.)
Toeboard 152 mm (6 in.) 152 mm (6 in.)
Noise Level
Einführung 060570-027 MX 15/19
Betriebsanleitung Seite 39
E
INFÜHRUNG
Dieses Handbuch beschreibt die Anwendung der Arbeitsbühne mit Eigenantrieb der MX-Serie.
Dieses Handbuch muss ständig an der Maschine aufbewahrt werden.
A
LLGEMEINE
B
ESCHREIBUNG

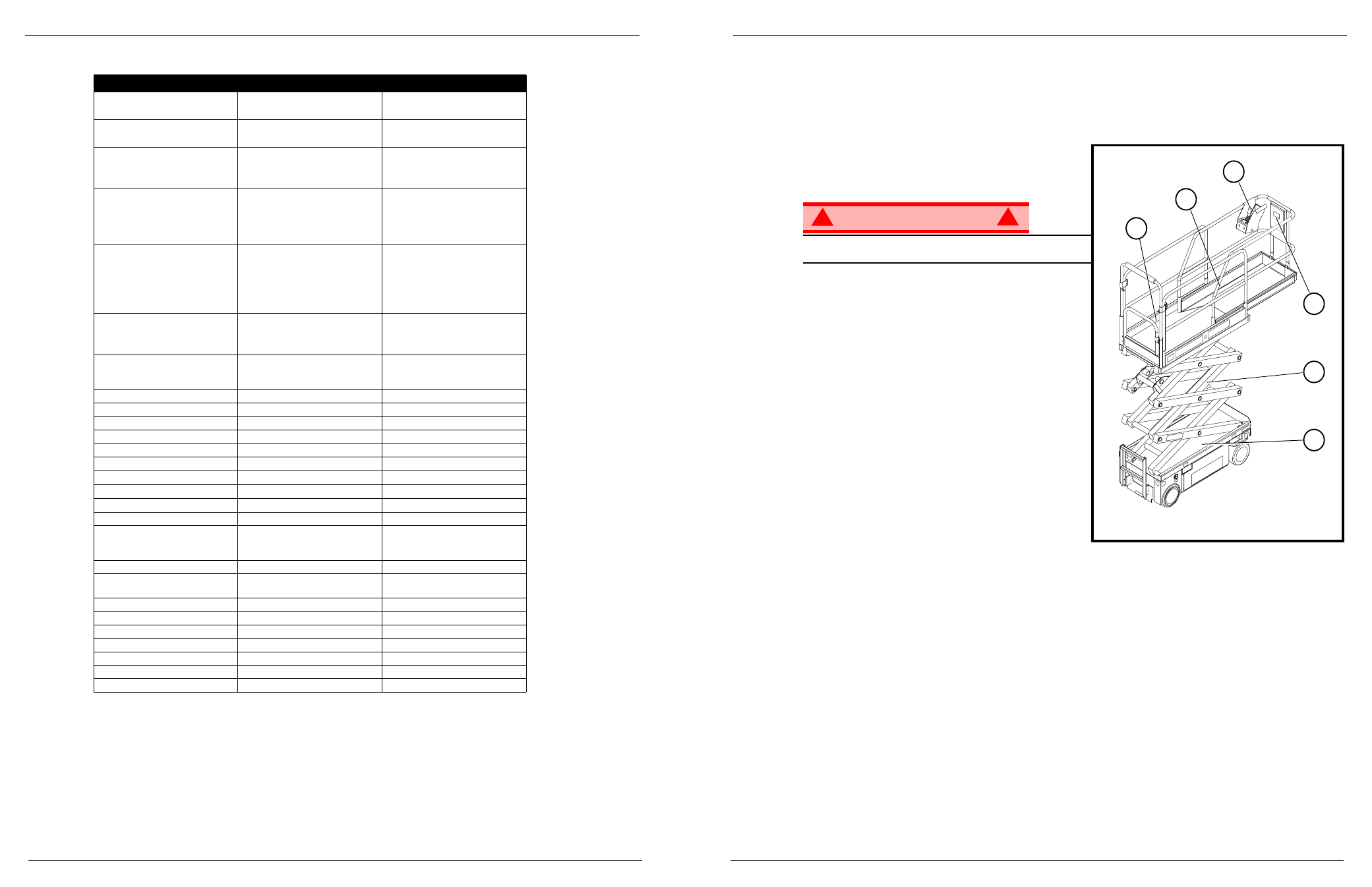

Abbildung 1: MX-Serie
1. Arbeitsbühne
2. Deckverlängerung
W A R N U N G ! !
Die Arbeitsbühne NICHT ohne ordnungsgemäß
angebrachte Schutzgeländer benutzen.
3. Arbeitsbühnen-Steuerpult
4. Handbuchfach
5. Hubgestell
6. Fahrwerk
1
2
3
4
5
6
