Installation Instructions:
XRC & SRC (76856,76622) Rear
Bumper with Tire Carrier.
07-10 Jeep JK (Wrangler/Unlimited)
3. If the lock pin on the back of your handle is too low or too high, this can be adjusted by loosening or
tightening the two end mounting bolts of the tire carrier. (Fig E,F)These two bolts provide a lot of
adjustment. This needs to be done in small increments, a ¼ turn can accomplish a lot. It is easier to
have assistance while doing this, so you can have someone watching the latch while someone does
the wrenching. This should be done with the tire carrier slightly open.

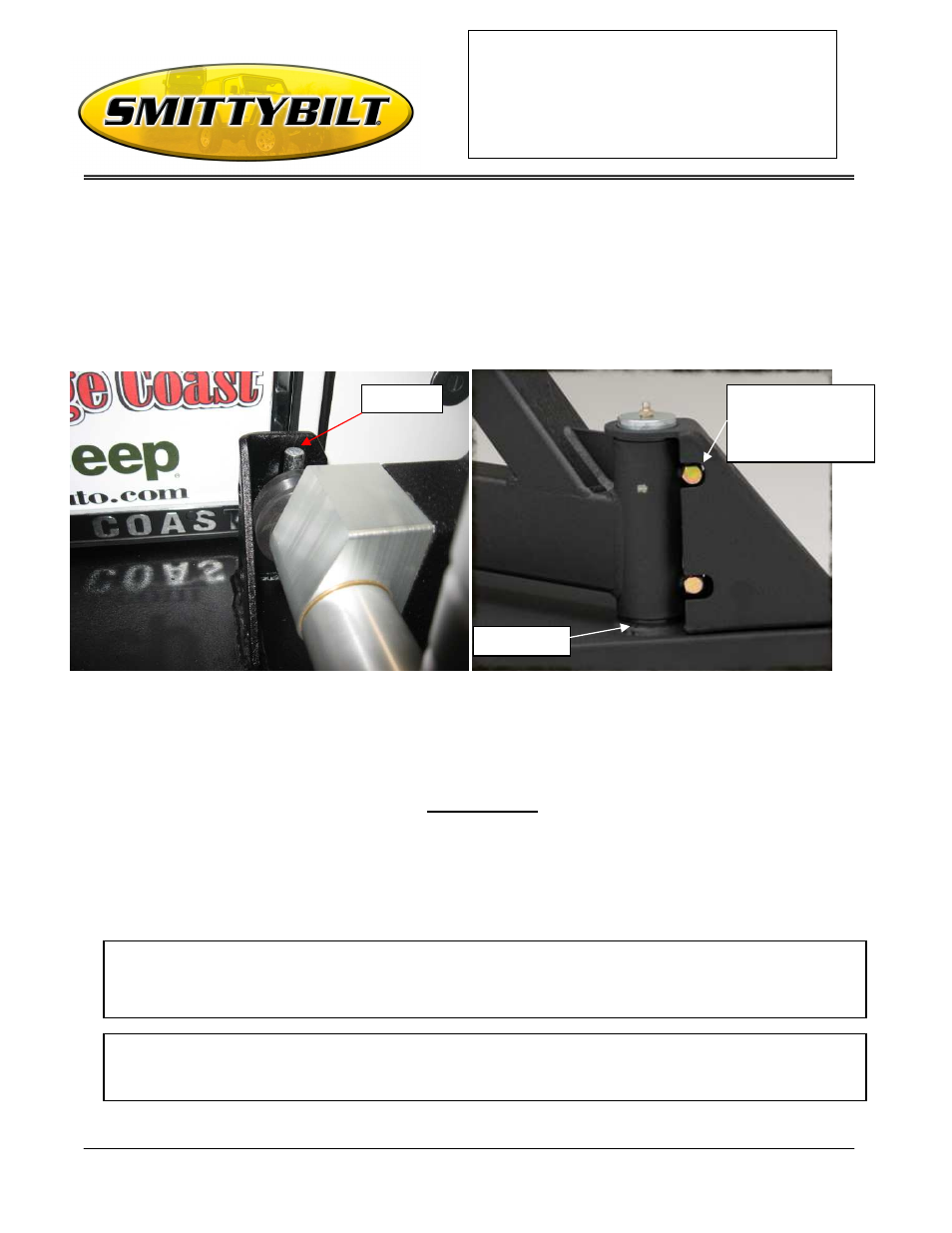

(Fig E) (Fig F)
4. After you have made all the necessary adjustments proceed to mount your tire. Depending on the
size and weight you may need to go through these steps again.
Other Notes
A. Make sure you have a nylon ring installed on the bumper post before you slide the tire carrier on.
B. When handle is locked, it should be in the 3 o’clock position. (Fig A) If for some reason it is not, you
can rotate the handle simply by removing the allen head bolt, remove the handle and turn it.
C. Make sure to grease the tire carrier regularly.
D. In some instances the post bolts may be flush with the stover nut and/or some up to a ¼” past.
Tightening the top
bolt in small
increments will raise
the tire carrier
Nylon ring
Lock Pin
NOTE: There are two styles of handles included. You can use either version. To replace; simply
remove the allen head bolt on the end of the handle, slide current handle off and then slide the
preferred handle on and tighten bolt.
NOTE: Included hardware may be Metric , but the sizes are coordinated to the standard hardware
kits/sizes listed.
