For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220

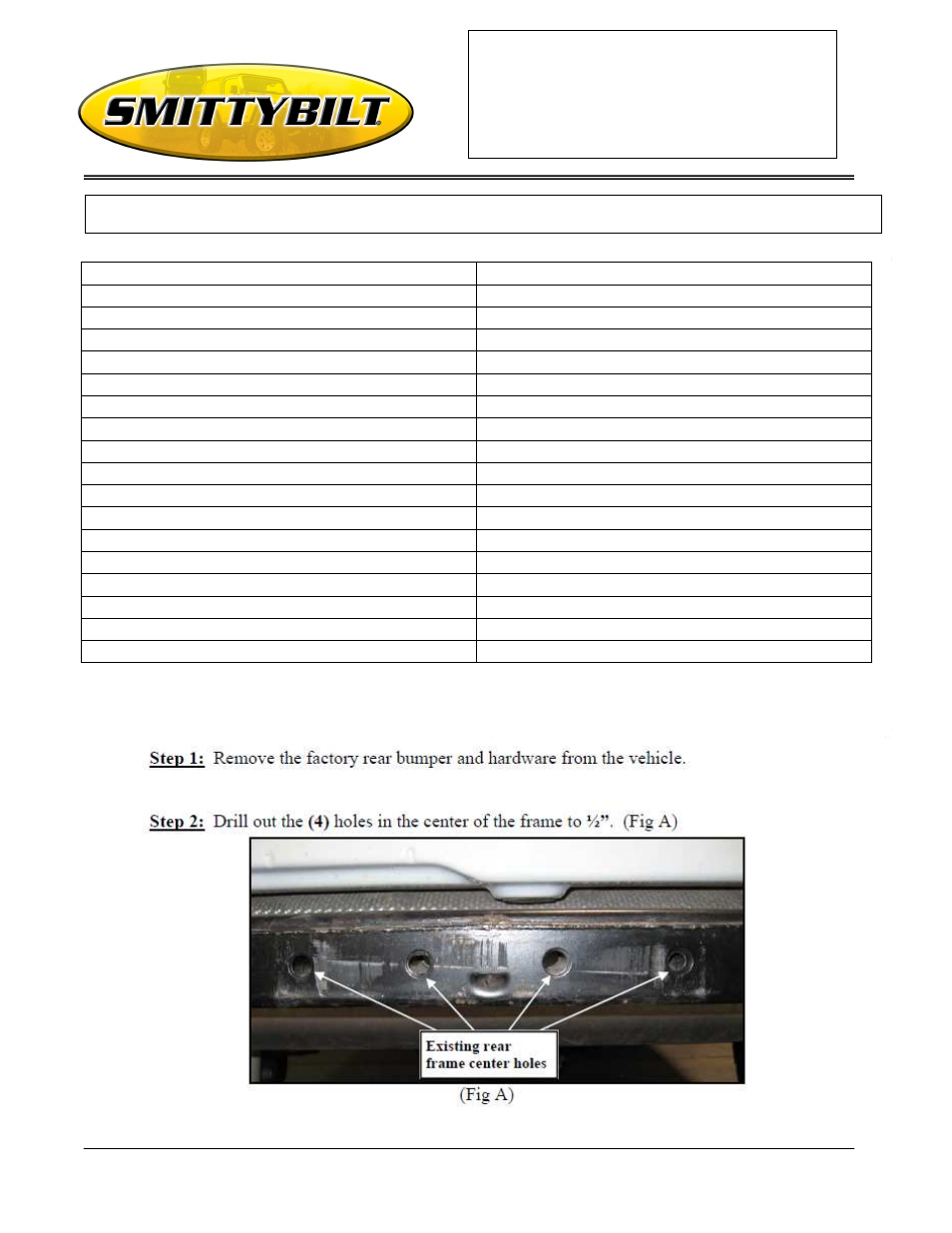

Installation Instructions:
XRC & SRC (76856,76622) Rear
Bumper with Tire Carrier.
07-10 Jeep JK (Wrangler/Unlimited)
Note: Carefully read entire instructions thoroughly before attempting to install this product.
5/16” x 2 ½”
4
Parts Included QTY Parts Included QTY
Box 1 (Bumper)
Rear Bumper 1
3/8” x 1 ¼’ Hex Bolt (Brace Base) 2
Tire Carrier Adjustable Mount (91-5433) 1
3/8” x 1 ¾” Hex Bolt (Post) 2
Nut Plate (90-3925) 1
3/8” Nut 4
½” x 2 ½” Hex Bolt (Hitch Bolt) 4
3/8” Flat Washer 8
½” x 1 ¼” Hex Bolt (Side Bolt) 4
½” Flat Washer 12
½” Hex Nut (Hitch Nut) 4
Nylon Washer (90-2940) 2
Box 2 (Tire Carrier)
Circle Clip (90-4218) 1
Lug Nuts 3
Tire Carrier 1
Zerk Fitting 1
Complete Handle Assembly 1
XRC only Tire Carrier Brace (93-5436) 1
Pistol Grip Handle (76856-03) 1
SRC only Tire Carrier Brace (91-5430) 1
5/16” x 2 ½” Hex Bolt (Handle Assembly) 2
½” Nut (Tire Mount) 4
5/16” Nut 2
½” Flat Washer (Tire Mount) 4
5/16” Flat Washer 4
Latch Support Bracket (76856-06) 1
