Installation Instructions
SRC Bumper (Part # SB76612)
2007 Jeep JK SRC Rear Bumper
Revised 12.9.09

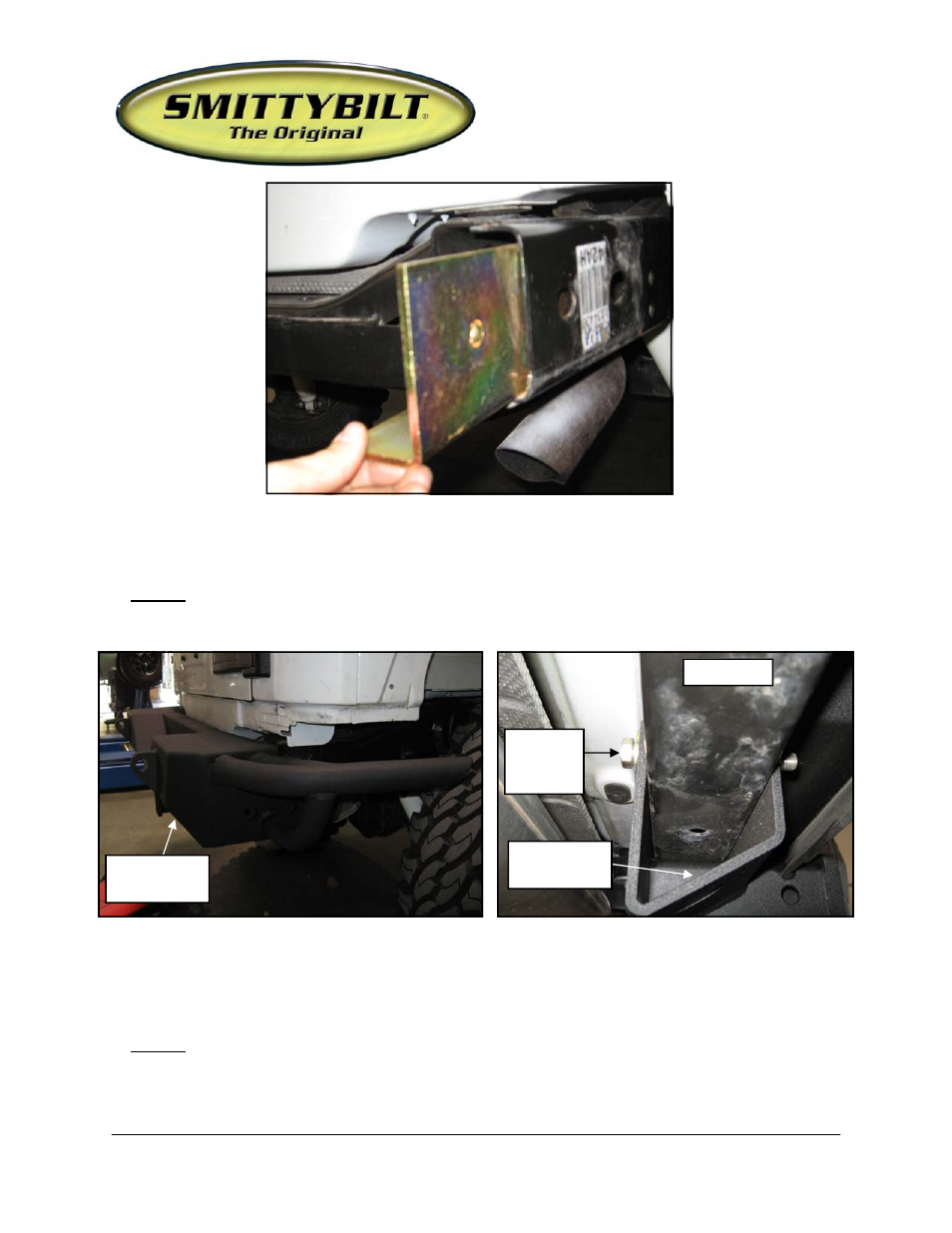

(Fig B)
Step 4: NOTE: This step might require 2 people. Raise the new SRC rear bumper (93-
3913) up into place and align the (4) holes on the frame with the holes on the hitch plate on the
bumper. (Fig C)
(Fig C) (Fig D)
Step 5: Install the 1/2” X 4 ½” hex bolts to secure the hitch plate to the rear frame. Do not
tighten bolts at this time. (Fig D)
Rear bumper
93-3913
Bumper hitch
plate
(4) 1/2” X
4 1/2”
bolts
Rear frame
