Installation Instructions

SRC Bumper (Part # SB76612)

2007 Jeep JK SRC Rear Bumper

Revised 12.9.09

Parts Included Qty

93-3913 Rear Bumper 1

90-3925 Nut Plate 2

1/2”-13 X 4 1/2” Gr. 8 Hex Bolt 4

1/2”-13 X 1 1/4” Gr. 8 Hex Bolt 4

1/2” USS Flat Washer 8

1/2” SAE Washer 4

1/2” Hex Nut 4

NOTE: Carefully read entire instructions thoroughly before

attempting to install this part.

STEP 1: Remove the factory rear bumper and hardware from the vehicle.


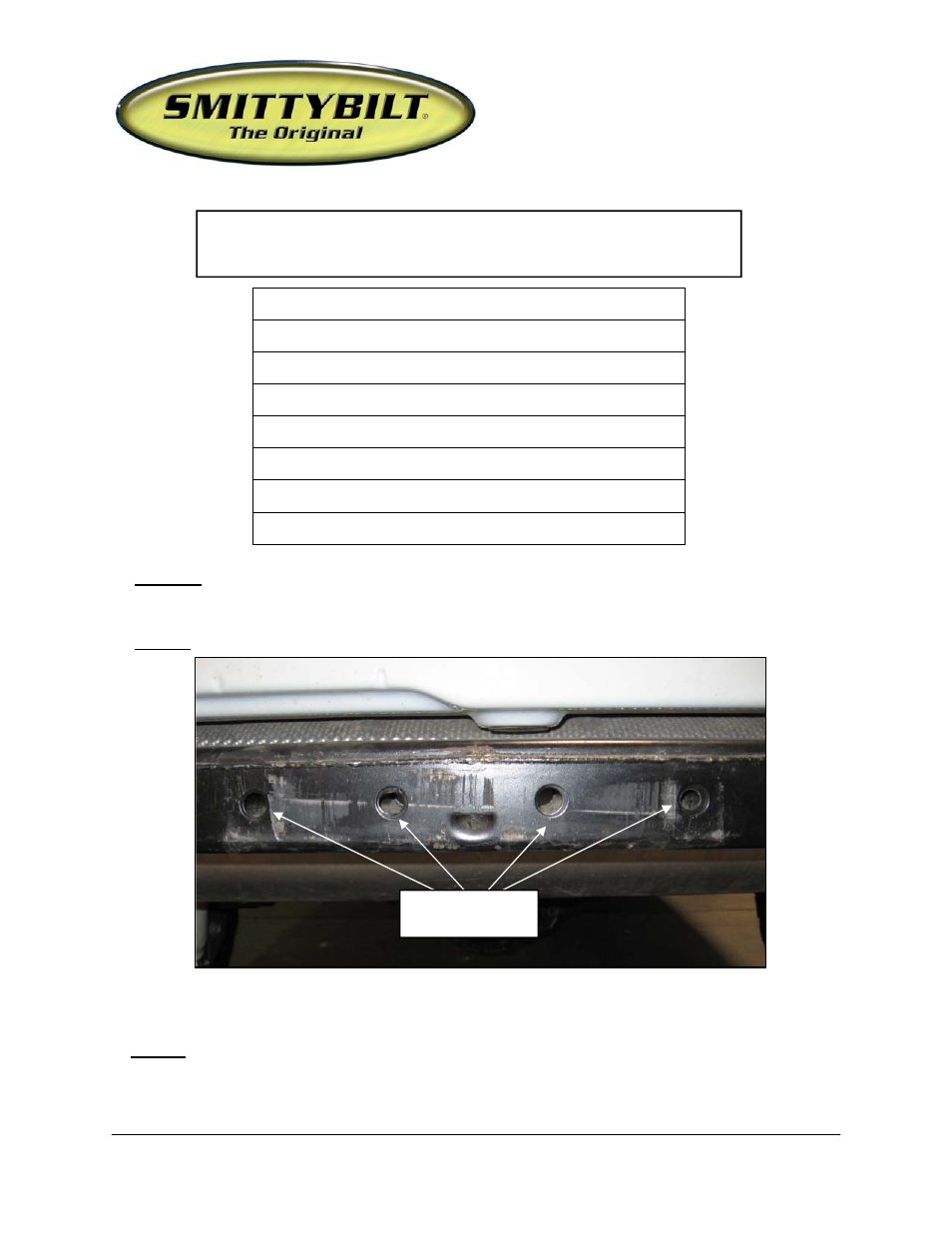

Step 2: Drill out the (4) holes in the center of the frame to ½”. (Fig A)















(Fig A)

Step 3: Insert nut plate (90-3926) into the inside of the rear frame rails. (Fig B)

Existing rear
frame center holes
