Smittybilt SB76622 SRC Bumper - Manual (Page 2)

For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 W Artesia, Compton, CA 90220
Revised 12.1.09
Installation Instructions:
SRC Bumper (Part # SB76622)
2007 Jeep JK SRC Rear Bumper
w/ Tire Carrier

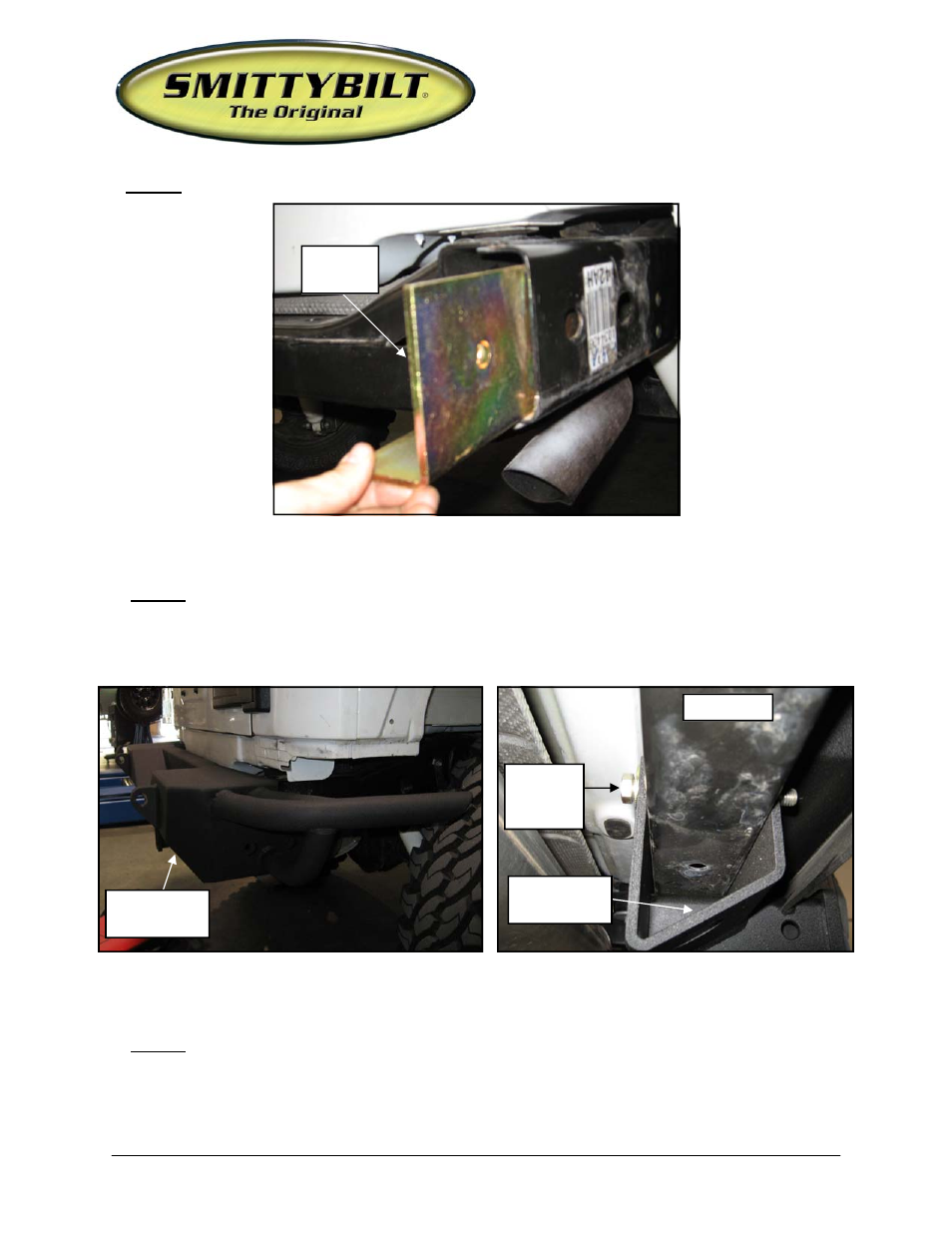

Step 3: Insert nut plate (90-3925) into the inside of the rear frame rails. (Fig B)
(Fig
B)
Step 4: NOTE: This step might require 2 people. Raise the new SRC rear bumper (91-
3913) up into place and align the (4) holes on the frame with the holes on the hitch plate on the
bumper. (Fig C)
(Fig C) (Fig D)
Step 5: Install the 1/2” X 4 ½” hex bolts to secure the hitch plate to the rear frame. Do not
tighten bolts at this time. (Fig D)
Rear bumper
91-5417
Bumper hitch
plate
(4) 1/2” X
4 1/2”
bolts
Rear frame
Nut Plate
90-3925
