Installation Instructions
SRC Over-Size Tire Carrier
07-10 Jeep Wrangler/Unlimited
Part # 2743
Step 7: Set your spare tire onto the center tube of the tire carrier. (Fig G) Place tire so that
two of the lug nut holes are on top (side to side). Place tire hold-down bracket over
tube in tire carrier and line up the top two points in two lug holes in the wheel and
one in the bottom. Thread the lock down tire handle into the tire carrier. Tighten the
handle completely. The tire should be snug against the tire stop bars. (Fig I, J)
Installation is now complete. Make sure all hardware is tight and the brake light is
operational.
Step 8: There is a slot and a hole located on the hold down bracket. This is in order to place a
pad-lock on carrier. The body/bottom of the lock would be on the outside. Make sure
its long enough in order to prevent the tire carrier handle from being turned.

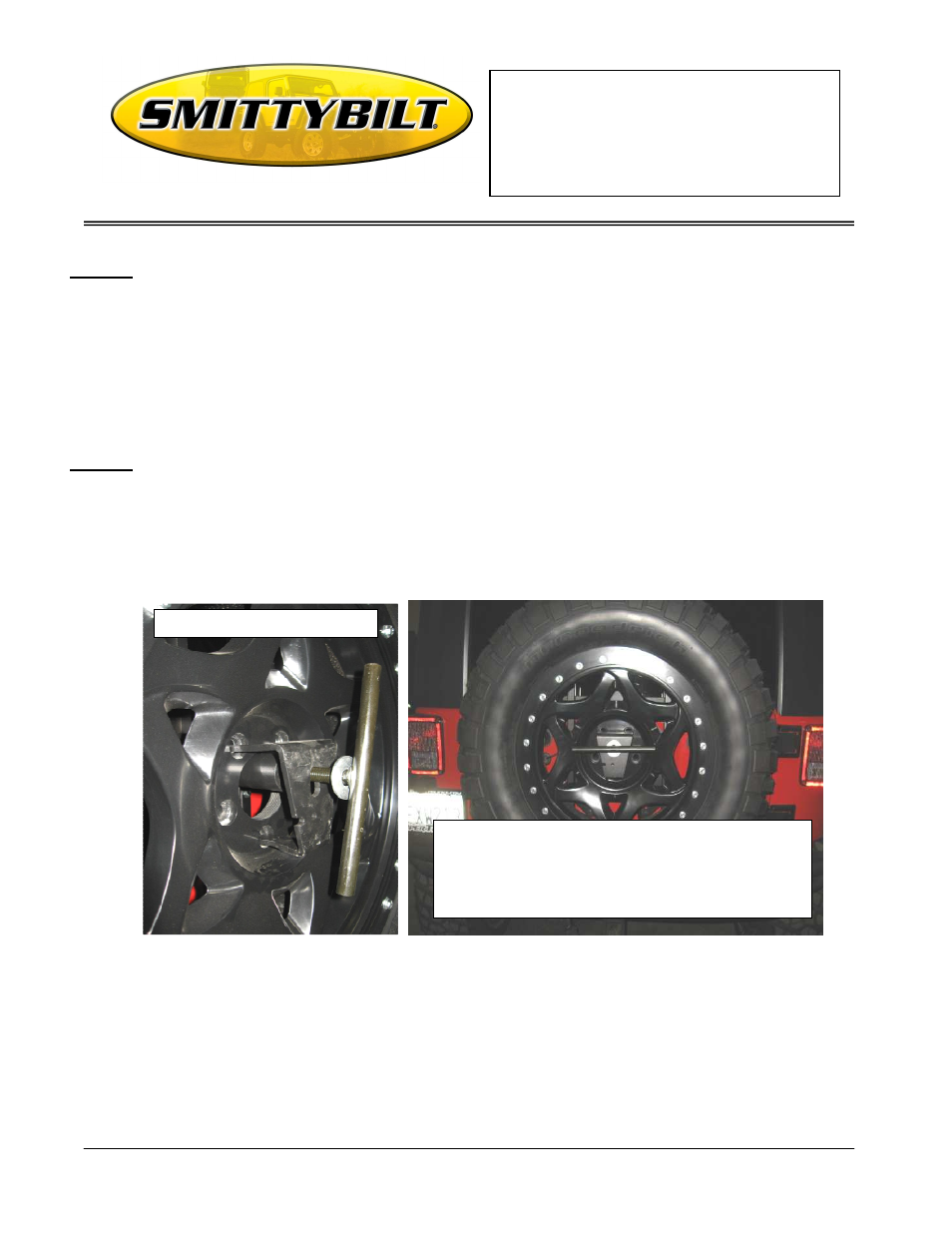

(Fig I) (Fig J)
CARE AND MAINTENANCE
Handle may vary slightly from picture
Set your spare tire onto the center tube of the tire carrier. Place
tire so that two of the lug nut holes are on top (side to side).
Place tire hold-down bracket over tube in tire carrier and line up
the top two points in two lug holes in the wheel and one in the
bottom. Thread the lock down tire handle into the tire carrier.
Tighten the handle completely.
