Installation Instructions
SRC Over-Size Tire Carrier
07-10 Jeep Wrangler/Unlimited
Part # 2743

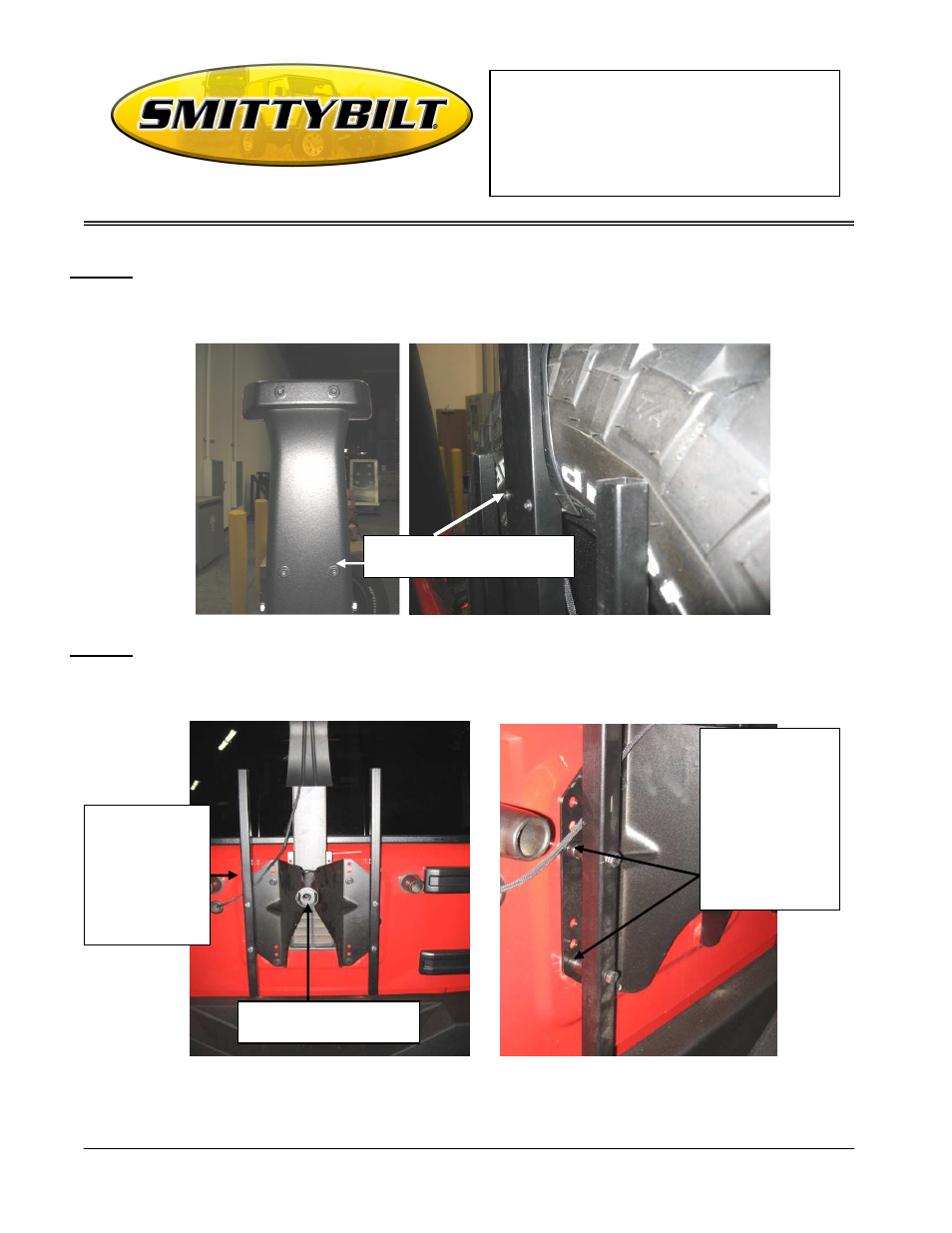

Step 5: Now plug the light wire back into the brake light. Attach the brake light to the brake
light bracket with the two supplied tapping screws in the top two hole locations and
use two of the original screws you removed in step 1 for the bottom tow hole
locations. (Fig E, F)
(Fig E) (Fig F)
Step 6: Mount the tire stop bars on the outside holes on the tire carrier. The long end of the
bars go toward the top. Mount each bar using the included 8x70mm bolts, flat washers
and spacers and secure tightly. (Use two spacers for each bolt, they go between the
tire stop bar and the tire carrier.) Fig G, H
(Fig G) (Fig H)
Use the two original bolts for the
bottom location.
Mount the tire
stop bars on the
outside holes on
the tire carrier.
The long end of
the bars go
toward the top.
Mount each bar
using the included
8x70mm bolts, flat
washers and
spacers. (Use two
spacers for each
bolt, they go
between the tire
stop bar and the
tire carrier.)
Set your spare tire onto the
center tube of the tire carrier
