Installation Instructions
SRC Over-Size Tire Carrier
07-10 Jeep Wrangler/Unlimited
Part # 2743

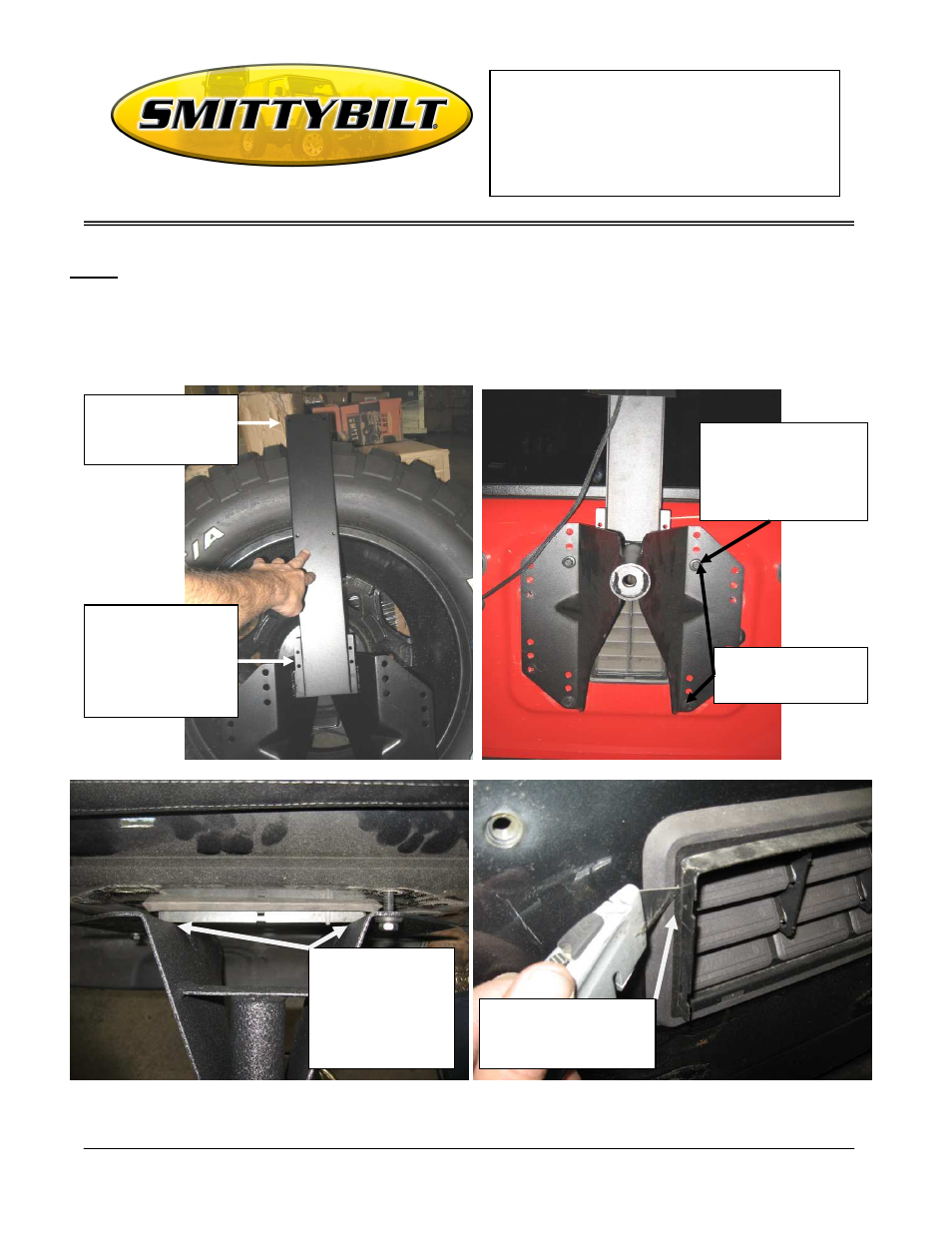

Note: If your vehicle is equipped with a 9” x 5” exhaust vent minor trimming will be necessary.
Loosely attach the tire carrier to the back of the jeep and mark where the vent will need
to be trimmed. (Fig C) Remove tire carrier and then proceed to carefully trim the edge of the
vent. This can easily be done with a sharp utility knife. (Fig D)
(Fig A) (Fig B)
(Fig C) (Fig D)
Put the light bracket so
the top of it where the
light lens will be placed
is just above the tire.
Align the bracket holes
to the best hole
locations on the tire
carrier. Secure tightly
using the two supplied
pan head
screws, lock
washers and nuts.
Now mount your new tire
carrier on the tailgate
using 4 of the factory
bolts you previously
removed in the inner set
of holes.
This tire carrier is set-
up to hold a 37” tire.
Loosely attach the
tire carrier to the
back of the vehicle
and mark the vent
where it will need
to be trimmed.
Remove the tire carrier
and carefully trim the
edge of the vent.
