Installation Instructions
97-06 Jeep Hardtop (1-piece)
Part # 519701 (without doors)
Part # 519801 (with doors)

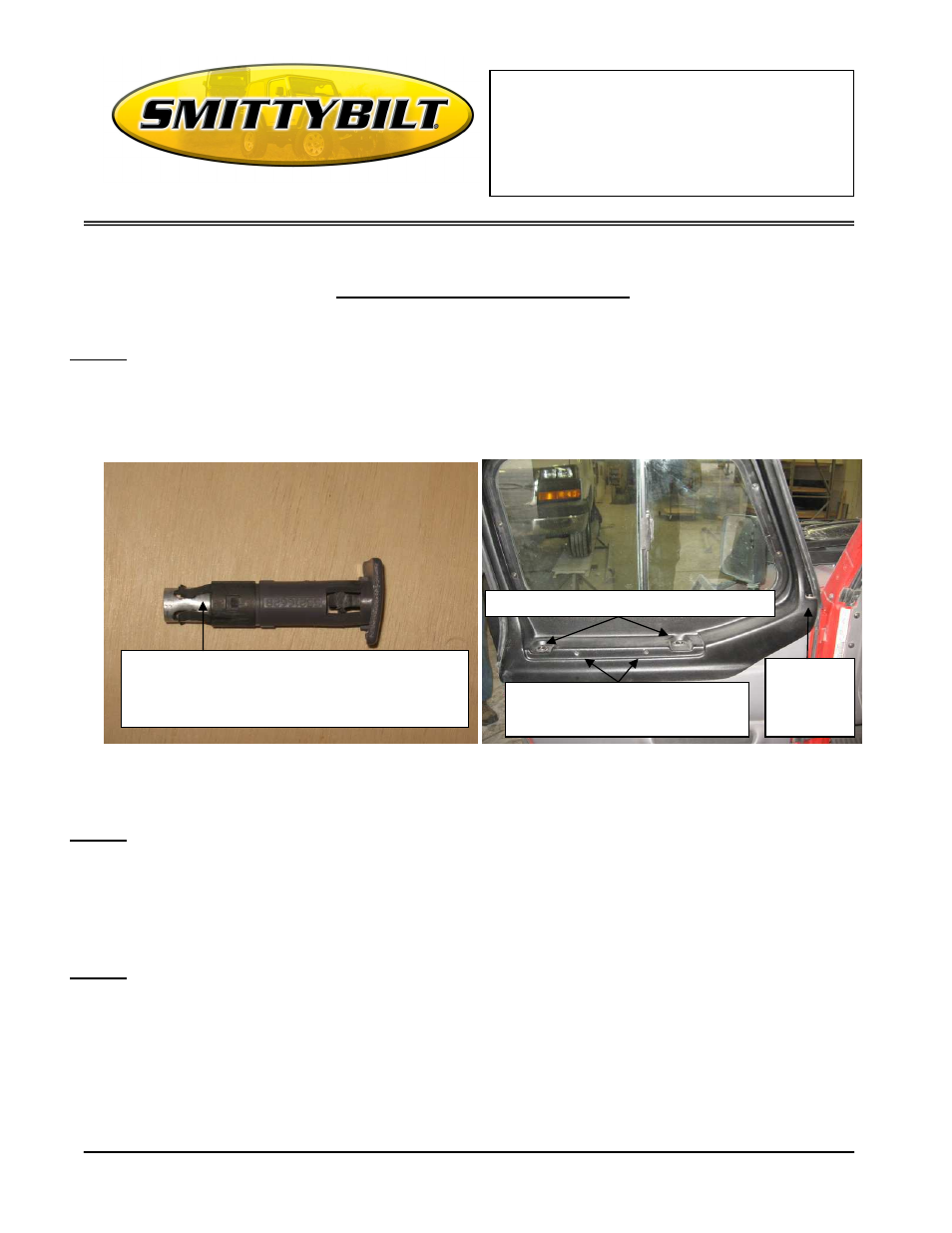

UPPER WINDOW INSTALLATION
Step 1: Using a flat screwdriver or panel puller carefully pry out the factory door inserts in the top
of the door. (3 per door) Insert the included nut inserts into the bottom of each door insert.
The thicker part of the nut insert goes towards the top. (Fig I) Now place the door inserts back
into the doors.
(Fig I) (Fig J)
Step 2: Place the upper door on top of your factory half door lining up the holes in the door with the door
inserts. Install the 4” bolt in the front hole and the 5” bolts in the middle and rear. (Fig J) Use caution
when installing the bolts not to push the nut inserts out of the door inserts. Tighten each bolt to
secure the door. (Do not over-tighten)
Step 3: Once door is secure place the plastic armrest on door secure by pushing the black plastic plugs
through the armrest and into the door. (Fig J) Repeat steps 1 thru 3 for the other side.
Installation is now complete. (Fig K, L)
Insert the included nut inserts into the
bottom of each door insert. The thicker
part of the nut insert goes towards the top.
The 4” bolts go on the middle and rear locations
The 5” bolt
goes in the
front
location.
Once door is secure place the plastic
armrest on door secure by pushing the
black plastic plugs
