Installation Instructions
97-06 Jeep Hardtop (1-piece)
Part # 519701 (without doors)
Part # 519801 (with doors)

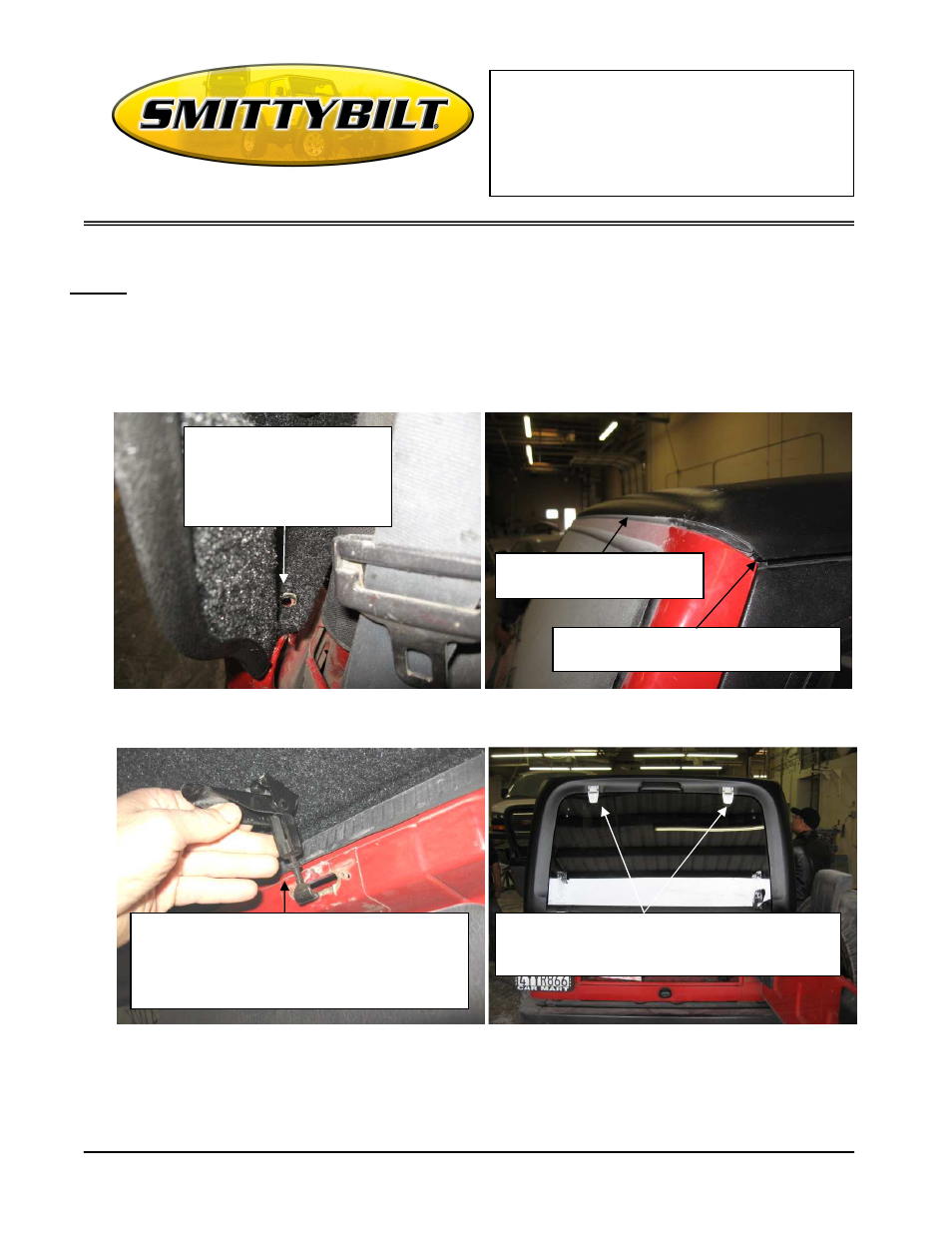

Step 3: Align the holes in the top (3 on each side) with the holes on the vehicle. Mount using 1 ea 5/16x1”
bolt, flat washer and nut plate. (Fig C) Do not tighten completely at this time. It may be helpful to
have assistance by having someone push from the outside in so the holes align easier. Due to
variances in vehicles if a mounting hole is slightly off you can easily open the hole up with a drill bit.
(Fig C) (Fig D)
(Fig E) (Fig F)
Align the holes in the top (3 on
each side) with the holes on the
vehicle. Mount using 1 ea
5/16x1” bolt, flat washer and
nut
plate. Do not tighten completely
at this time.
Make sure top is centered on the
windshield frame and gasket.
On late model TJ’s push up the ends of the
factory windshield gasket into the top.
Attach the two front windshield latches on the top
into the slots in the windshield frame. You can
rotate the hook in and out to adjust for a tight snug
fit. When the
desired location is found tighten the
hex nut up to lock into place.
Hold the rear window on the back of the top. Insert
the threaded rods on the back of the window hinges
through the pre-drilled holes in the top.
