Installation Instructions
Rugged Rack
Part # 17185

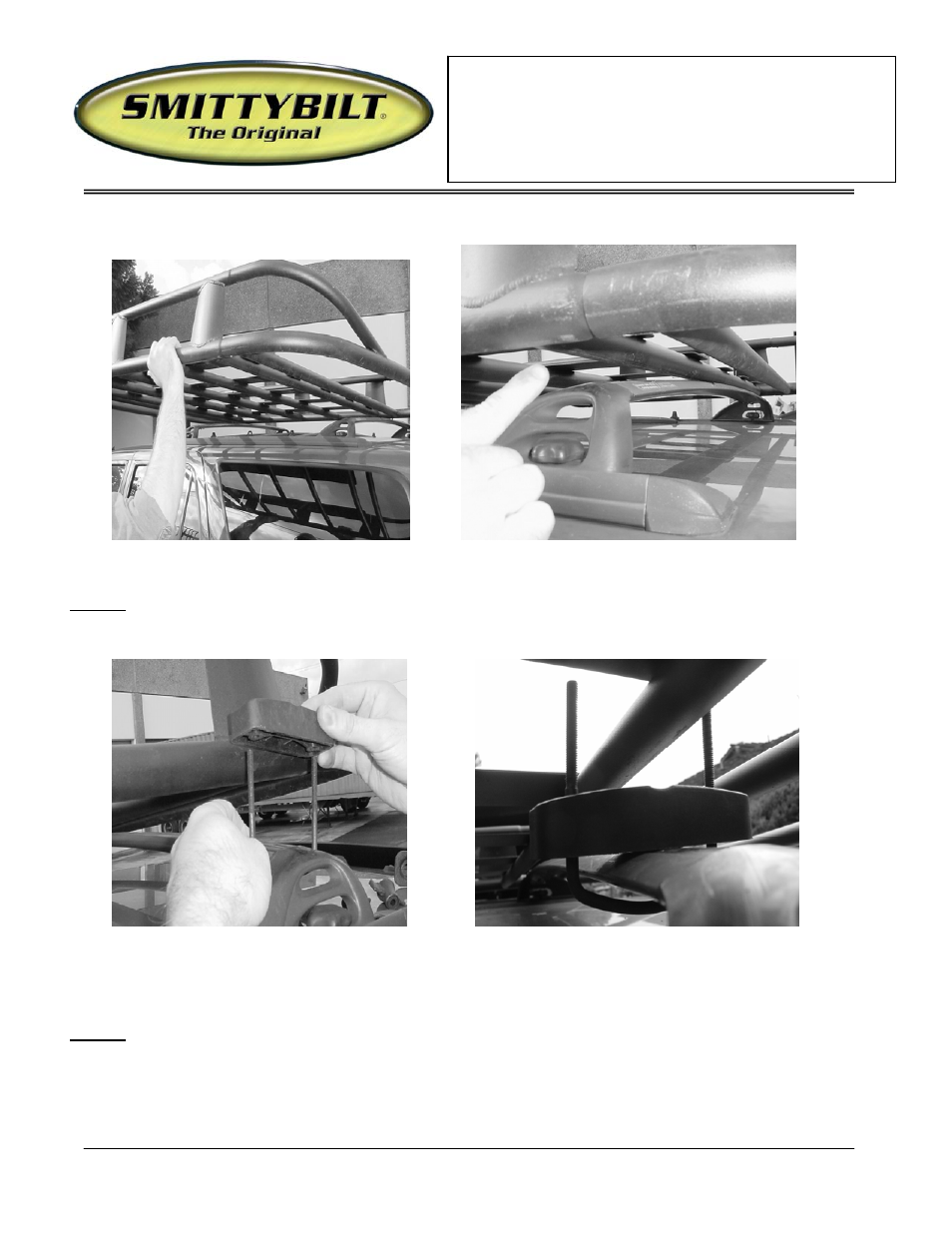

(Figure 1) (Figure 2)
Step 3: Place the lower cross bar bracket under the vehicle roof rack cross rail. Push the lower
bracket through the holes in the center cross bar bracket. (Figure 3, 4)
(Figure 3) (Figure 4)
Step 4: Place the upper cross bar bracket over the Racks cross member and push down onto the
lower cross bar bracket. (Figure 5)
