Smittybilt 17185 Rugged Rack - Manual

For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 1600 Walnut Parkway, Rancho Dominguez, CA 90220
Installation Instructions
Rugged Rack
Part # 17185
NOTE: Carefully read entire instructions thoroughly before
attempting to install this part.
Rugged Rack Assembling Components
Description Qty.
Floor slat attachment screws 25 ea.
Assembly screws
8 ea.
Side uprights 2 ea.
Front and rear uprights 2 ea.
Floor slats 5 ea.
Cross Members 5 ea.
ASSEMBLING THE RACK
Step 1: On a clean smooth surface lay out the parts. (Figure 1)
Step 2: Begin the assembly process by sliding the cross member tube into the holes on the side of the
uprights. (Figure 2) Be sure to turn the cross members so that the threaded holes are facing
up. (Figure 3)
Rugged Rack Assembling Components
Description
Qty.
Floor slat attachment screws 25 ea.
Assembly screws
8 ea.
Side uprights 2 ea.
Front and rear uprights 2 ea.
Floor slats 5 ea.
Cross Members 5 ea.

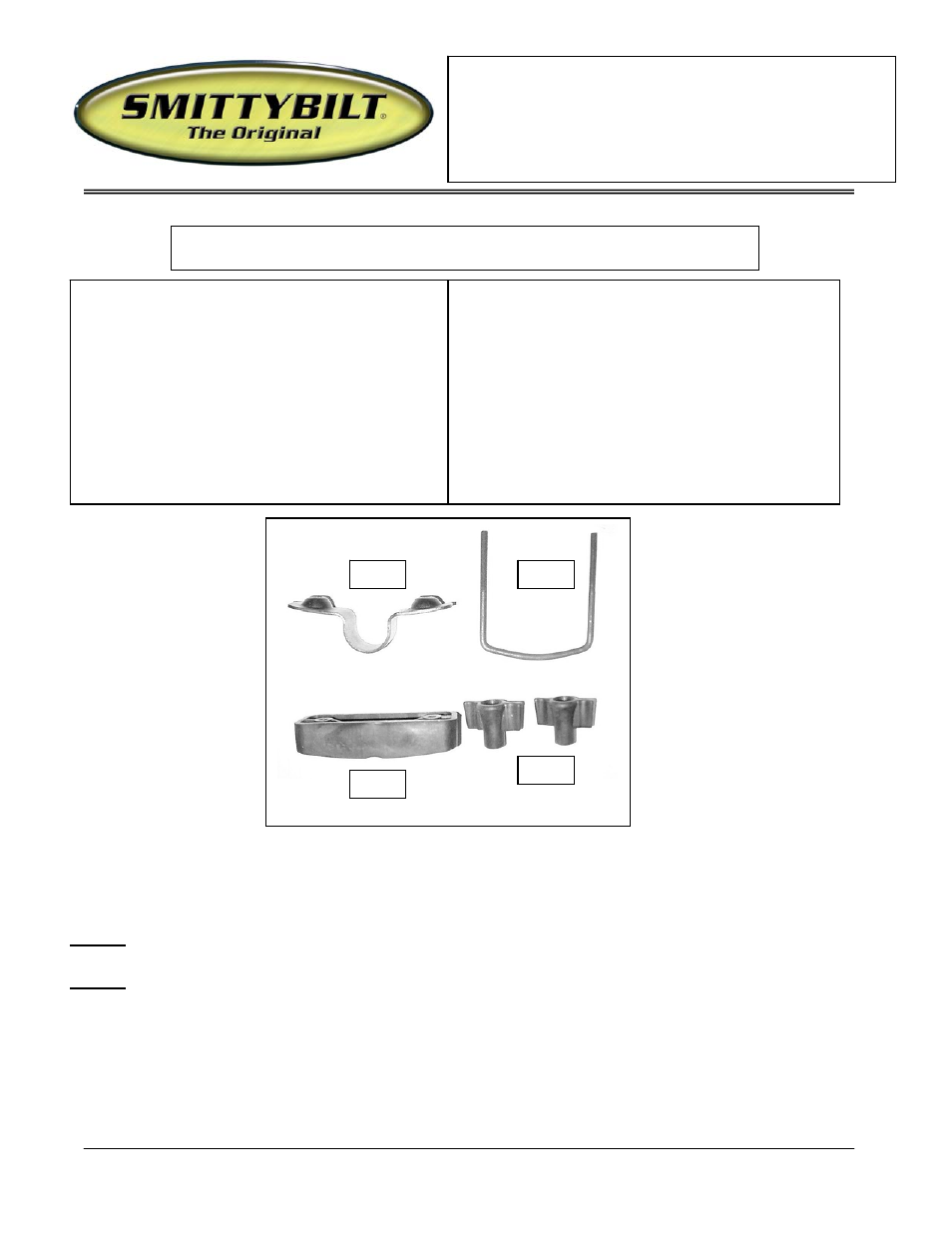

Mounting Foot Hardware
Description Qty.
#1. Upper Cross Bar Bracket 4 ea.
#2. Center Cross Bar Bracket 4 ea.
#3. Lower Cross Bar Bracket 4 ea.
#4. Wing Nuts
8 ea.
#1 #3
#4
#2
