Installation Instructions
Rear Storage Vault
07-12 Wrangler & Unlimited
Part # 2763
If using “L” brackets on the rear and or one side, insert a 5/16” hex bolt through the bracket into the box.
Begin to tighten the hex bolts. It’s best to tighten each one a little bit in a round pattern instead of one
completely at a time. This will help you get your box level as close as possible. Once all screws are secure on
the inside base of the box, proceed to tighten all of the “L” bracket hardware.
After going back to make sure all hardware is tight, re-install the drawer into the box. Installation is now
complete. (Fig O, P, Q)

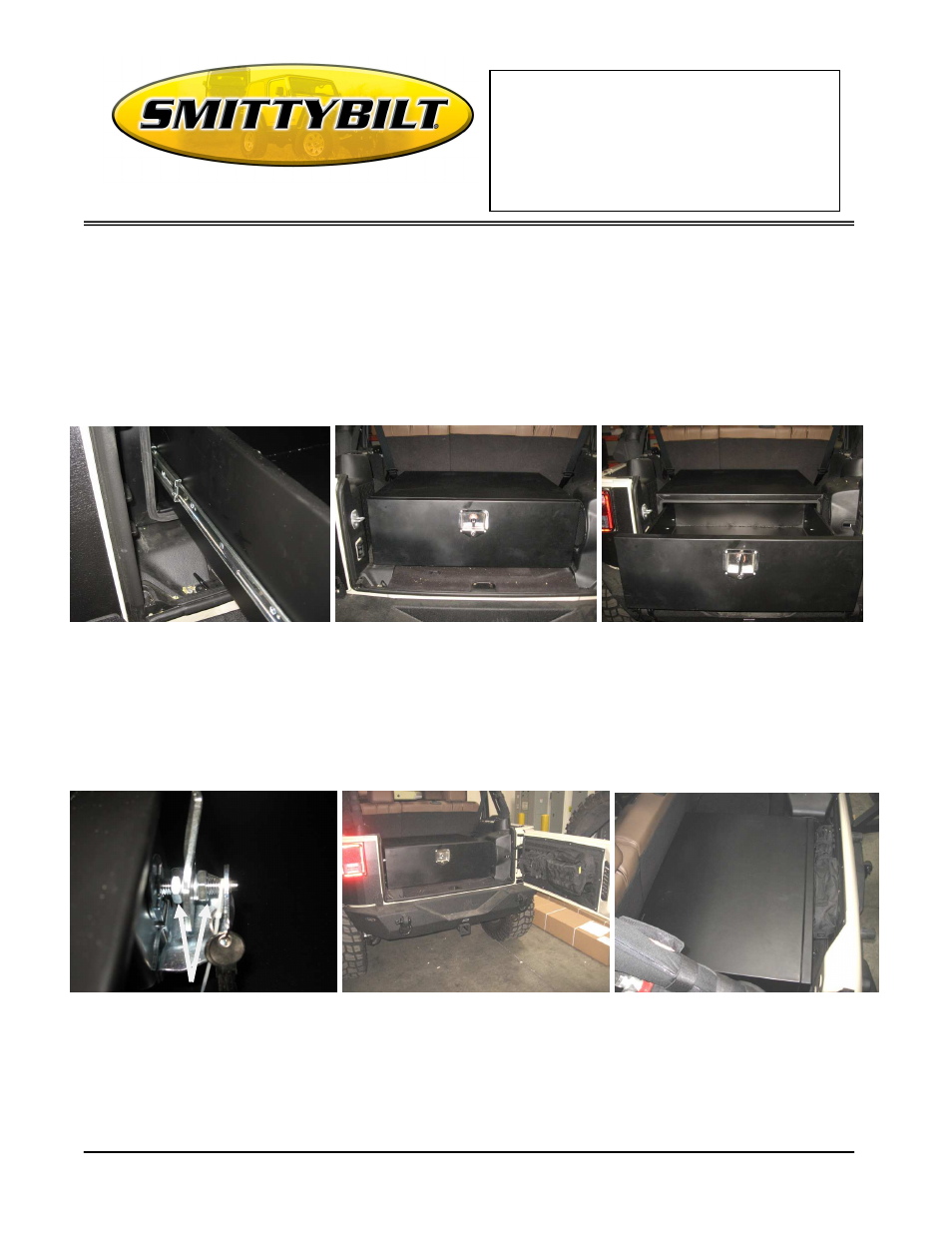

(Fig O) (Fig P) (Fig Q)
The latch is adjustable in order to get a tighter or lose fitting door by loosening, turning and the tightening
the two nuts located on each side of the latch (Fig R)
Even with Storage Vault installed you still have room to add Smittybilts GEAR tailgate cover for even
more storage. (Fig S, T)
