Installation Instructions
Rear Storage Vault
07-12 Wrangler & Unlimited
Part # 2763

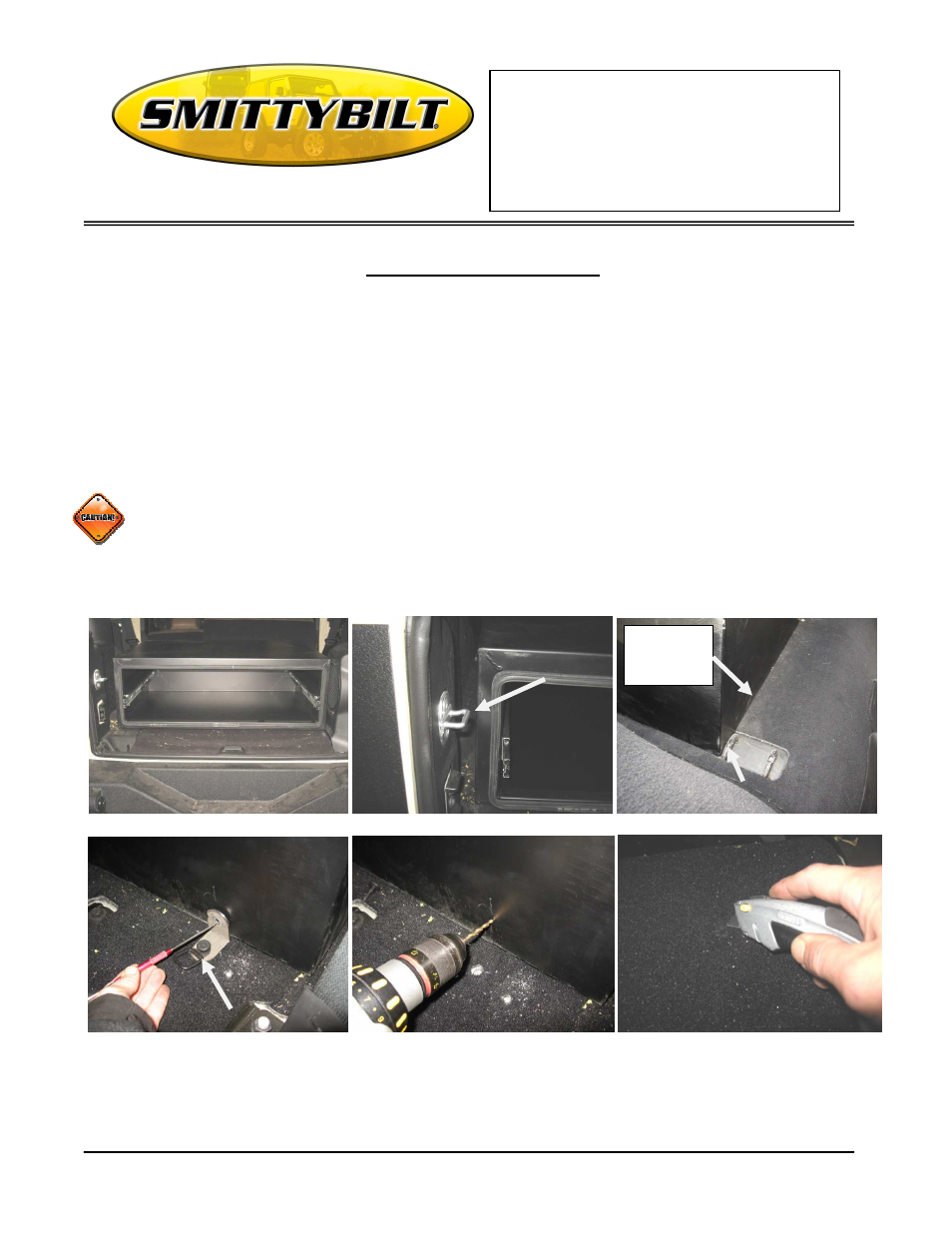

Rear “L” Mounting Brackets
On most 4-door models you can mount the rear of the box using the included “L” brackets. Fold rear seat
forward. Remove the two strap brackets using a #30 Torx bit. Place the included “L” bracket over the hole
and secure using the bolt you just removed. Use a scribe or other sharp object to mark a hole on the back of
the box then remove bracket and drill a 5/16” hole. (Fig F, G)
On 2-door models you will need to drill both holes for the rear “L” brackets. (floor and box) Place bracket in
desired location and mark holes both on the box and carpet. Its recommended to cut a small hole in the carpet
where marked in order to install the screw easier. (Fig H) Drill a pilot hole and then install bracket onto floor
using the included self tapping screws. (Fig L)
Always use caution when drilling. Make sure there are no obstructions before doing so. (Fig I)
Secure brackets to the floor. Do not attach box to the brackets at this time.
(Fig C) (Fig D) (Fig E)
(Fig F) (Fig G) (Fig H)
2-Door “L”
bracket
placement
