Installation Instructions
Bull Bar (#53037&53038)
09-On Dodge Ram
Driver Side Installation Pictured

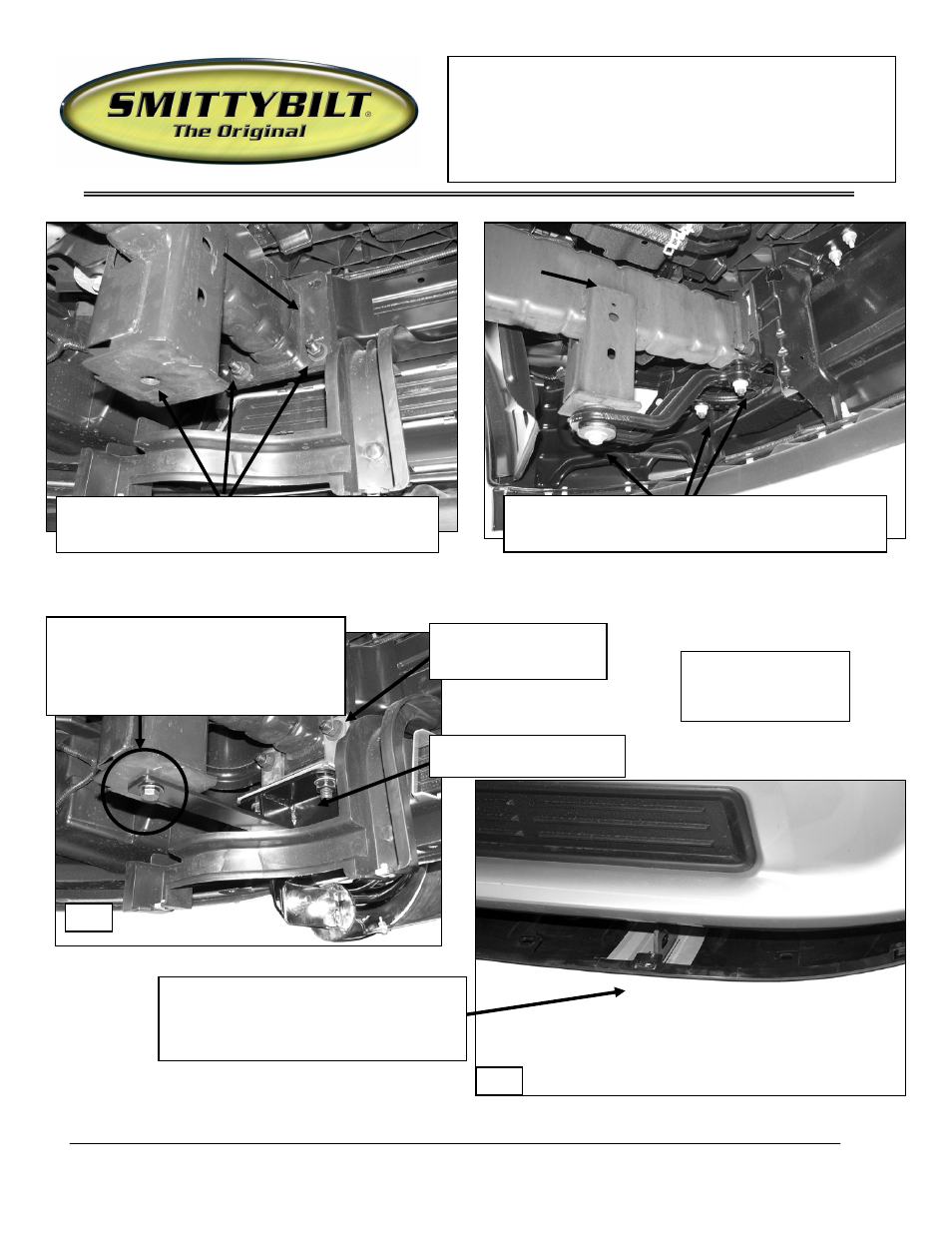

Fig 3
IMPORTANT: On trucks without tow
hooks, use only the supplied
12-1.25mm x 25mm Fine Thread Hex Bolt
12mm Flat Washer
12mm Lock Washer
(Fig 2A)
Driver side mounting locations viewed from
behind the bumper (non tow hook equipped models)
Front
(Fig 2B)
Driver side mounting locations viewed from
behind the bumper (tow hook equipped models)
Front
Installation pictured
without the splash
guard for illustration
Upper Frame Mounting
Bracket installation
Lower Frame Mounting
Bracket installation
Fig 4
Hold the splash guard up to the brackets
and mark location for cutting to clear
brackets. Cut only what is needed to
insert bracket through the splash guard.
