Installation Instructions
Bolt-On Fender Flares
Chevy Silverado 1500,2500,3500
(07-13)
Part #17290

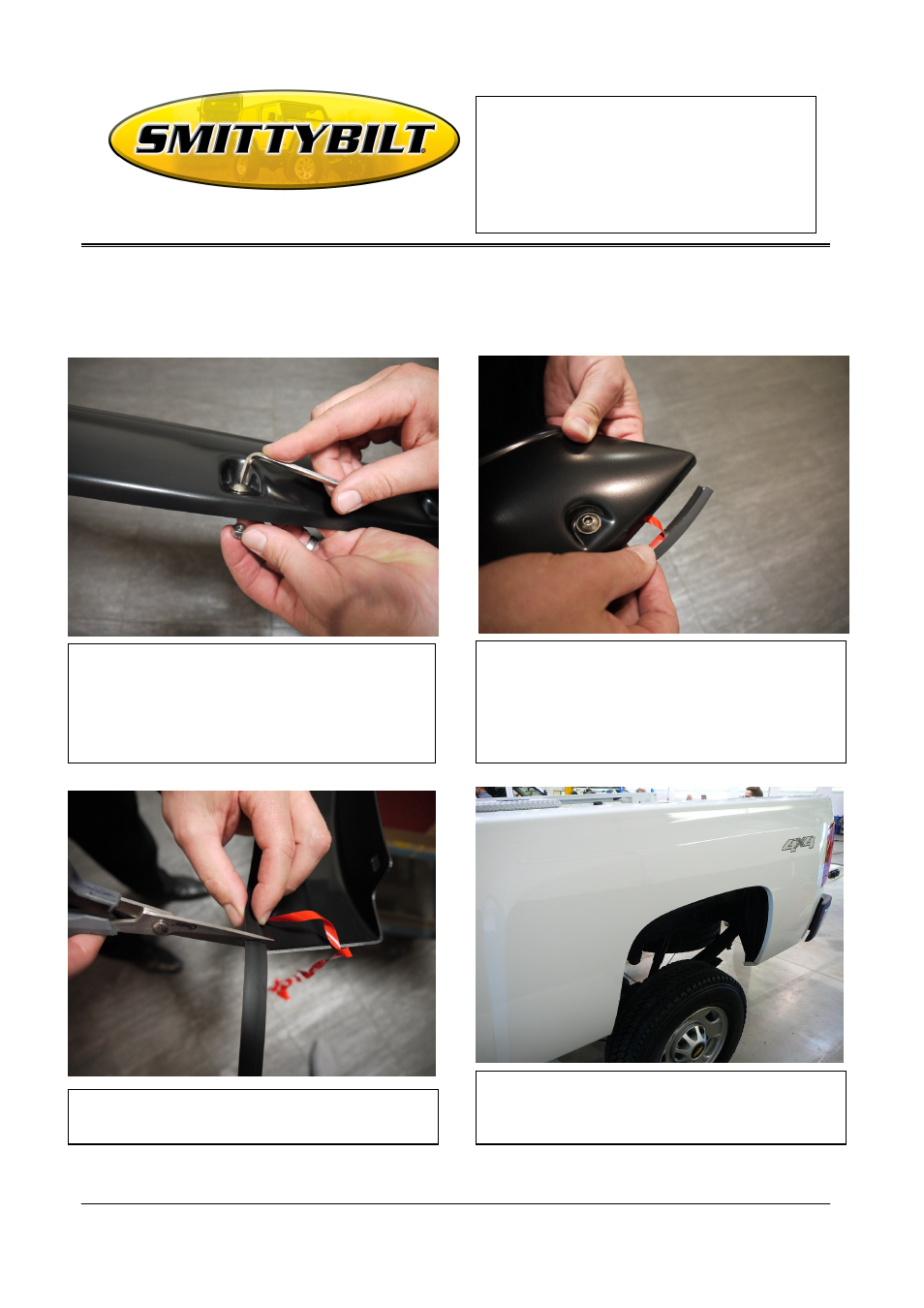

REAR FENDER FLARE INSTALLATION
STEP 10: Clean the body areas where the Fender
Flares will make contact. Ensure fenders are dry prior to
install. STEP 9: Trim any excess rubber seal and discard.
STEP 8: Attach the included rubber seal to the Fender
Flares. Peel back 2” of the adhesive backing and position
on the Fender Flare. Attach the seal to the Fender Flare,
peeling back a few inches at a time. Ensure pressure is
used to secure rubber seal to Fender Flare edge. Attach
rubber seal along all areas the Fender Flare will make
contact with the vehicle body.
STEP 7: Attach the 11 bolts, washers and nuts to each
Fender Flare using a 5/32” Allen key and a 3/8”
wrench/socket. (wrench/socket and Allen key not
supplied). Ensure inside of Fender Flares where the
rubber seal is attached is clean, using the alcohol wipes
provided. Wipe away any residue with a dry clean cloth.
