Installation Instructions
Bolt-On Fender Flares
Chevy Silverado 1500,2500,3500
(07-13)
Part #17290

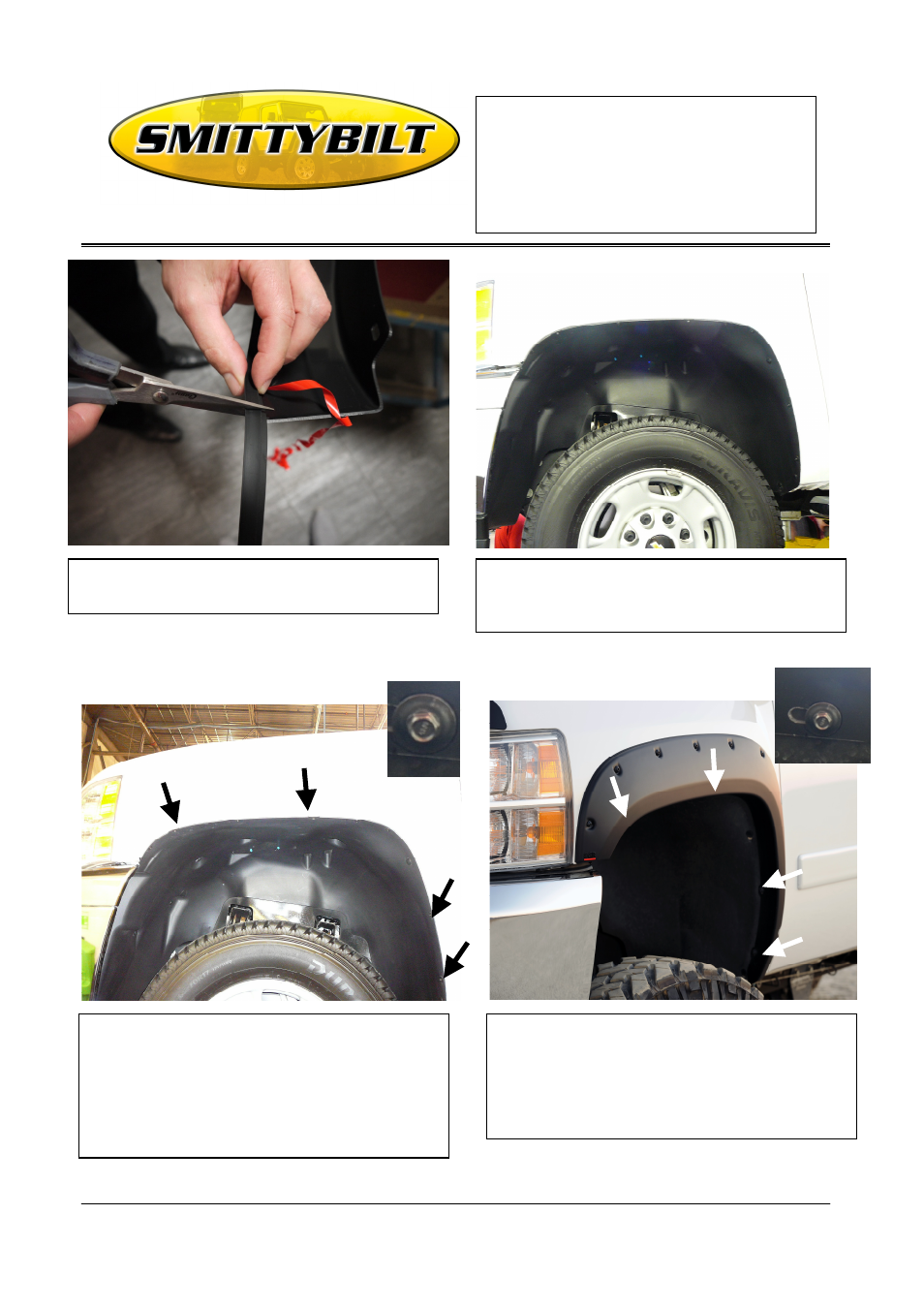

STEP 5: Place the Fender Flare on the vehicle into the
position of best fit. Note where the slots in Fender Flare
at positions A, B, C, and D align with the existing screws
in the vehicle. Remove Fender Flare. Use the original
manufacturer’s hardware that is in the wheel arch of the
vehicle to fit the Fender flares. Remove the x4 9/32”
(7mm) socket head screws from the fasteners on the
vehicle.
STEP 6: Place the front Fender Flares onto the vehicle
and line up the holes on the part with screw holes on the
vehicle. Re-Install the socket head screws into the
fender to secure the Fender Flares. Fit the Fender Flares
loosely until the Fender Flares are aligned as desired,
when satisfied tighten the screws fully to ensure rubber
seal is flush neatly against the body.
STEP 3: Trim any excess rubber seal and discard. STEP 4: Clean the body areas where the Fender
Flares will make contact. Ensure fenders are dry prior to
install.
