Lukas traversing system - Manual (Page 24)

24
3. Traversing system with a rolling carriage and hydraulic cylinder standing on it
Components required:
- 1 Hydraulic power pack
- 1 Control table
- 1 Rolling carriage
- 1
Traversing cylinder
- 1 Hydraulic cylinder
- Packing material (e.g. hardwood beams)
- Hose
lines
4. Traversing system with two rolling carriages and hydraulic cylinders standing on them
Components required:
- 1 Hydraulic power pack
- 1 Control table
- 2 Rolling carriage
- 1
Traversing cylinder
- 2 Hydraulic cylinder
- Packing material (e.g. hardwood beams)
- Hose
lines

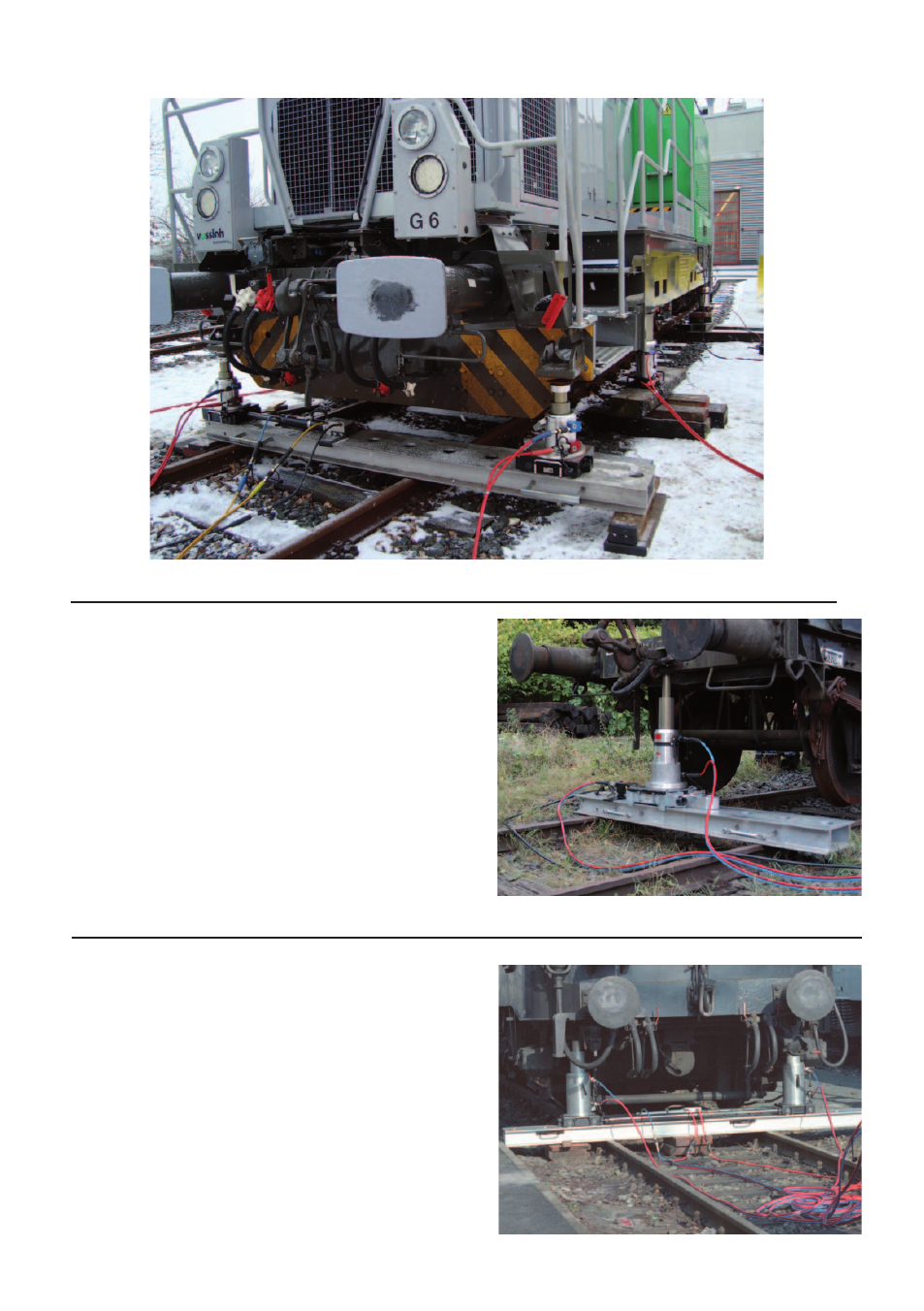

Example illustration two point lifting
