42

Chapter 2

Installing or Replacing Components

6

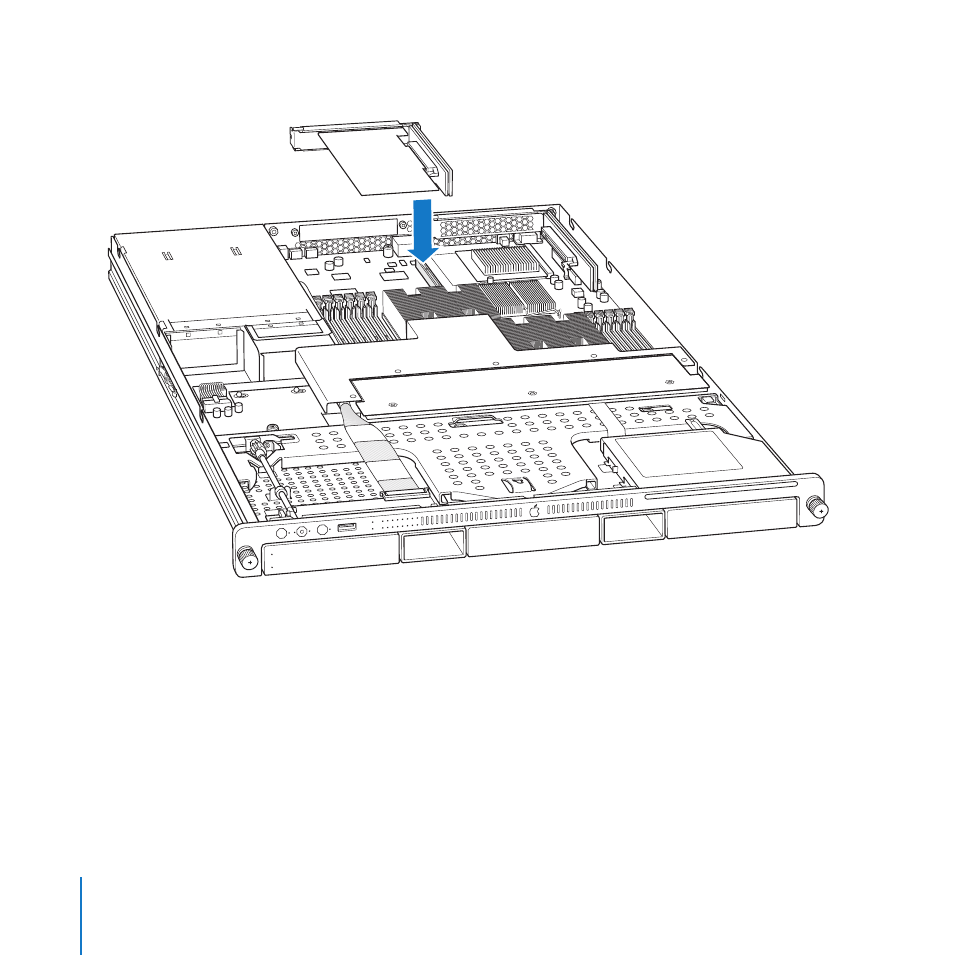

Align the riser with the slot on the main logic board and press to seat it.

7

Tighten the captive screws that secure the riser bracket to the back panel.

8

Return the Xserve to the rack and start it up.

9

Configure the card.

To configure an Ethernet card, open the Network pane of System Preferences.
To configure a Fibre Channel card, open Fibre Channel pane of System Preferences.
