14
Press the suction plate of the sup-
port against the glass.
Push the lever on the suction cup
towards the glass.
The track for mounting the Lucca
must be aligned vertically.
Removing the Suction Cup
If you change vehicles, you can simply
remove the suction cup.
Push the lever on the suction cup
away from the glass.
Carefully loosen the suction plate
at the edge from the glass so that
air can enter between suction cup
and glass.
Carefully pull the suction cup off
of the glass.
➜
➜
➜
➜
➜
➜

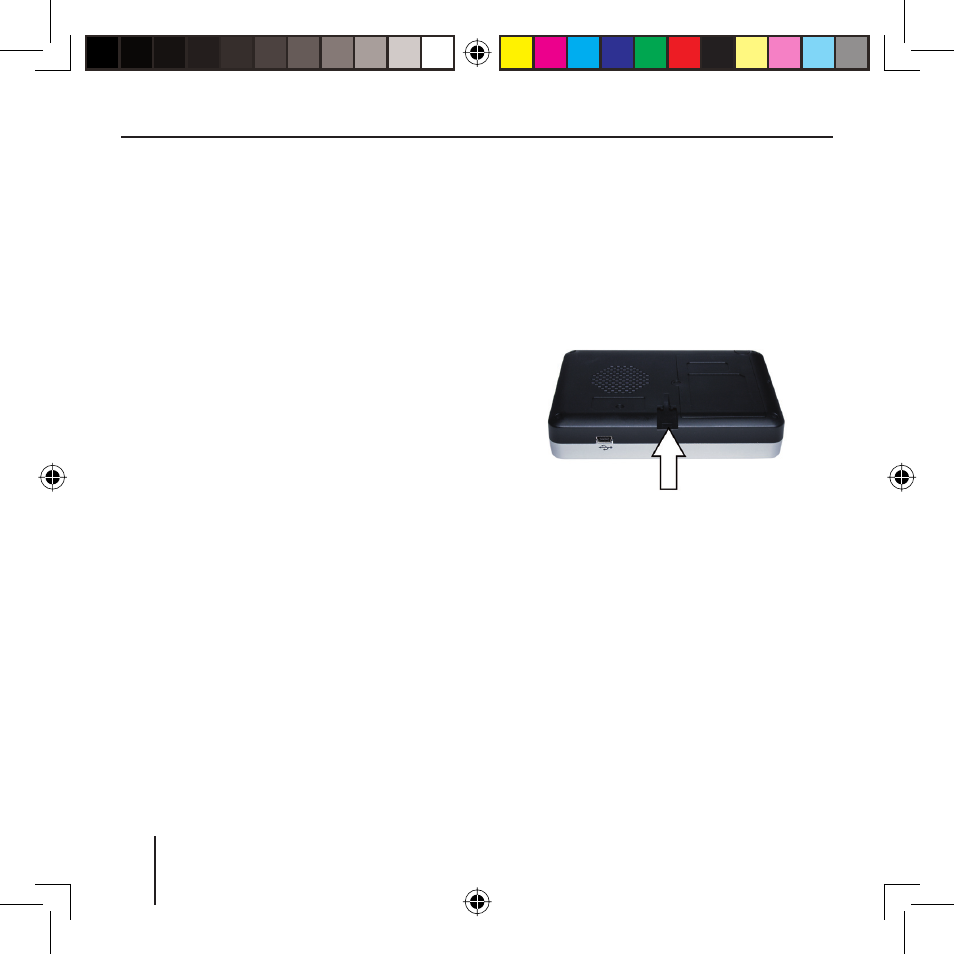

Installing Lucca in the Suction Cup
The suction cup features a track for
mounting the Lucca on the inside.
Carefully push the guide of the
Lucca over the track of the suc-
tion cup.
Removing the Lucca
Pull the Lucca up and out of the
suction cup.
➜
➜
Installation in the Vehicle
