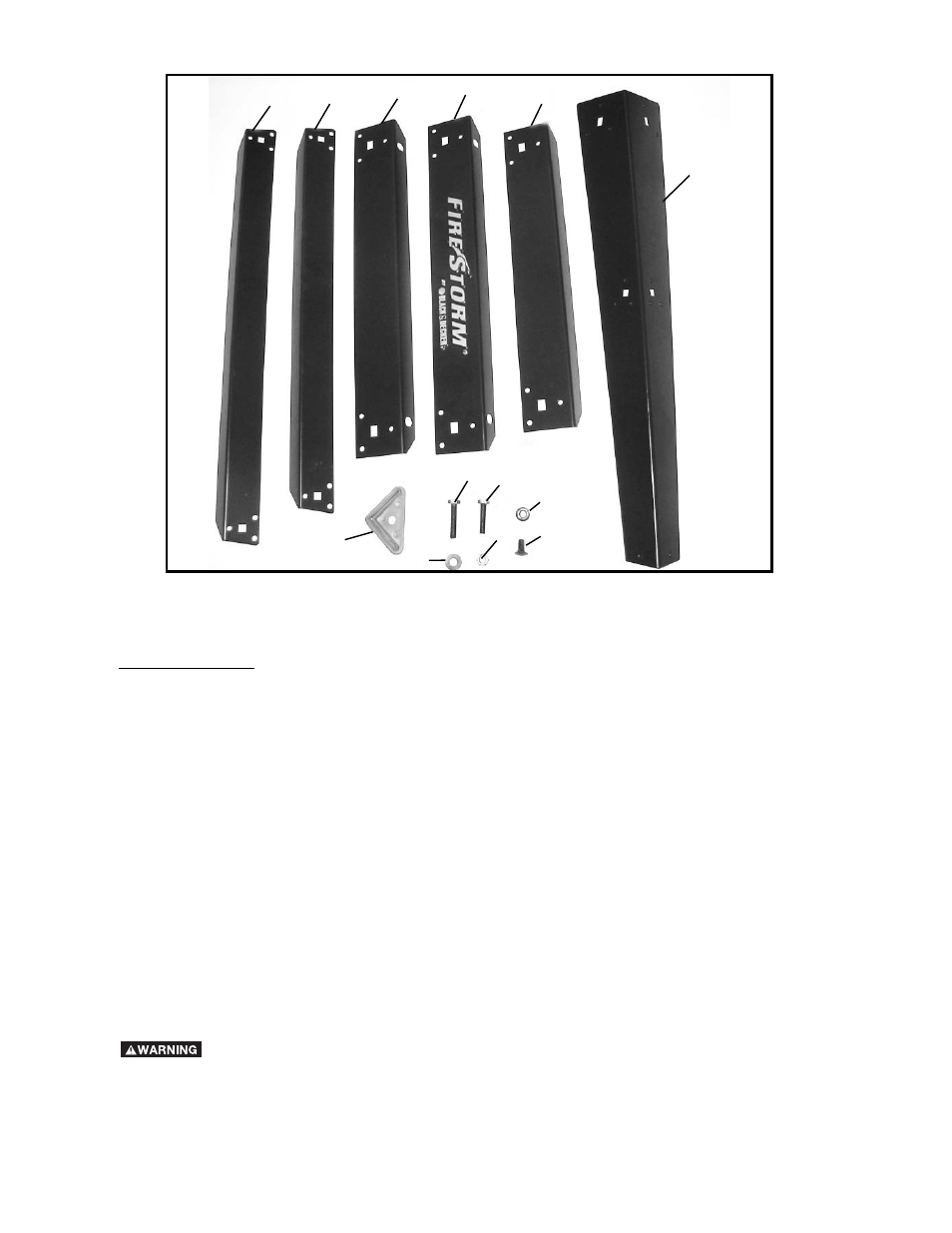

Fig. 3
STAND PARTS
53-Leg(4)
54-Top side Bracket(2)
55-Top Front Bracket
56-Top Rear Bracket
57-Bottom side Brackets(2)
58-Bottom Front Brackets(2)
59-Foot(4)
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL
THE MACHINE IS COMPLETELY ASSEMBLED. DO NOT OPERATE THIS MACHINE UNTIL YOU READ AND
UNDERSTAND THE ENTIRE INSTRUCTION MANUAL
53
54
55
56
57 58
60
61
62
63
59 64
65
60-M8X1.25X45mm Hex Head Screw for Leg and
Base(2)
61-M8X1.25X30mm Hex Head Screw for Leg and
Base(2)
62-5/16 in.Hex lock Nut(16)
63-5/16 in.Carriage Bolt(16)
64-M8 Hex Nut(4)
65- M8 Flat washer(8)
