ASSEMBLING BLADE
RAISING AND LOWERING
HANDWHEEL

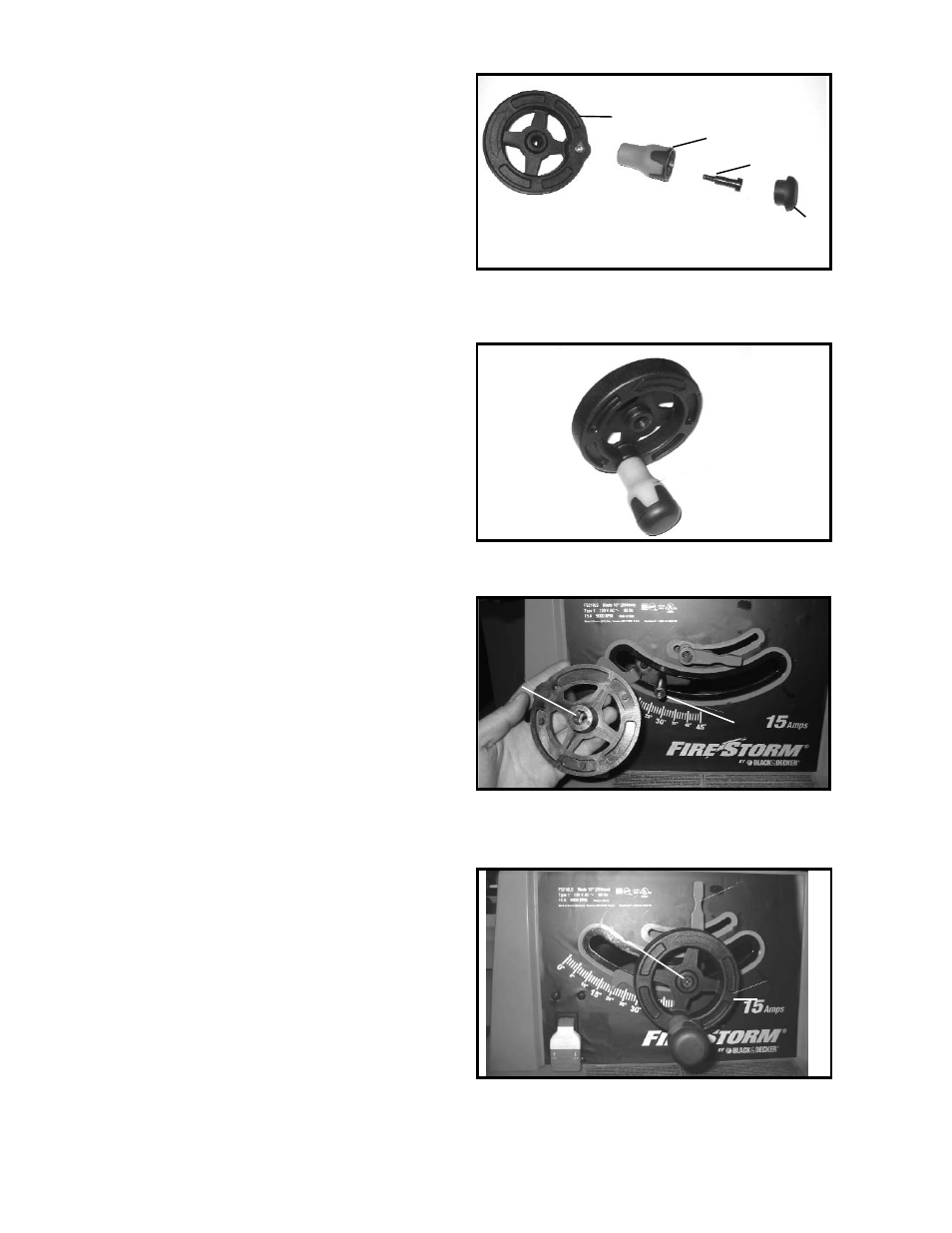

1. Insert special screw (C) through handle (B) Fig.10 and
assembly handle to handwheel (A) by threading screw
clockwise into handwheel. Then push on handle cover
(D).
2. Fig. 11, illustrates the handle (B) assembled to
handwheel (A).
3. Assemble handwheel (A) Fig. 12, to shaft (B) making
sure the flat on inside of handwheel lines up with flat on
shaft.
4. Fasten handwheel (A) Fig. 13, to shaft (B) Fig. 12,
using a M6x1x12mm flat head screw (C) Fig. 13.
Fig. 10
Fig. 11
Fig. 12
Fig. 13
A
B
A
C
A
B
C
D
