HVAC Setup on Screen
IMPORTANT:
Make sure the CT100 is powered up and
the mode is set to OFF. Remember that the two
HVAC selection switches must be set irst [pg 8].

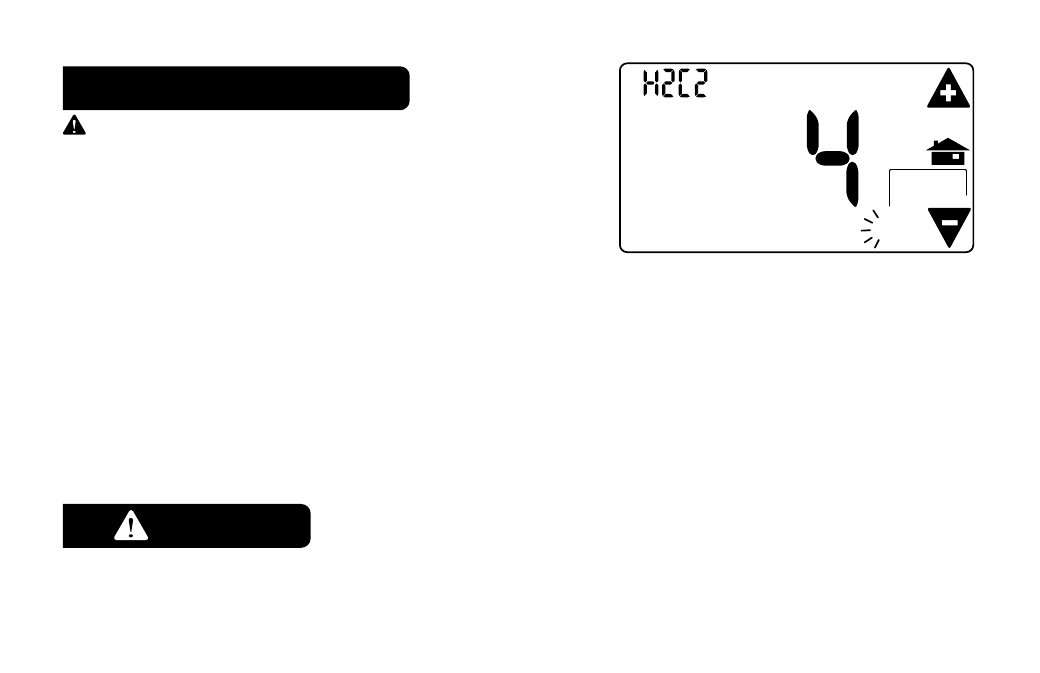

• With mode in OFF press MENU and touch HVAC SETUP.
• Use +/- icons to select HVAC SET UP number on screen.
The LCD display will show your selection and indicate the
number of stages you have selected. During setup, 2nd STG
will blink when both heat and cool have 2nd stages.
If you have a Normal HVAC system...
HEAT and COOL select
1
2 stage HEAT, 1 stage COOL select 2
1 stage HEAT, 2 stage COOL select 3
2 stage HEAT, 2 stage COOL select 4
Caution
Do not change
the HVAC setup or HVAC selection switches if the thermostat is included to Z-Wave network. The
HVAC system must be changed, irst EXCLUDE the thermostat from the network, change the HVAC
setup, and INCLUDE the thermostat to the network.
If you have a HEAT PUMP HVAC system...
HEAT PUMP with no AUX heat select A
2 stage HEAT PUMP with no AUX select b
HEAT PUMP with AUX heat select C
HEAT PUMP with 2 stage AUX heat select d
2 stage HEAT PUMP with AUX heat select E
2 stage HEAT PUMP with 2 stage AUX heat select F
HEAT
2 ND
STG
HVAC
SETUP
COOL
