AEM 30-8760 CAS Trigger Disc User Manual
Page 6
Page 6 of 9

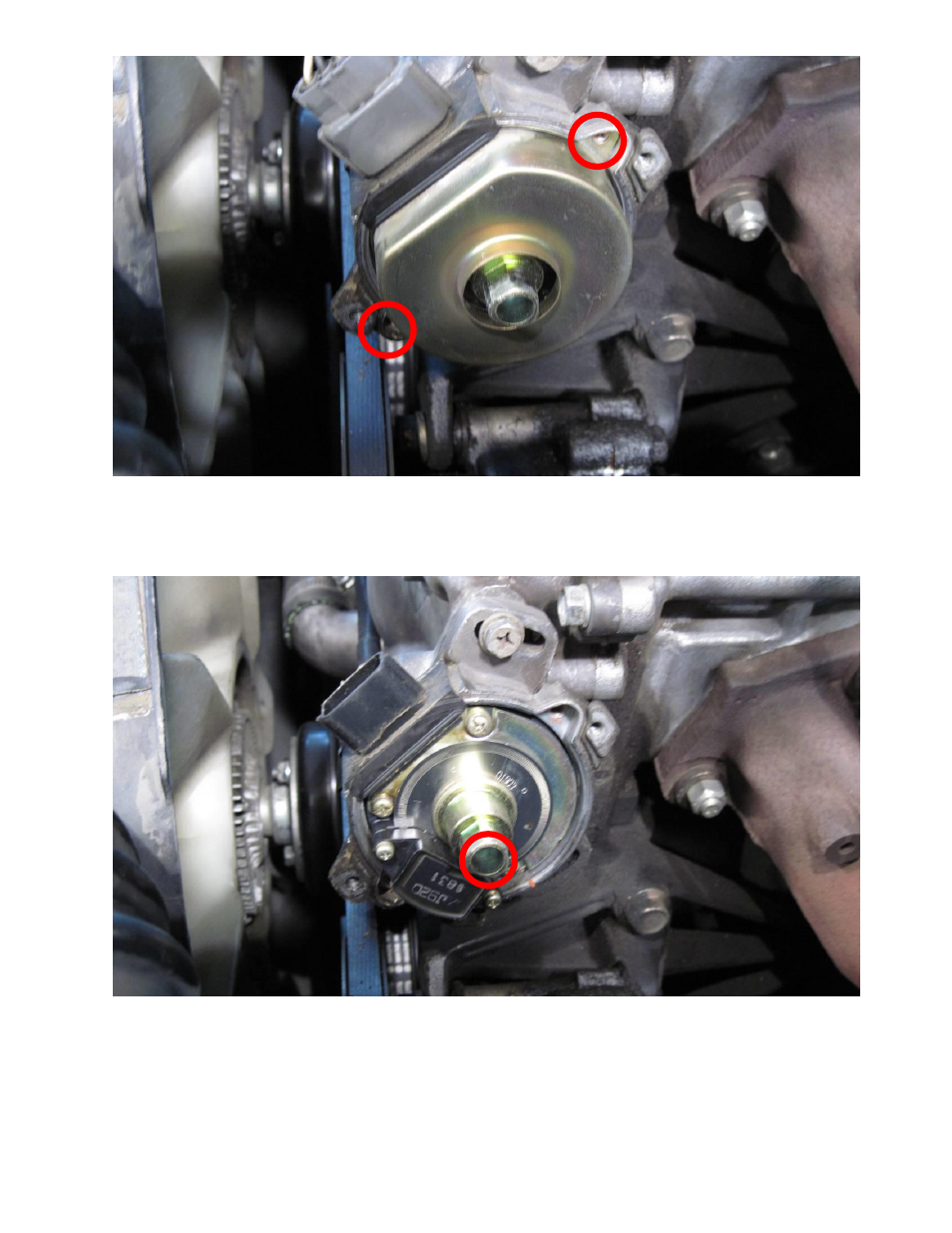

Remove the internal CAS disc cover shown in figure 7 with a #2 Phillips screwdriver.
Figure 7: Removal of internal CAS disc cover
Remove the screw holding the CAS disc and collar as shown in figure 8 with the #2
Phillips screwdriver (Make sure screwdriver is firmly planted since this screw will be very
tight).
Figure 8: Original CAS disc removal
