AEM 30-8760 CAS Trigger Disc User Manual
Page 5
Page 5 of 9

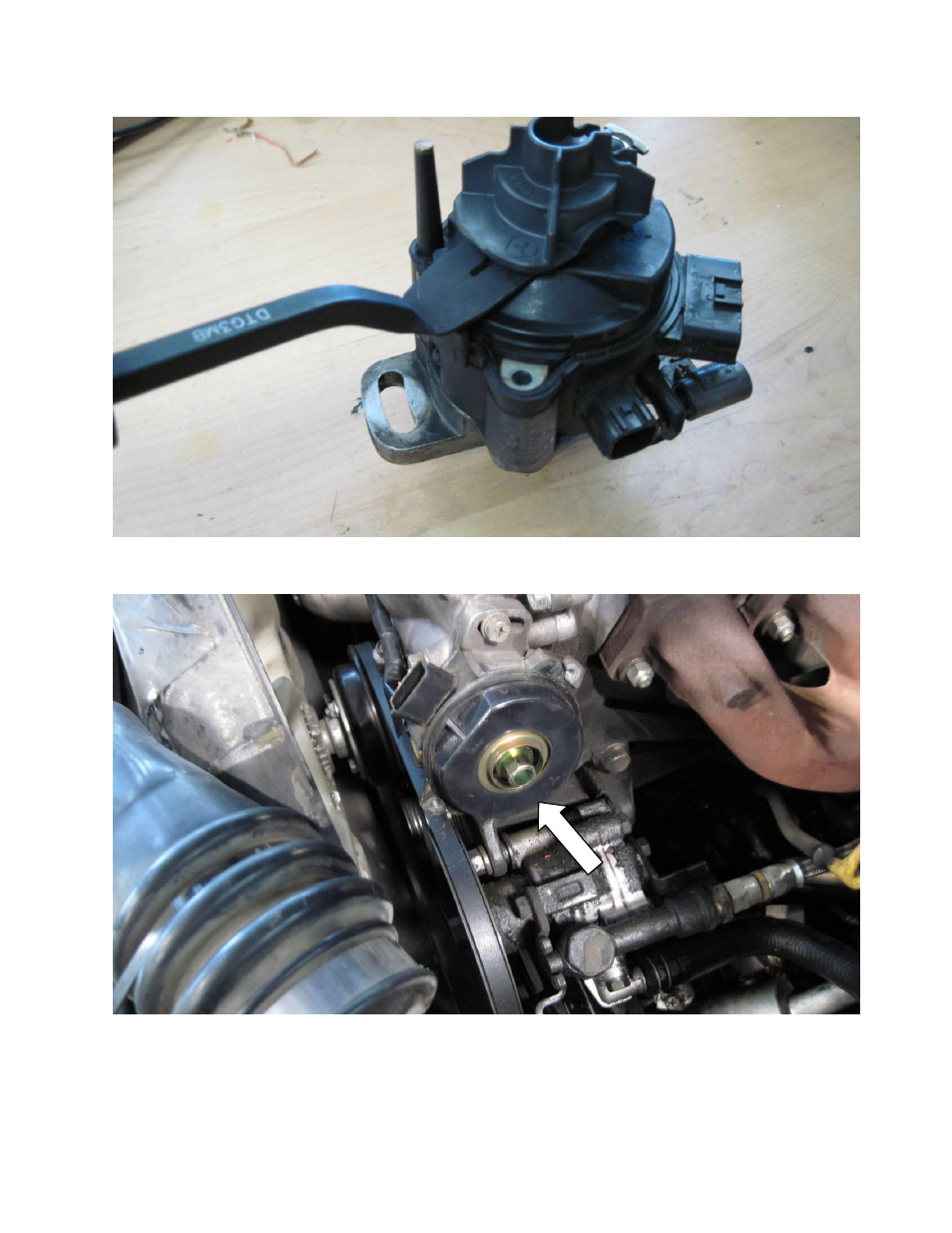

Remove the distributor rotor with carefully with the pry bar as shown in figure 5, taking
note of how the rotor was oriented on the shaft. (The photo shows a different distributor
that has the same type of rotor installation)
Figure 5: Distributor rotor removed with pry bar
Remove the internal plastic cover shown in figure 6.
Figure 6: Internal plastic cover to be removed
