AEM 30-6311 Series 2 Plug & Play EMS User Manual
Page 5
Page 5 of 12
Application Notes for EMS P/N 30-6311
1991-1997 3000GT VR4 / Stealth TT
Make:
Mitsubishi/Dodge
Spare Injector Drivers:
Inj 7, Pin 116
Model:
3000GT VR4 / Stealth TT
Spare Injector Drivers:
Inj 8, Pin 6
Years Covered:
1991 – 1997
Spare Injector Drivers:
Inj 9, Pin 83
Engine Displacement:
3.0L
Spare Injector Drivers:
Inj 10, Pin 105
Engine Configuration:
V6
Spare Injector Drivers:
Inj 11, Pin 89
Firing Order:
1-2-3-4-5-6
Spare Injector Drivers:
Inj 12, Pin 104
N/A, S/C or T/C:
Turbocharged
Load Sensor Type:
Karman Vortex MAF
Spare Coil Drivers:
Coil 4, Pin 91
# Coils:
3 (wasted spark)
Spare Coil Drivers:
Coil 5, Pin 82
Ignition driver type:
0-5V, Falling Edge trigger
Spare Coil Drivers:
Coil 6, Pin 85
# Injectors:
6 (P&H drivers: Inj1-6)
Boost Solenoid:
PW 2, Pin 102
Injector Flow Rate:
370 cc/min
EGT 1 Location:
Pin 54
Injector Resistance:
2.3 Ω
EGT #2 Location:
Pin 90
Factory Inj Resistors:
Yes
EGT #3 Location:
Pin 112
Injection Mode:
Sequential
EGT #4 Location:
Pin 111
Knock Sensors used:
1
Spare 0-5V Channels:
MAF, Pin 59
Lambda Sensors used:
2 (aftermarket wideband:
Spare 0-5V Channels:
ADCR12, Pin 65
factory O2 not supported)
Spare Low Side Driver:
Low Side 1, Pin 109
Idle Motor Type:
Stepper
Spare Low Side Driver:
Low Side 2, Pin 21
Main Relay Control:
Yes (Switch1 in, Coil7 out)
Spare Low Side Driver:
Low Side 3, Pin 71
Crank Pickup Type:
Hall
Spare Low Side Driver:
Low Side 4, Pin 9
Crank Teeth/Cycle:
6
Spare Low Side Driver:
Low Side 5, Pin 90
Cam Pickup Type:
Hall
Spare Low Side Driver:
Low Side 9, Pin 20
Cam Teeth/Cycle:
2
Check Engine Light:
Low Side 10, Pin 106
Transmissions Offered:
M/T
Spare Switch Input:
Switch 3, Pin 24
Trans Supported:
M/T Only
Spare Switch Input:
Switch 4, Pin 7
Drive Options:
AWD
Spare Switch Input:
Switch 5, Pin 107
Supplied Connectors:
Connector B, spare pins
Spare Switch Input:
Switch 6, Pin 114
Plug-N-Pin kit:
AEM part# 35-2611
A/C Switch Input:
Switch 2, Pin 115
(includes plugs A-D, pins)
Clutch Switch Input:
---
Notes:
The connector numbering convention differs between the 91-93 and 94-97 models. The numbers listed

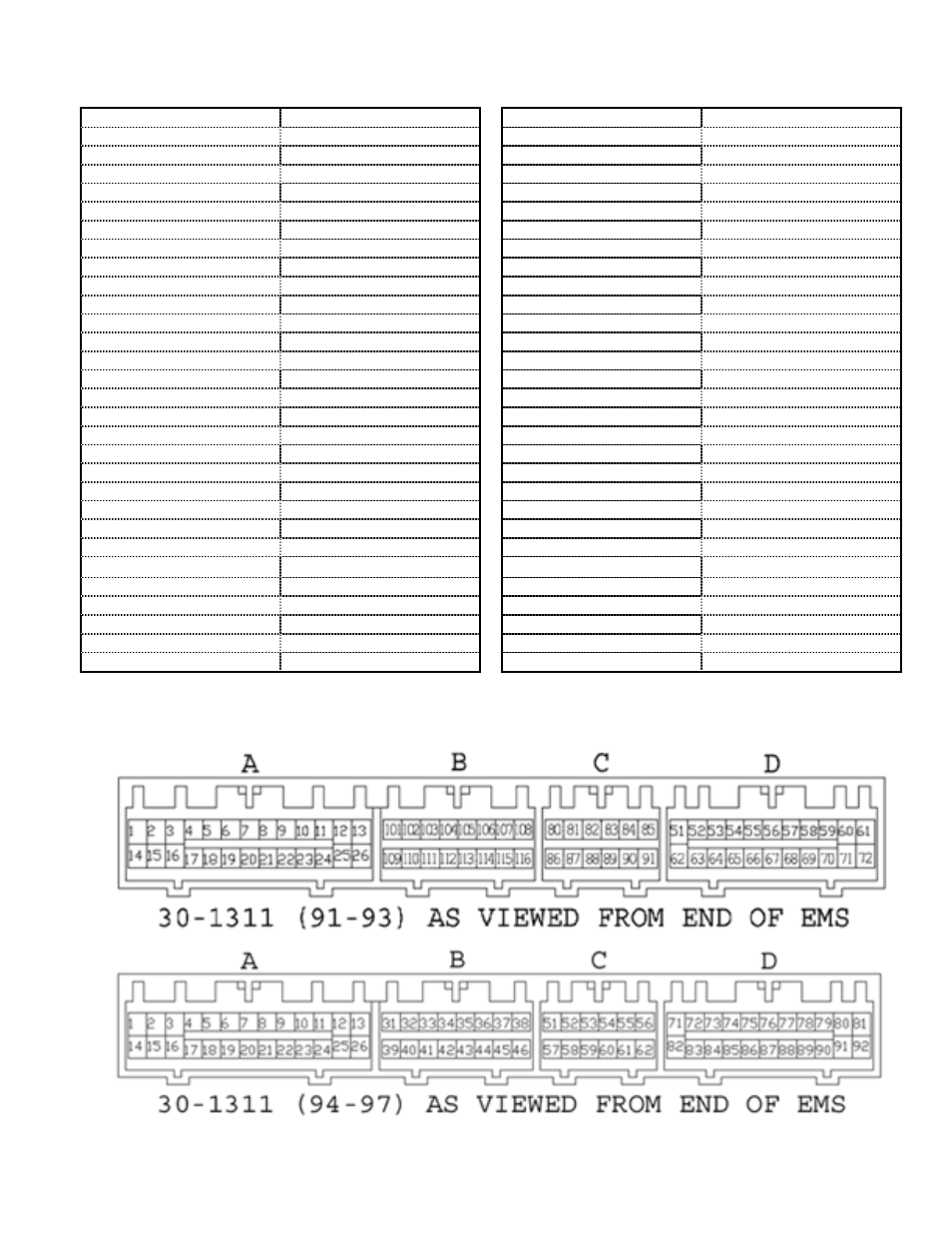

above are for the 91-93 only. Please refer to the connector face diagram below to determine the proper
connector number for your year.
