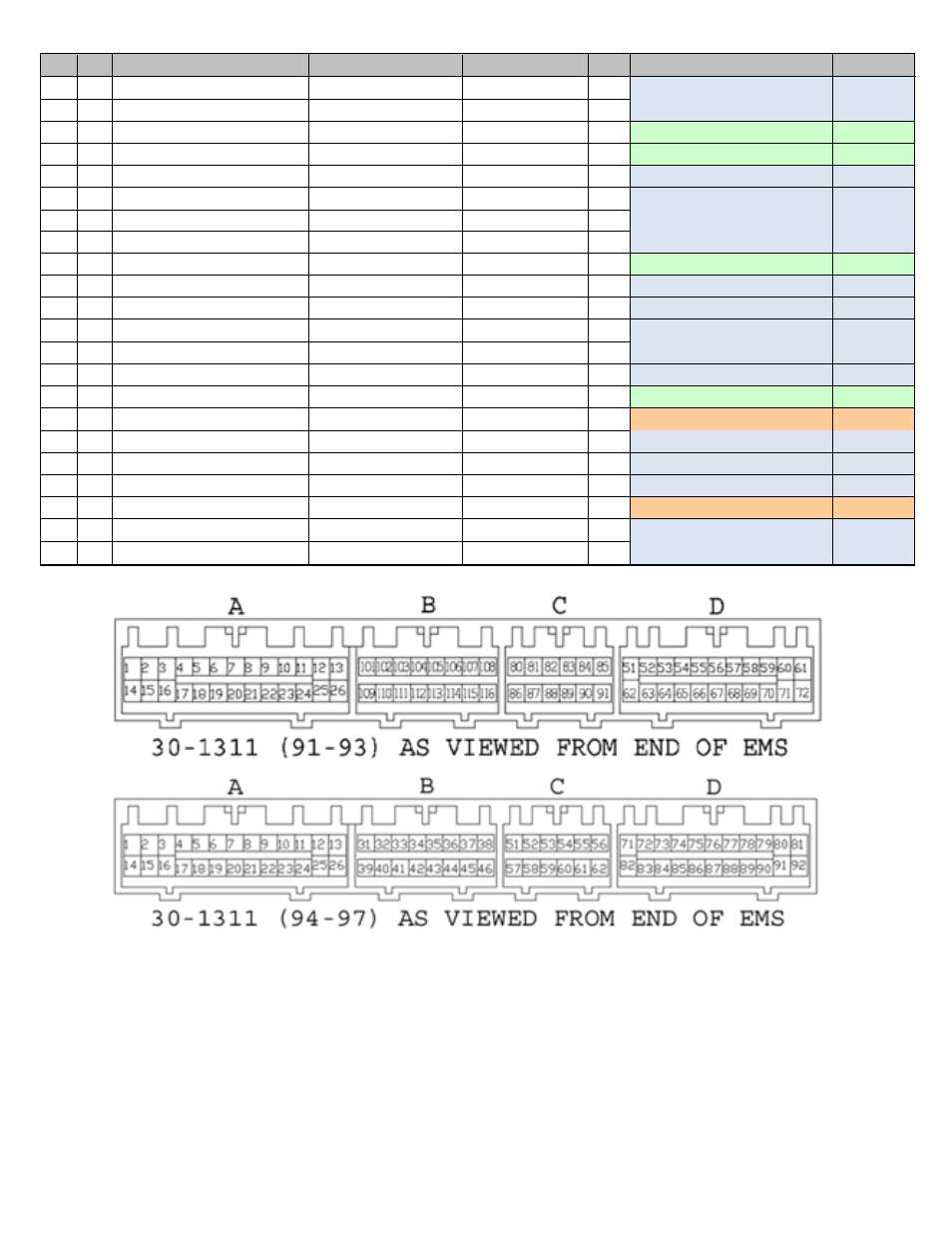

AEM 30-6311 Series 2 Plug & Play EMS User Manual
Page 10
Page 10 of 12
91-93 94-97
91-93 3000 GT
94-97 3000 GT
AEM EMS 30-6311
I/O
91-93 Notes
94-97 Notes
51
71
Starter Signal
<---
Main Relay (Start sw) Input Dedicated, activates Switch 1 input
<--
52
72
Intake Air Temp Sensor
<---
AIT
Input Dedicated, 2.2k ohm pull-up to 5V
<--
53
73
EGR Temp Sensor
Right O2 Rear (96-97)
MAP
Input
Avail, 0-5V MAP sensor input
<--
54
74
---
Manifold Diff Press (96-97)
EGT #1
Input
Avail, jumper set for 0-5V Input
<--
55
75
Right Bank O2 Sensor
<---
O2 #2
Input
Dedicated, 0-5V signal
<--
56
76
Left Bank O2 Sensor
<---
O2 #1
Input
Dedicated, 0-5V signal
<--
57
77
---
---
CAN1L
---
Dedicated
<--
58
78
Knock Sensor
<---
Knock #1
Input
Dedicated, software knock filter
<--
59
79
---
Left O2 Sensor Rear (Cal)
MAF
Input
Available, 0-5V sensor input
<--
60
80
Battery Back Up
<---
Permanent +12V
Input Dedicated, used to store internal log
<--
61
81
5V sensor reference power
<---
+5V Sensor
Output
Dedicated, sensors only
<--
62
82
Ignition Switch
<---
Main Relay (Ign sw) Input Dedicated, activates Switch 1 input
<--
63
83
Engine Coolant Temp. Sensor
<---
Coolant
Input Dedicated, 2.2k ohm pull-up to 5V
<--
64
84
Throttle Position Sensor
<---
TPS
Input Dedicated, 100k ohm pull-up to 5V
<--
65
85
Atmospheric Press. Sensor
<---
Baro Volts
Input
Available, 0-5V sensor input
<--
66
86
Vehicle Speed Sensor
<---
T3 (Vehicle Speed) Input
PnP for Vehicle Speed Sensor
<--
67
87
Throttle Position Switch
<---
CAN1H
---
Dedicated
<--
68
88
Camshaft Position Sensor
<---
Cam
Input
Dedicated, Camshaft sensor
<--
69
89
Crankshaft Position Sensor
<---
Crank
Input
Dedicated, Crankshaft sensor
<--
70
90
Volume Air Flow Sensor
<---
T4 (Spare Speed)
Input
PnP for frequency MAF input
<--
71
91
Ground
<---
Ground
Input
Dedicated
<--
72
92
Sensor Ground
<---
Sensor Ground
Output
Dedicated, sensors only
<--
