Step 5 – Place masking tape on the hood around perimeter of template, if desired, to prevent excessive
scratching.
NOTE: USE 1/16” BIT AS PILOT HOLE FOR 1/4” BIT TO BETTER ENSURE ACCURACY!
Step 6 – Using 1/4” Bit, drill one hole through the template
and hood at either corner, as shown in (Figure 2).
Install and tighten the supplied 10-32 screw and nut.
Then drill a second hole in the opposite corner of
Template and install and tighten supplied 10-32 screw
And nut. This will ensure template stays in place
while drilling and cutting.
**Important** DO NOT MOVE TEMPLATE UNTIL STEP #9
Step 7 – Continue to drill the rest of the perimeter holes with the 1/4” Bit.
Step 8 – Once drilling is completed, Use 1” Hole saw and drill each corner of the 5 panels (20 times total). With
template still in place, use jigsaw/cutoff wheel to cut out all 5 panels.
C:\Users\RHerd\AppData\Local\Temp\CJ-50HLP InstallationInstructions.doc
Page 3 of 4
REV 0 06/17/09

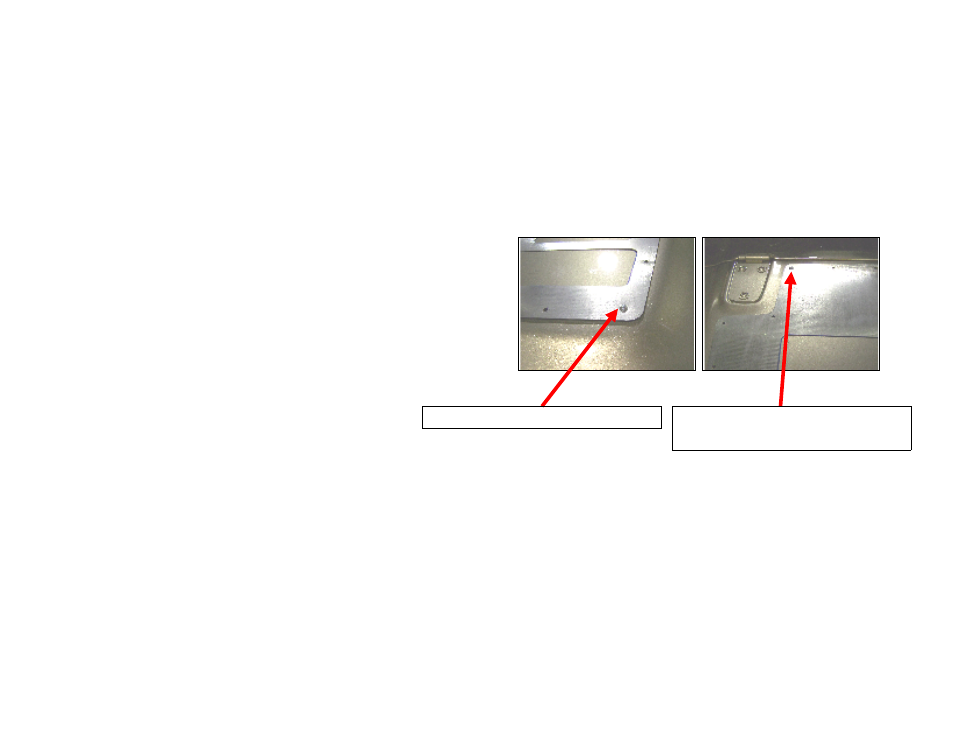

Drill & Install first 10-32 screw here. Drill & Install second 10-32 screw
here.
Figure 2
