GrimmSpeed Subaru Lightweight Crank Pulley User Manual
Page 2
G
rimm
s
peed
2

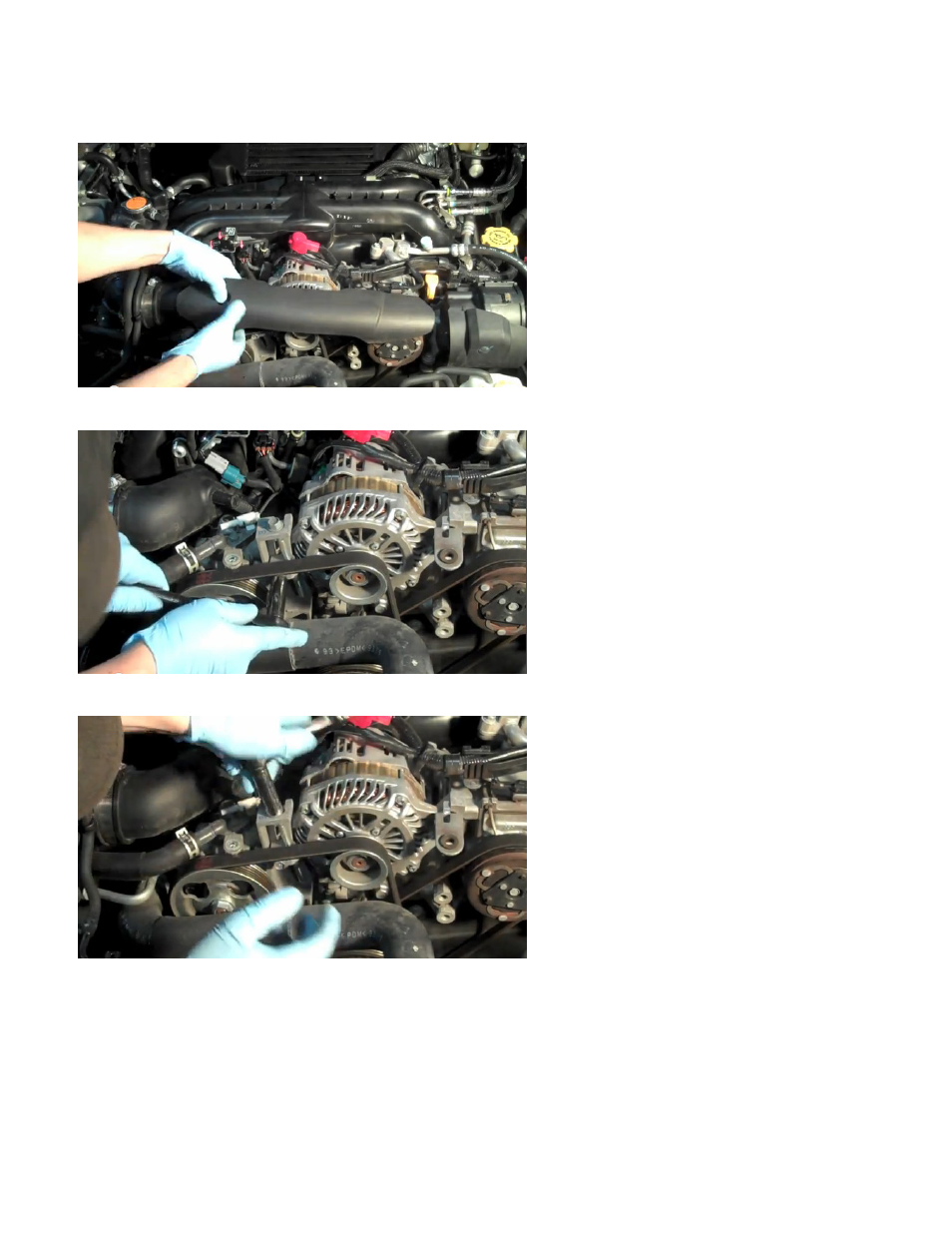

2. Using a 10mm wrench, remove the accessory belt guard. Once the bolt and nut is
removed, you can unsnap it. Gently unsnap the 2 snap locations independently and do not
pry from just one side. If not careful, it can crack.
3. Using a 12mm socket, loosen the alternator tension lock bolt.
4. Then loosen the tensioning rod with a 12mm socket.
