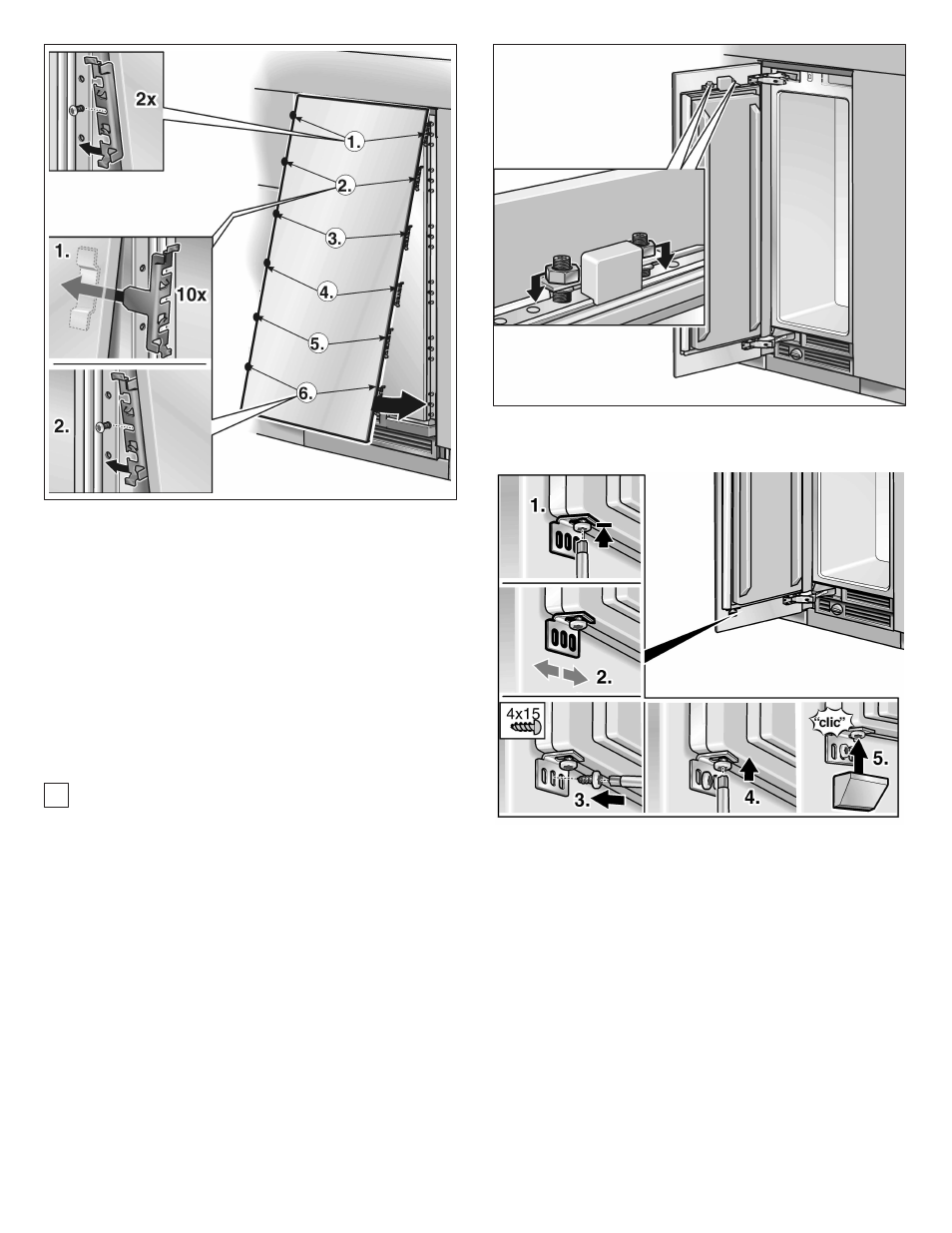

q Attach the bracket:
- Lift the furniture door slightly away from the
appliance door.
- Push the side bracket (1.) on the left and right
over the screws.
- Insert the side bracket (2.) on the left and right
into the fixing plate and slide over the screw.
Slowly lower the door.
Continue the process until the last side brackets
(6.) have been inserted into the fixing plates and
are positioned on the screws.
i The two upper brackets (1. ć on the left and right)
have no side piece for insertion into the fixing plate.
q Close the door and check that the depth of the
furniture front is aligned with the adjacent fronts.
If required, correct.
q Tighten the bracket screws to fix the depth
alignment.
q Close the door and check the side alignment.
Correct by gently tapping the edge of the open
furniture door with your hand.
q Tighten the nuts on the adjusting rail. This will fix the
side alignment of the door.
q Screw on the lower brackets (Installation kit).
Predrill holes in the furniture door!
The lower bracket fixes the side position of the door.
1. Loosen the screw.
2. Check the side position of the door.
3. Screw in the wooden screw.
4. Tighten the screw.
5. Put the cover on the brackets.
