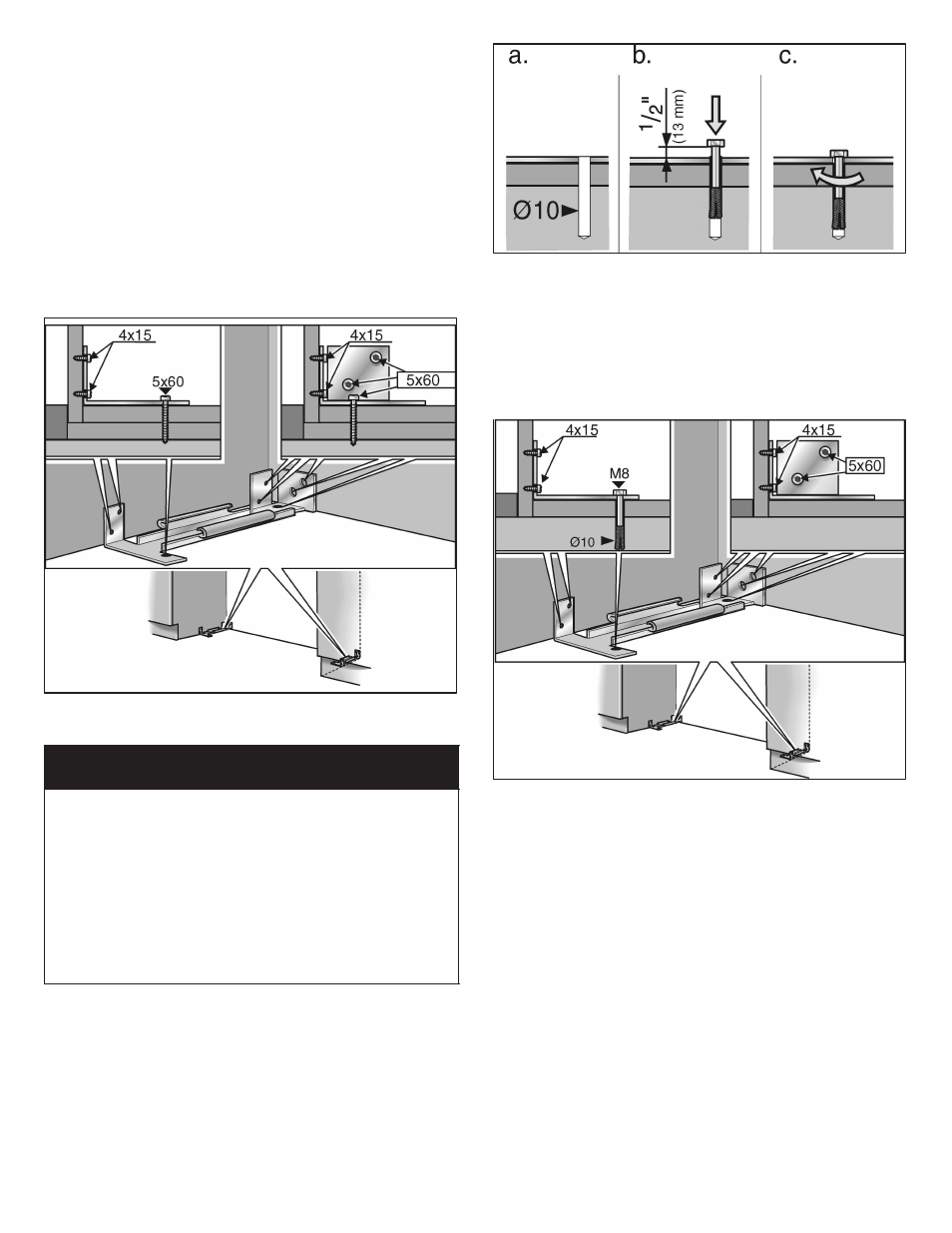

Wood floor application
Use the (5 x 60 mm) and (4 x 15 mm) wooden screws
provided.
q Drill pilot holes:
1
/
8
" (3 mm) for the (5 x 60 mm) wooden screws
5
/
64
" (2 mm) for the (4 x 15 mm) wooden screws
Being certain the screws penetrate through
the flooring and into the wall plate a minimum
of
3
/
4
" (19 mm).
q Attach the antiĆtipĆbracket completely. Be sure
screws hold tight.
Concrete floor applications
d
CAUTION
d
Always wear safety glasses and other necessary
protective devices or apparel when installing or
working with anchors ć risk of injury!
Not recommended for use in lightĆweight masonry
material such as block or brick.
Not recommended for use in new concrete which has
not had time to cure.
Do not use core drills to drill holes for this anchor.
Use concrete anchor M8 and M8 srew. Additional use
the (5x60 mm) and (4x15 mm) wooden screws
provided.
q Drill a 10 mm diameter hole any depth exceeding
the minimum embedment. Use the provided drill.
q Clean hole or continue drilling additional depth.
q Manually insert the screw into the wall plug until the
screw begins to resist.
q Knock the wall plug and screw into the hole until the
screw head is approx. ½" (13 mm) from the antiĆtip
bracket.
q Tighten the screw.
