18. Preparing the furniture doors
! IMPORTANT NOTE !
When performing any work on the furniture doors,
always observe the following:
- Always screw into the best loadĆbearing material
of the furniture door.
- Never screw into fillers, decorative strips or similar.
- Select a screw length which is always shorter than
the thickness of the furniture front.
- To prevent damage, protect surfaces of the
furniture doors during installation.
The total weight of the furniture front must not
exceed the following values:
18"
37 lbs / 17 kg
24" 50 lbs / 23 kg
30" 64 lbs / 29 kg
The furniture fronts are attached to the appliance door
by means of fitting parts on the appliance. These fitting
parts allow the furniture door to be adjusted precisely
and attached securely to the appliance.

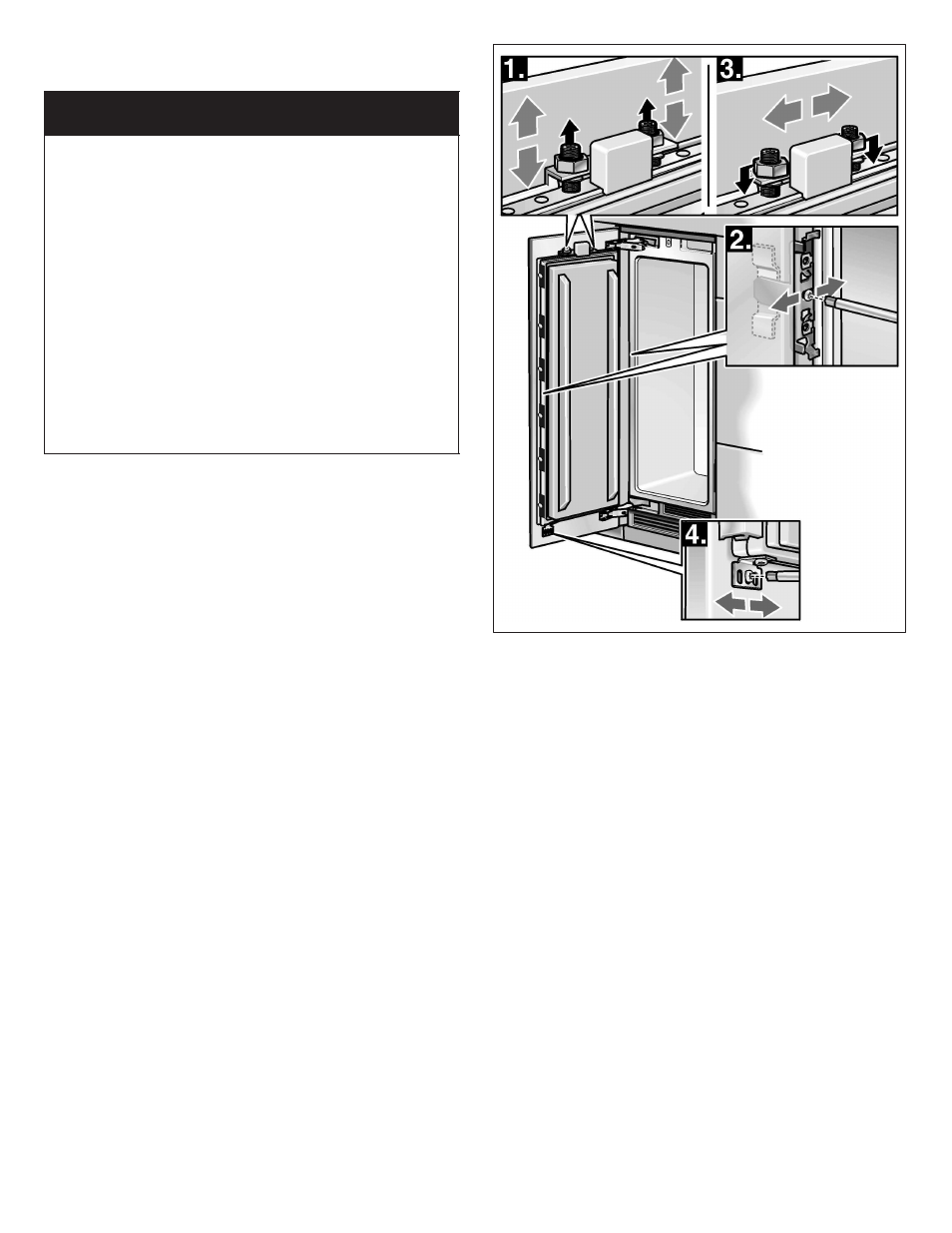

Function of different parts:
1. Double threaded bolt on the adjusting rail:
for vertical adjustment of the furniture door.
2. Side brackets:
for adjusting the depth of the furniture front.
3. Nuts on the double threaded bolt:
for securing the furniture front to prevent lateral
movement.
4. Lower brackets:
for securing the furniture front to prevent lateral
movement.
