Install main bolt install u-bracket – GrimmSpeed License Plate Relocation User Manual
Page 2
3.

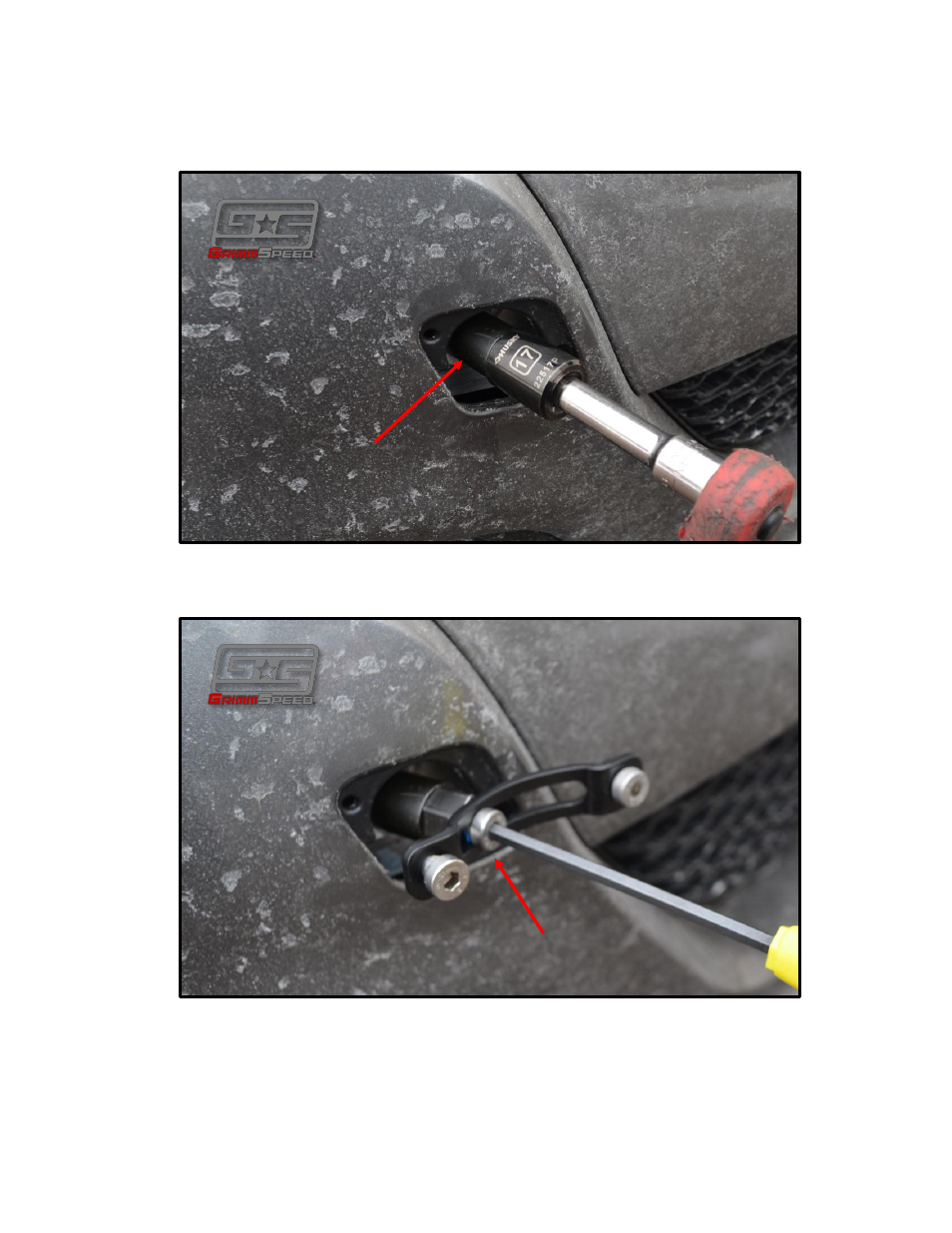

Using a 17mm socket or wrench, install and tighten the main bolt to
approximately 45ft-lbs.
4.
Using the M6x25 bolt (preloaded with blue Loctite), fasten the u-bracket to
the main bolt. Keep this loose, as you’ll adjust it in a bit.
5.
Now, using the other two bolts (pictured above) and your 5mm hex wrench,
install the license plate bracket. You have a ton of adjustability here, so select
the orientation that you prefer and tighten both bolts. Lastly, make any
angular adjustment that you desire and tighten the center bolt.
Install Main Bolt
Install u-bracket
