GrimmSpeed Heat Shield User Manual
Page 3
G
rimm
s
peed
3
3.

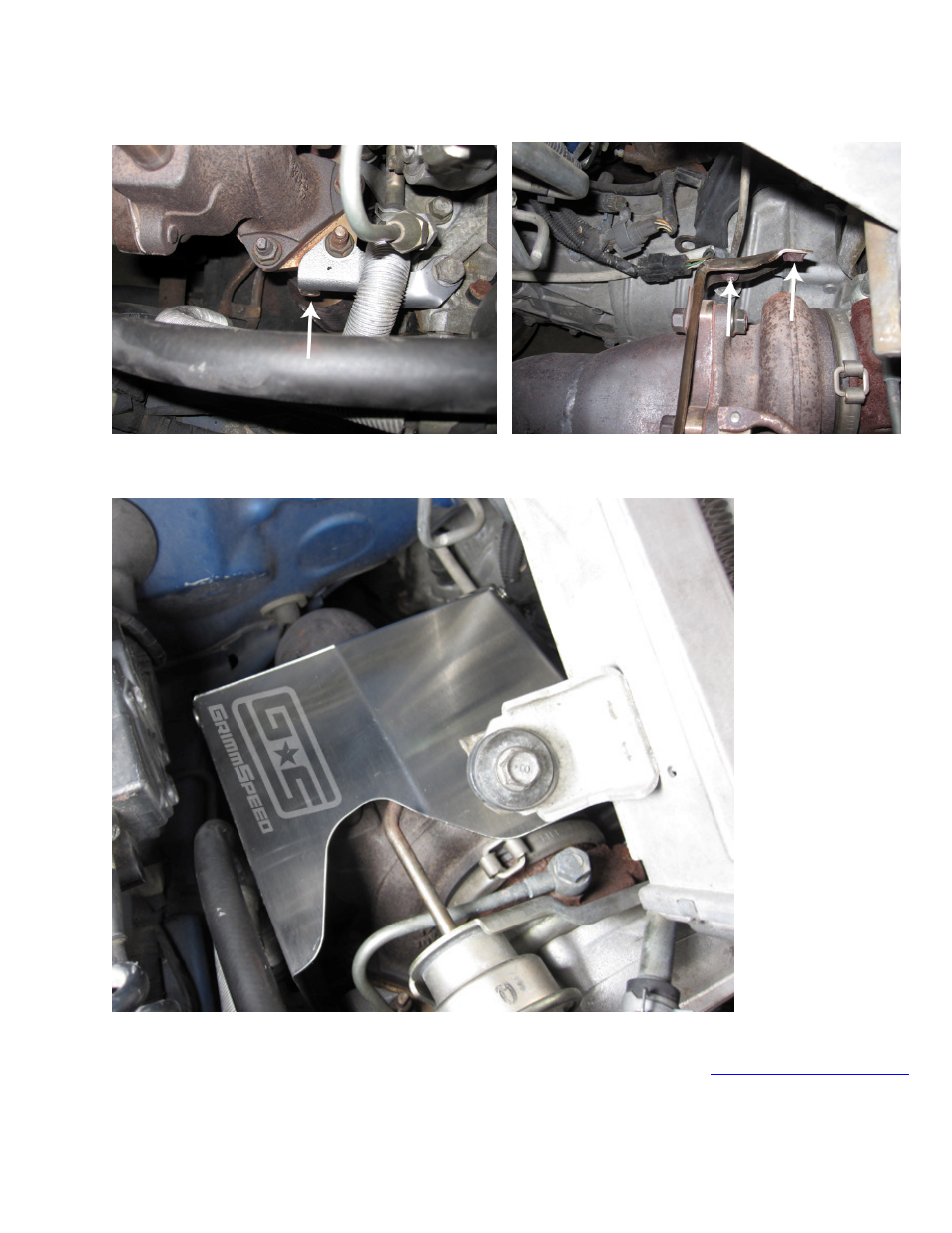

Install GrimmSpeed Heat Shield by utilizing the (1) Up Pipe mount bracket bolt hole and (2)
Downpipe bracket bolt holes.
NOTE: Use caution to not scratch the heat shield when sliding
into spot. Use the supplied M6 bolts to secure GrimmSpeed Turbo Heat Shield to the brackets.
Torque M6 bolts to 9.6ft-lbs.
4.
Finished product should look like this. Congrats!
Please contact us if you have any questions during installation. 612.379.0000 or
.
AIM: GrimmSpd / MSN: [email protected]
Thank you for your purchase!
