Short standoff washer short bolt – GrimmSpeed BRZ/FR-S Pulley Cover User Manual
Page 4

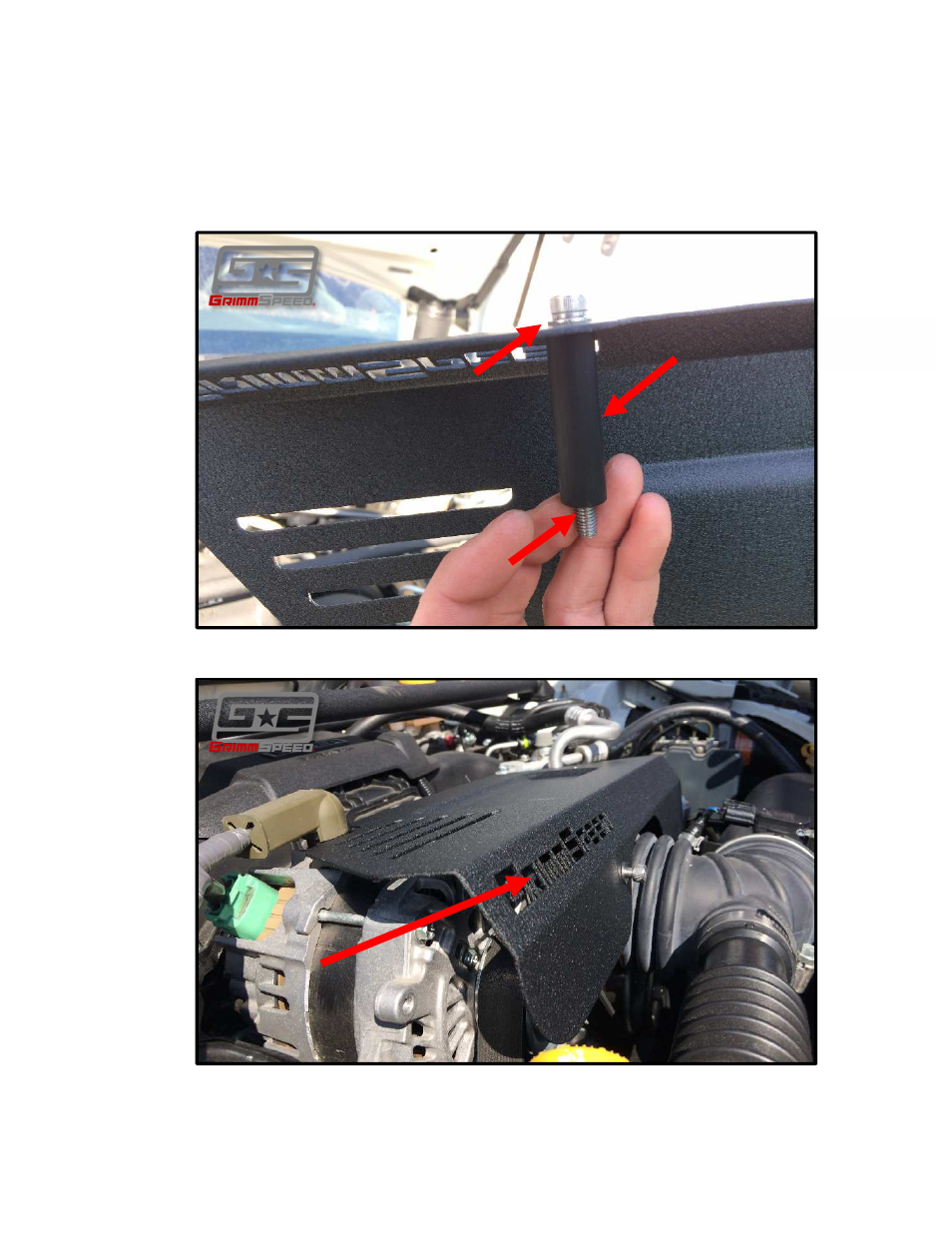

5.
Now prep the passenger side of the cover with the shorter bolt, shorter
standoff and washer as shown. Then, get the bolt started threading into your
alternator. Take care not to cross thread the bolt.
Bolt
Small Washer
Cover
Short Standoff
Alternator
Figure 5: Install on alternator
Figure 6: Install pulley cover on a/c compressor
Short standoff
Washer
Short Bolt
