Hook j-bolt here – GrimmSpeed Battery Tie Down User Manual
Page 2

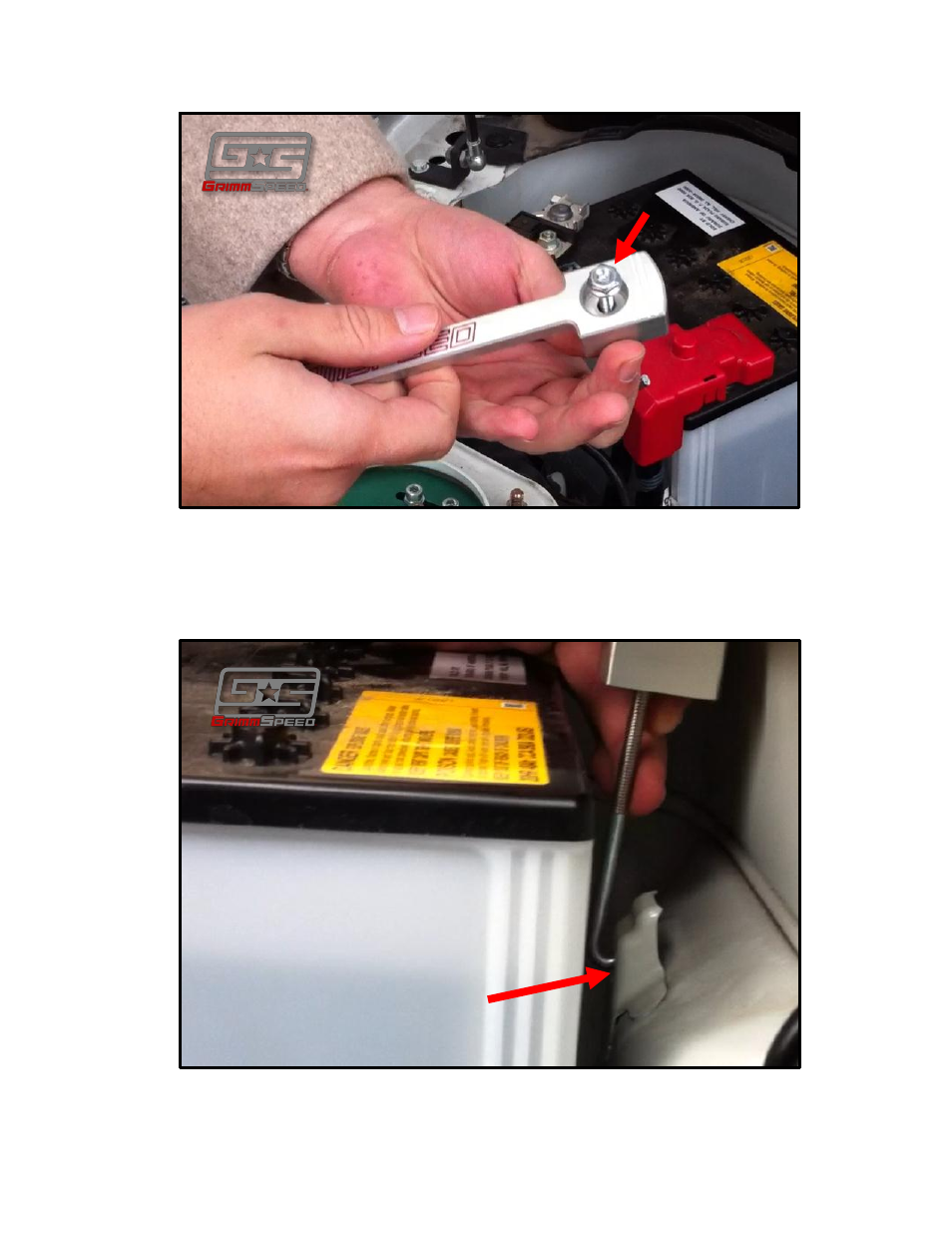

Figure 1: Loosely attach rear j-bolt to the tie down.
4.
Next, maneuver the tie down so that you’re able to hook the j-bolt onto its
proper spot near the firewall. Once you’ve done that, set the tie down flat
across the battery and snug up the nut but DO NOT TIGHTEN YET.
Figure 2: Hook rear j-bolt
Hook j-bolt here
